Exmark LAZER Z Parts Manual

14

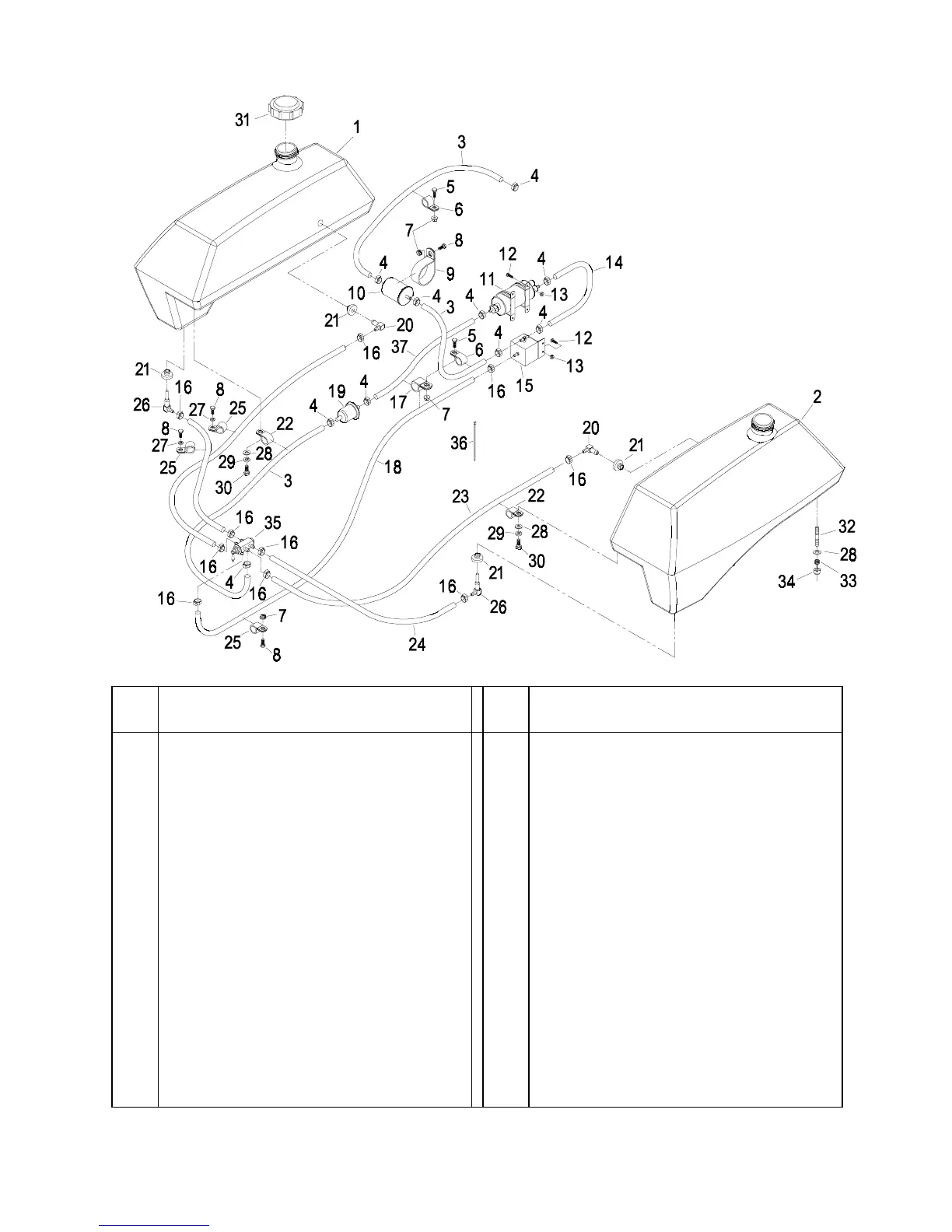

KOHLER 26 HP EFI FUEL GROUP
Ref.
No.
Qty.
Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1 643244 Tank, EFI Fuel (RH) ............... 1
20
643172 Elbow, 90
°
............................... 2
2
643243 Tank, EFI Fuel (LH)................ 1
21
513645 Bushing, Fuel Valve ................ 4
3
643238 Fuel line, .31 x 24” ................. 3
22
633396 Clip, Loom ............................... 2
4
▲
643277 Clamp, .31 I.D. Fuel Hose ...... 10
23
633348 Fuel Line.................................. 2
5
800252 Screw, Cap 1/4 –20 x 3/4 ....... 2
24
543456 Fuel Line.................................. 2
6
603727 Clip, Loom .56 ........................ 2
25
513762 Clip, loom .50 .......................... 3
7
809012 Nut, Whizlock 1/4-20 .............. 4
26
543277 Elbow, 90
°
w/strainer............... 2
8
800251 Screw, Cap 1/4 –20 x 5/8 ....... 3
27
805004 Washer, lock 1/4 ..................... 2
9
643241 Clip, Loom 2.13 ..................... 1
28
805257 Washer, flat SAE 5/16.............10
10
!
Kohler
P/N 24 050 03 Fuel Filter (large) . 1
29
805005 Washer, lock 5/16 hvy............. 4
11
!
Kohler
P/N 24 393 20 Fuel Pump ........... 1
30
800271 Screw, 5/16-18 x 3/4 ............... 4
12
803028 Screw, Machine #10-24 x 5/8 6
31
513508 Cap, Fuel Tank........................ 2
13
804252 Nut, Nyloc #10-24................... 6
32
"
633023 Stud, Fuel Tank....................... 6
14
643236 Fuel Line, .31 x 10.................. 1
33
633349 Spring, Fuel Tank.................... 6
15
!
Kohler
P/N 24 403 12 Fuel Regulator..... 1
34
804267 Nut, Thin Nyloc 5/16-18........... 6
16
▲
643293 Clamp, .25” ............................ 10 35
643234 Valve, Fuel Dual Flow ............. 1
17
643312 Clip, loom................................ 1
36
303287 Plastic Tie (small..................... 1
18
643235 Fuel line, .31 x 40”.................. 1
37
643239 Fuel line, .31 x 28.0................. 1
19
99-9403 Fuel Filter................................ 1
"
Use Prolock, Retaining type (Part No. 840023), .5cc tube on stud threads going into the tank.
!
Refer to Engine Owner’s Manual (Fuel Filter
Must
be 40 Micron or smaller).
▲
Clamps require special pliers P/N 643394 (Oetiker P/N 14100118 or Kohler P/N 2445505) for installation.
