Exmark QUEST User Manual

Maintenance

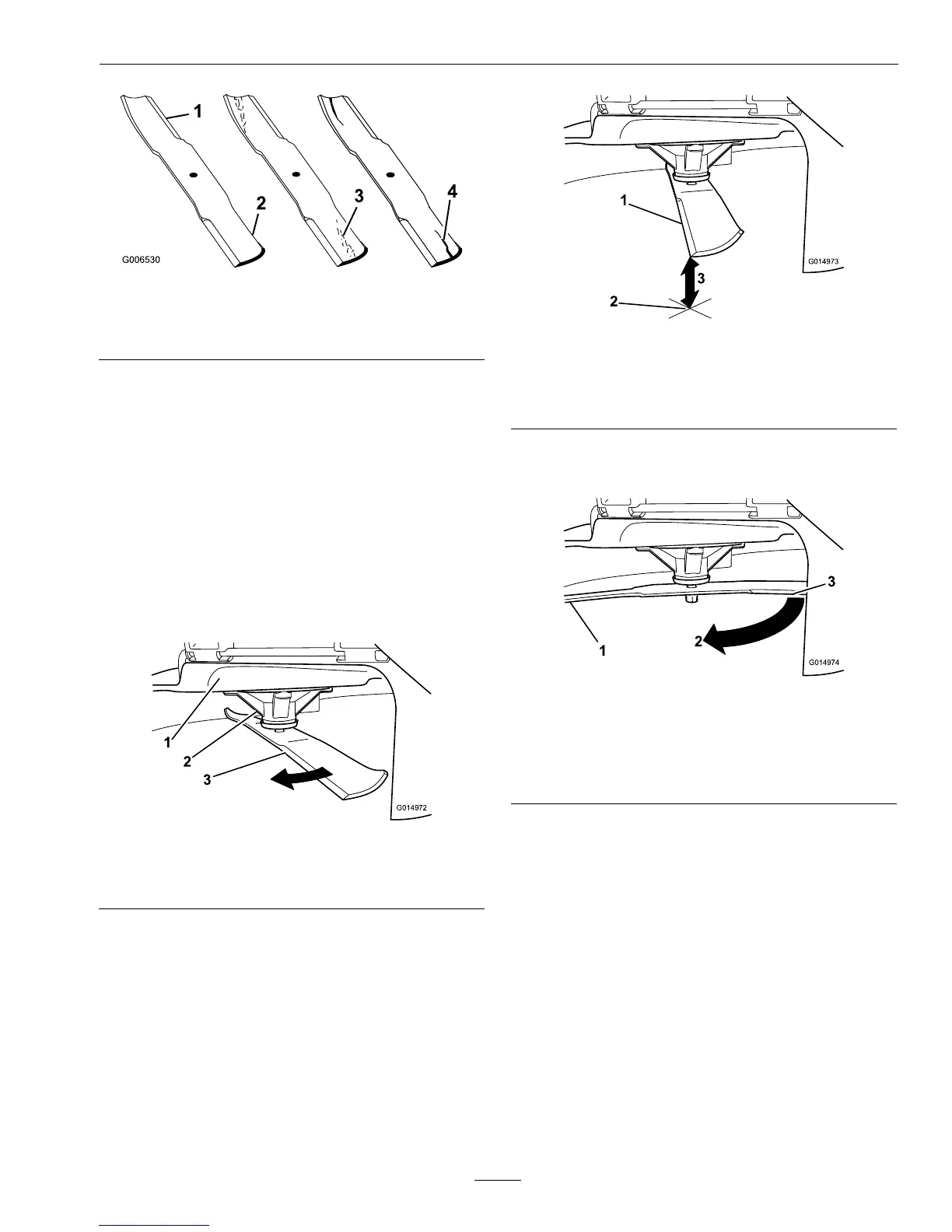

Figure39
1.Cuttingedge3.Wear/slotforming
2.Curvedarea
4.Damage
CheckingforBentBlades
Note:Themachinemustbeonalevelsurfacefor
thefollowingprocedure.
1.Raisethemowerdecktothehighestheight-of-cut
position;alsoconsideredthe'transport'position.
2.Whilewearingthicklypaddedglovesorother
adequatehandprotectionslowlyrotatebladeto
bemeasureintoapositionthatallowseffective
measurementofthedistancebetweenthecutting
edgeandthelevelsurfacethemachineison.
G014972
1
2
3
Figure40
1.Deck3.Blade
2.Spindlehousing
3.Measurefromthetipofthebladetotheat
surfacehere.
G014973
1
2
3
Figure41
1.Blade,inpositionformeasuring
2.Levelsurface
3.Measureddistancebetweenbladeandsurface(A)
4.Rotatethesameblade180degreessothatthe
opposingcuttingedgeisnowinthesameposition.
G014974
1
2
3
Figure42
1.Blade,sidepreviouslymeasured
2.Measurementpositionusedpreviously
3.Opposingsideofbladebeingmovedintomeasurement
position
5.Measurefromthetipofthebladetotheat
surfacehere.Thevarianceshouldbenomore
than1/8inch(3mm).
43

Exmark QUEST Specifications

General

Transmission	Hydrostatic
Drive System	2WD
Deck Construction	Fabricated
Fuel Type	Gasoline
Type	Zero-Turn
Deck Material	Steel
Warranty	3 years
