19
Elen
R

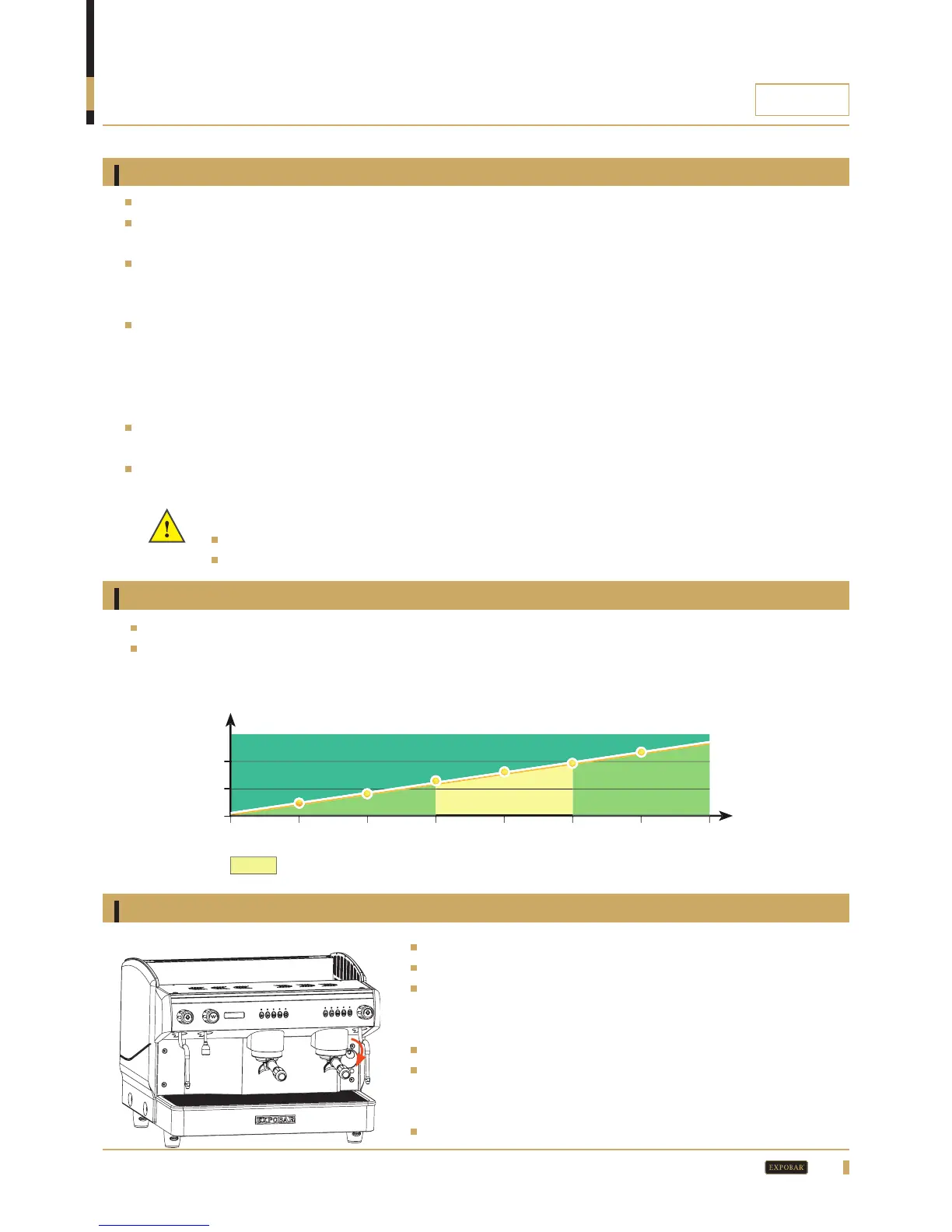

INSTALLATION AND START UP
Pressure and temperature
Standard pressure and temperature
Fig. 01
Relationship between boiler pressure and temperature
Water connection
110
115
120
125
0.7 0.8 0.9 1.0 1.1 1.2
Important:
Only use the hoses supplied with the machine. Never reuse damaged hoses.
Ensure that the drainage tube is not twisted and that it is below the level of the drain cup.
Starting the machine
BAR
O
C
Connecting the machine to the domestic water supply must be performed by a qualied person.
Purge at least 20 liters of water from the domestic water supply before connecting the machine to it to ush
out any debris that may be in the plumbing sytem that would otherwise accumulate inside the boilers.
The domestic plumbing system should be tted with a brass 3/8” NPT male pipe tting and an in-
line shut-off valve. Connect the 180cm water inlet hose included with the machine to the domestic
water supply and tighten the line ttings with a wrench to 15 ft. lbs. / 20N-m.
Only use safe drinking water with a hardness rating between 5ºfH and 8ºfH (French hardness
degrees) or 20 to 32 ppm (parts per million as calcium). If the hardness value is below this limit,
corrosion of hydraulic components is likely. If the value is higher, lime-scaling inside the boiler will
occur. In both cases, the proper function of the machine and quality and taste of the coffee will be
negatively affected.
If necessary, connect the machine to a water softener to reduce water hardness using the exible
55cm hose included in the accessory box.
Connect one end of the corrugated drain tube to the drain cup in the machine, connect the other
end to the plumbing drainage system in the installation area.
Boiler pressure is directly controlled by water temperature (g. 01).
This machine is tted with a pressure gauge that displays the boiler pressure, if the machine is equipped
with a digital display it will also indicate water temperature.
Open the machine’s water supply valve.
Turn on the main power switch.
Press a drink button at the control panel on each group, wait until
water comes out continuously from each of them. This ensures
that the heat exchangers in the machine are being correctly lled.
Open the steam lever to release the air trapped in the boiler.
The red lamp indicates that the boiler is heating. The lamp
switches off automatically when the machine reaches operating
temperature.
The machine is then ready to use.
