Elen 2Gr 3 Boilers 400 V 3N~

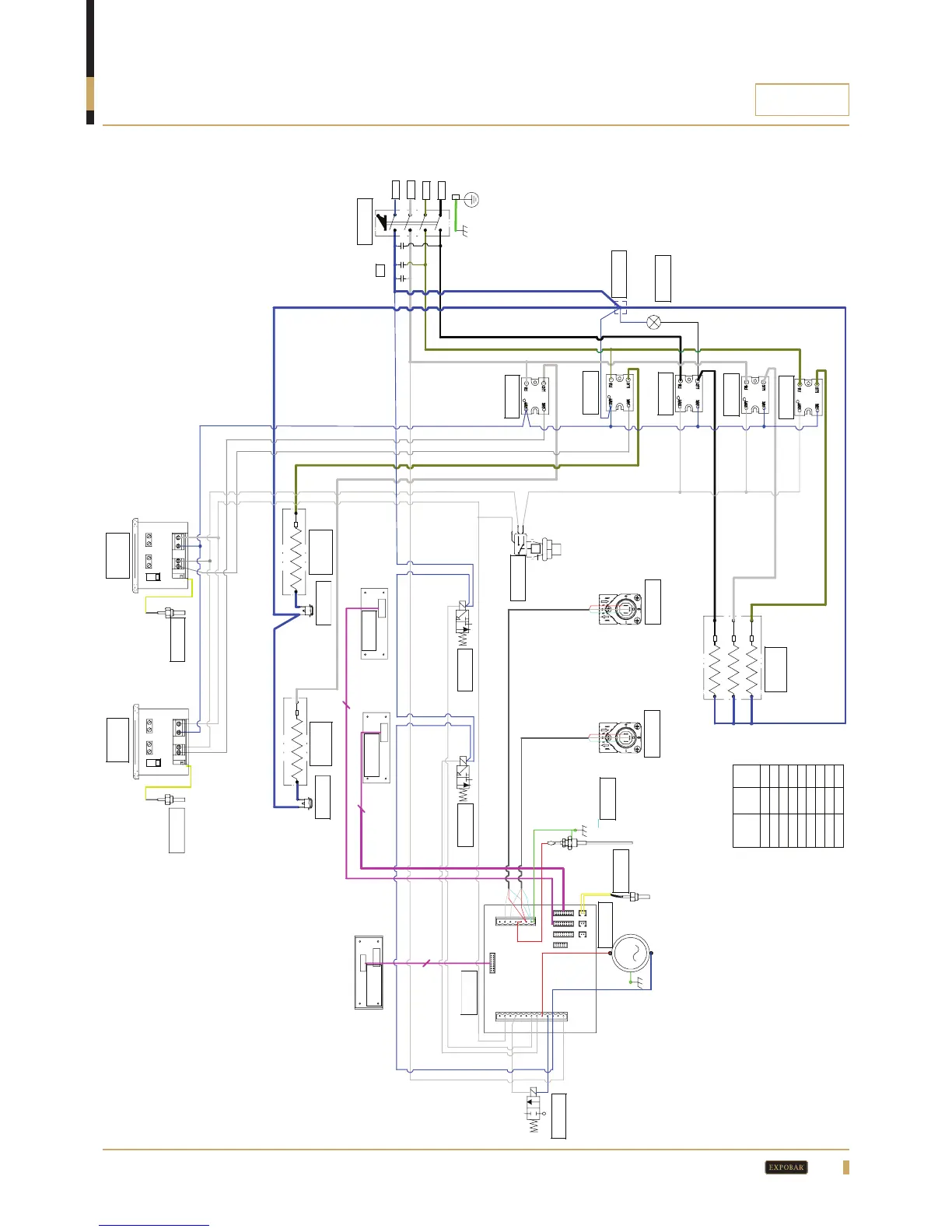

ELECTRICAL DIAgRAMS
Gnd
+(Vcc)
SLiv
OUT 1 OUT 2
OUT 3
DISPLAY LCD
Cn 1
PUMP
EVFILL Heating-ON/OFF
R.E.1 1200W-230V Ref. 38012000
R.E.2 1200W-230V Ref. 38012000
R.E. 4500W-230V REF. 38045000
T.D.2 230V Ref. 10200125
P. REF. 60901001
S.T.C.
Ref. 60100076
S.T.C.
Ref. 60100076
Out
+
STEAM-AUX
GR 3GR 2GR 1
EVTEA
Cn 3
T.D.1. 230V Ref. 10200125
B
Temp .
So nd a
CN1
M1
ALIM.
F (N )
N (F)
M2
F(N)
B
Temp .Sonda
CN1
M1
ALIM.
F (N)
N (F)
M2
F(N)
T.S.1
REF.10200110
T.S.2
REF.10200110
Ev.G.1 Ref. 60000112
Ev.G.2 Ref. 60000112
C.E.L. Ref. 60100034
S.T.C.
Ref. 60100076
Ev.C.C. REF. 60000105
C.V.1 REF. 60100045
S.N. Ref. 60100040
C.V. 2 REF. 60100045
M. REF. 60000016
R.E. A. 1
(90-280V)
REF.60800100
R.E.A. 2
(90-280V)
REF.60800100
R.E.A. 3
(90-280V)
REF.60800100
R.E.A. 4
(90-280V)
REF.60800100
R.E.A. 5
(90-280V)
REF.60800100
P
P.R.P. REF. 60000008
t°
t°
R.C. REF. *45000030
8x2
I.G REF. 60900010
L1 - R
L2 - S L3 - T G
N - O
8x2
8x2
COMMON
MAIN
SUPPLY
M
EVGR1
EVGR2 EVGR3
B.G.2
Ref. 60100300
B.G. 1 Ref. 60100300
D.G. Ref. 60100301
MODELS STANDARD V.A
(HIGH
GROUP)
INTERN N N. ELEGANCE NN MEGACREM NN MARKUS NN SILVER NN G10SERIE SERIE ELEN NN ROSETTA NN DIAMANTN N
S.E
Thermal-link
Thermal-link
Thermal-link
