Elen Mini Control 1Gr
ELECTRICAL DIAgRAMS

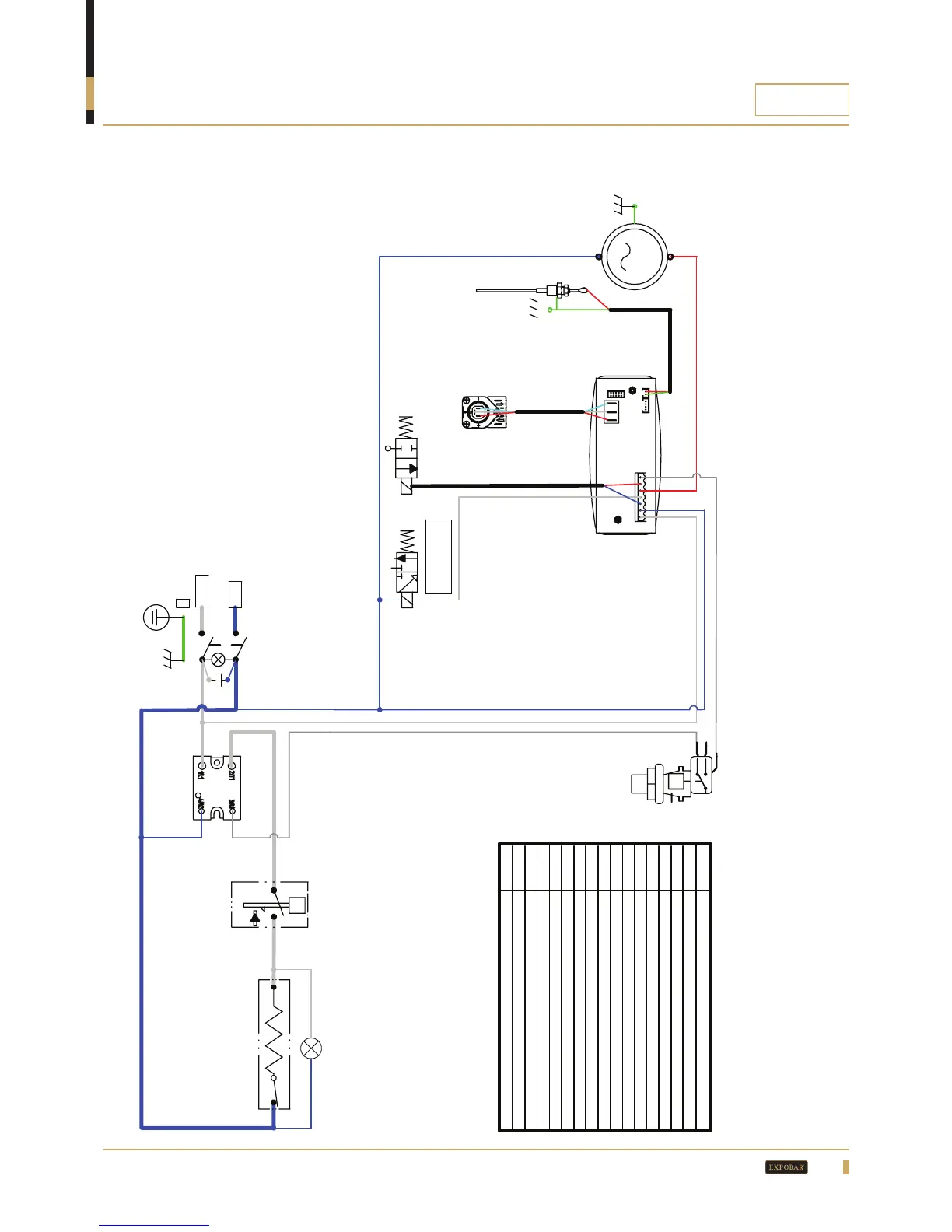

MINI CONTROL 1GR WITH ''PIRIS'' PRESSURE OPERATED SWITCH
S:\Drawing Files\esquemas electricos\1D5\MINI 1D5\e-56_LVI_MINICONTROL 1GR_230V 1N_2015_CAPAS.dft
M.
PN: C
60000016
Ev.G.1
PN: C60000112
S.N
PN: C60100040
C.V.1
PN: C
60100045
Ev.C.C.
PN: C60000100
M
P
P.R.P. PN: C60000008
ABREV. DESCRIPTION
C.E.s 1D5 SWITCHBOARD WITH LEVEL PROBE C.V. FLOWMETER Ev.C.C. BOILER WATER INLET SOLENOID VALVE Ev.G.GROUP SOLENOID VALVE G. GROUND I.L. LUMINOUS POWER SWITCH (ROCKER TYPE) L. PHASE LINE M. MOTOR-ROTARY VANE PUMP N. NEUTRAL P. HEATING ELEMENT SIGNAL DEVICE P.R.PONE POLE PRESSURE OPERATED SWITCH R.E. HEATING ELEMENT R.E.A. SOLID STATE RELAY AC S.E EMI SUPPRESSION CAPACI TOR S.N. WATER LEVEL PROBE T.S.1P THERMAL CUT-OUT 1 POLE SWITCH BULB
R.E.A.
(90-280V)
PN: C
60800100
I.L. PN: C60900035
N - O
L1 - R
G
C.E.s.1
PN: C60100310
S.E
PN: C60103025
P. PN: C60901001
R.E.
(2500W.)
PN: C38025001
t°
t°
T.S.1P PN: C10200141
