Extra 300/SC - Page 165

CHAPTER 25
PAGE 4
MAINTENANCE MANUAL EXTRA 300/SC
PAGE DATE: 16. June 2008

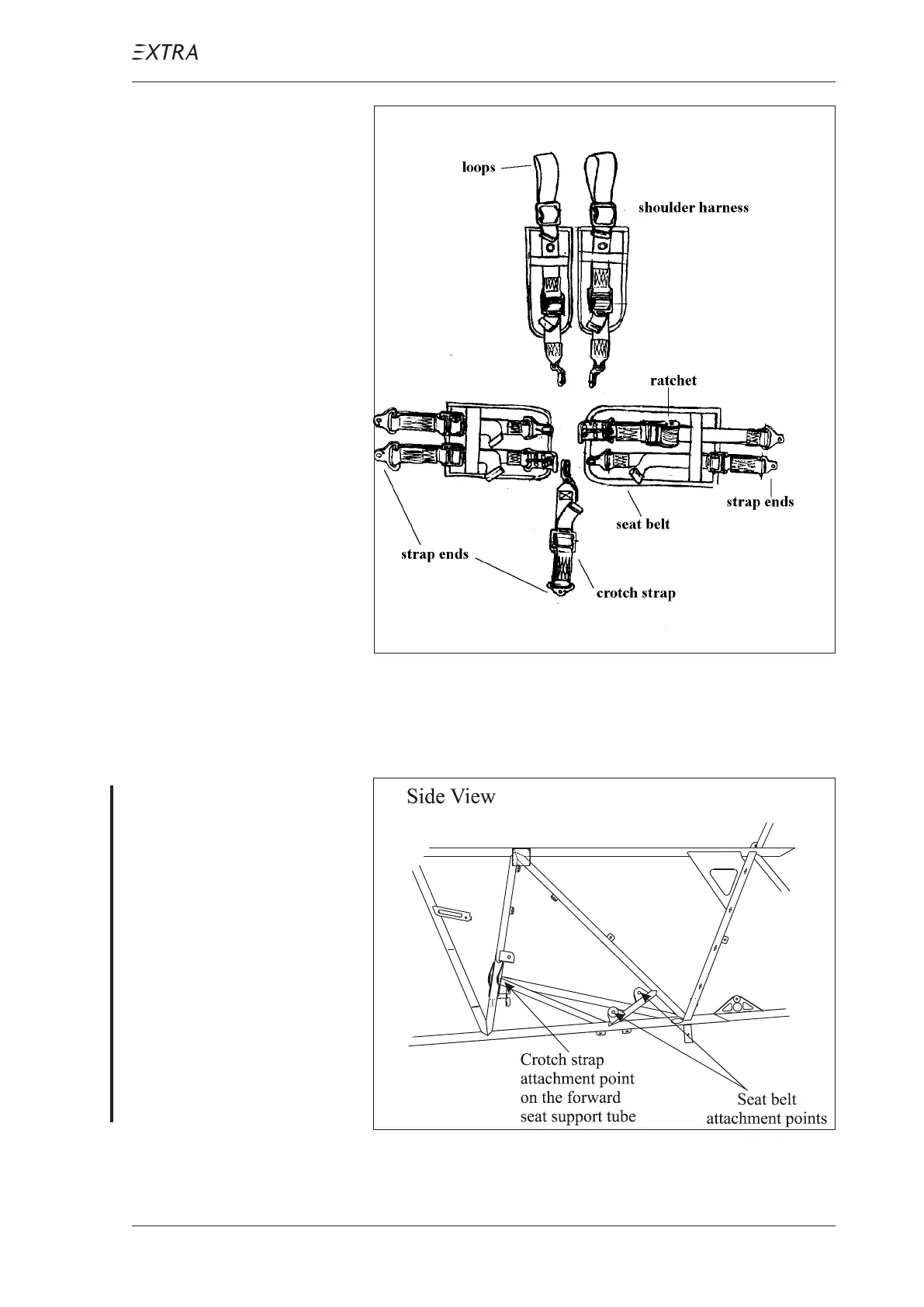

Strap Assembly
Figure 1
Each strap end is fitted with LN 9037-0820 bolts, LN9348-
08 stop nuts and DIN 125 M8 washers to its own fitting at the
steel frame (refer to Figure 2).
Seat Belt Attachment
Figure 2
FLIGHT COMPARTMENT
Seat Belts
PAGE DATE: 29. May 2009
