CHAPTER 25
PAGE 5
MAINTENANCE MANUAL EXTRA 300/SC
PAGE DATE: 16. June 2008

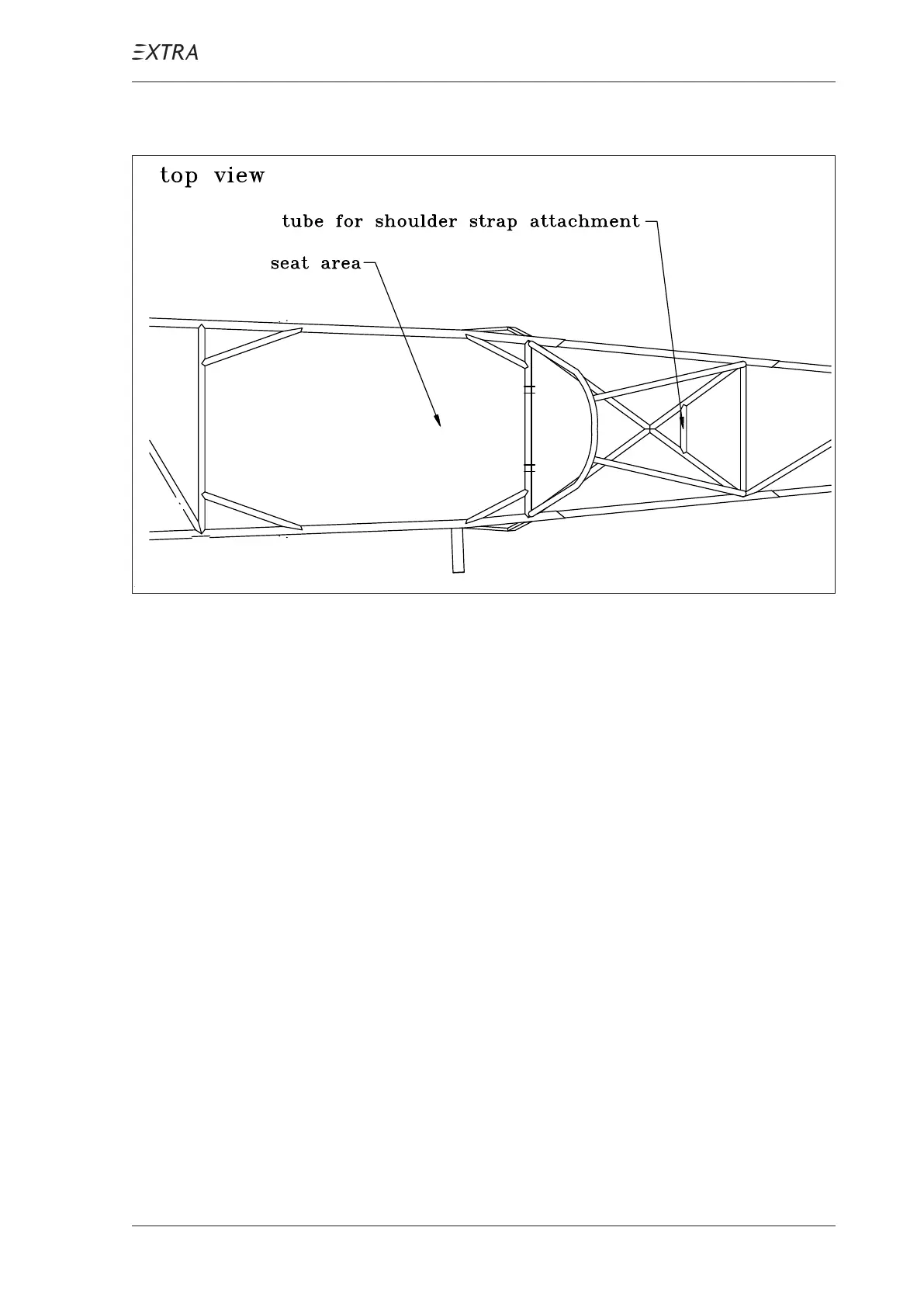

The shoulder strap loops are attached to a horizontal steel
tube as shown in Figure 3.
Shoulder Strap Attachment
Figure 3
25-10-04 Aircraft Document Bag
The aircraft document bag is mounted with three AN 526 C
1032 R8 bolts and DIN 9021 M5x20 washers on the right
inside of the cockpit frame.
FLIGHT COMPARTMENT
Seat Belts
