CHAPTER 27
PAGE 6
MAINTENANCE MANUAL EXTRA 300/SC
PAGE DATE: 1. August 2014
27-00-01 Control Rods
Removal/Installation
Refer to Figure 8. All control rods are attached to the control
levers in the same way with LN bolts, washers and self-
locking nuts. The control rods inside the wing are intercon-
nected by ground bonding leads fastened to the rod ends by
additional nuts. So the rod ends have to be disassembled,
when the ground bonding leads shall be disconnected. In this
case also refer to the Length Adjustment Paragraph of this
Chapter.
1 Remove the respective access panels.
N O T E In case of removal of the control rod connected to the
control stick also observe the instructions given in the
Chapters 27-00-03.
2 Remove the M6 attachment bolts (1).
3 Remove the control rod.
4 Reverse procedure to install the control rod. Replace the
selflocking nuts.
Lengths
The measurements given in this chapter are presettings refer
to the distances between the centers of the rod end bearings
(see Figure 5.

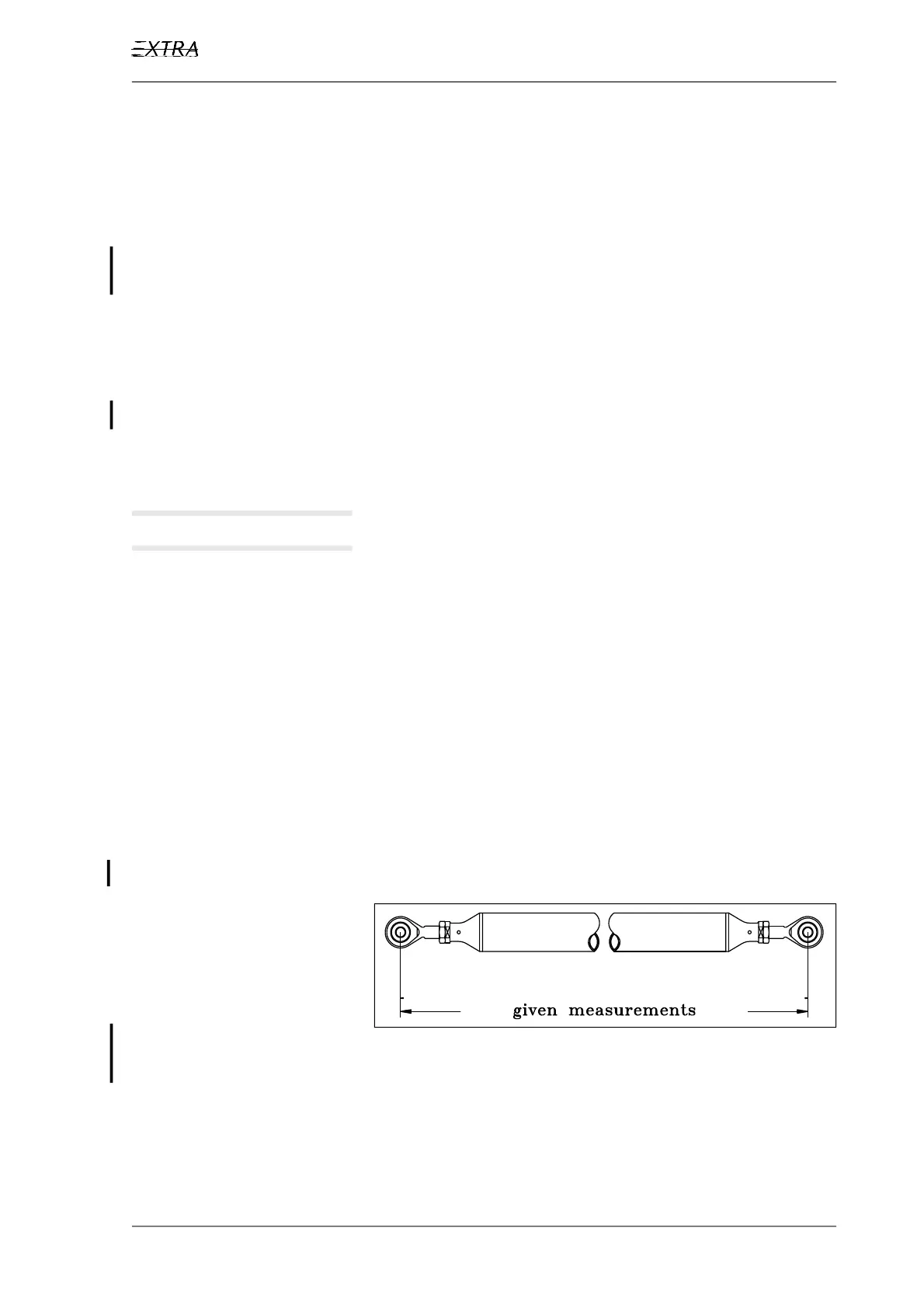

Figure 5 Control Rod Measurement
Refer to the following Figure 6 for identification of the
control rods.
