CHAPTER 27
PAGE 10
MAINTENANCE MANUAL EXTRA 300/SC
PAGE DATE: 1. August 2014

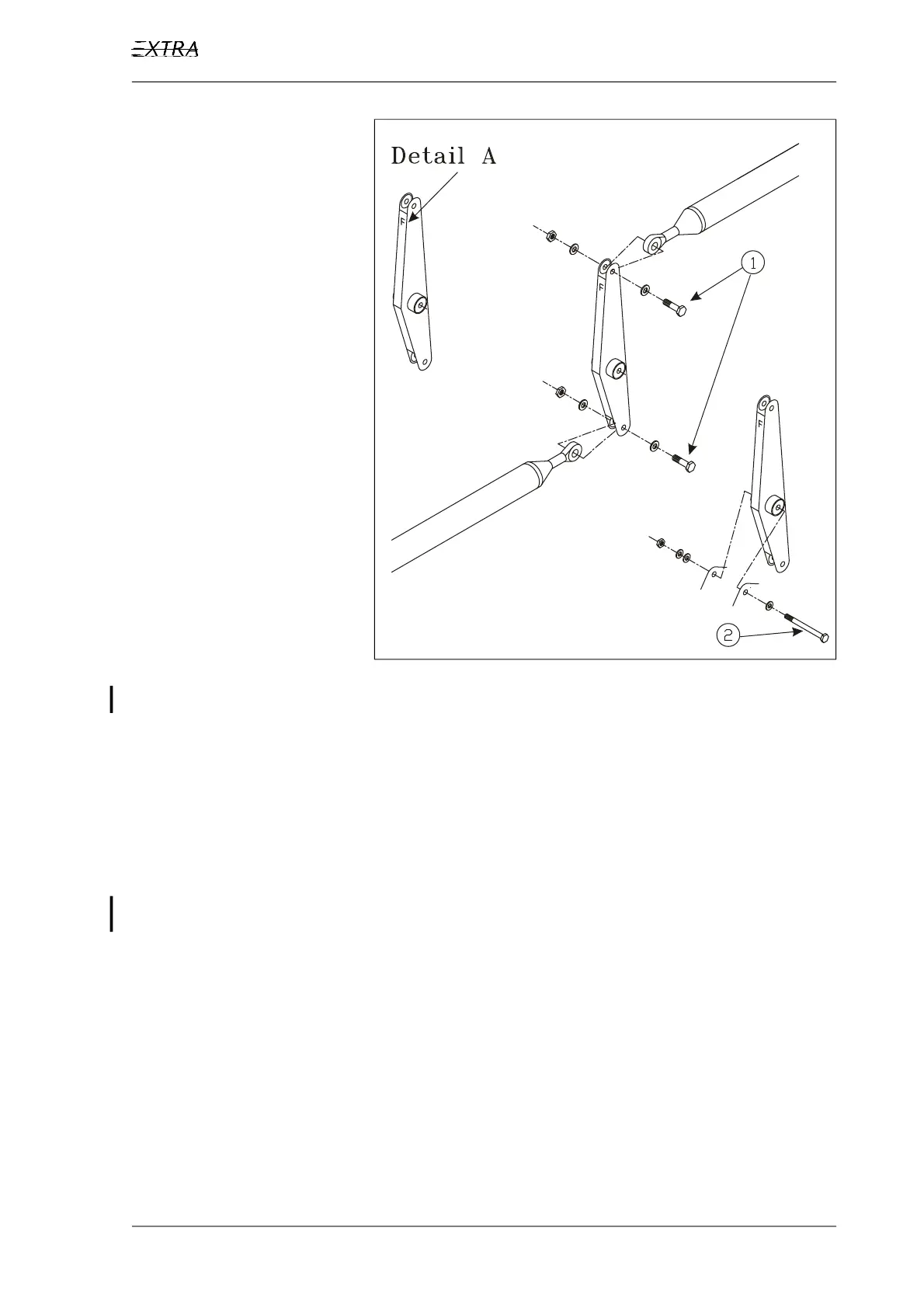

Figure 8 Control Levers and Rods Removal/Installation
27-00-03 Control Stick
Removal/Installation
Refer to Figure 9.
1 Remove the leather protection cuff.
2 Disconnect the electrical wiring.
3 Remove the control stick attachment bolt (1).
4 Disconnect the control stick from the control rod per Chap-
ter 27-00-01. Use the control stick to move the control rod
attachment bolt to the mounting hole area (2).
