CHAPTER 28
PAGE 19
MAINTENANCE MANUAL EXTRA 300/SC
PAGE DATE: 1. August 2014

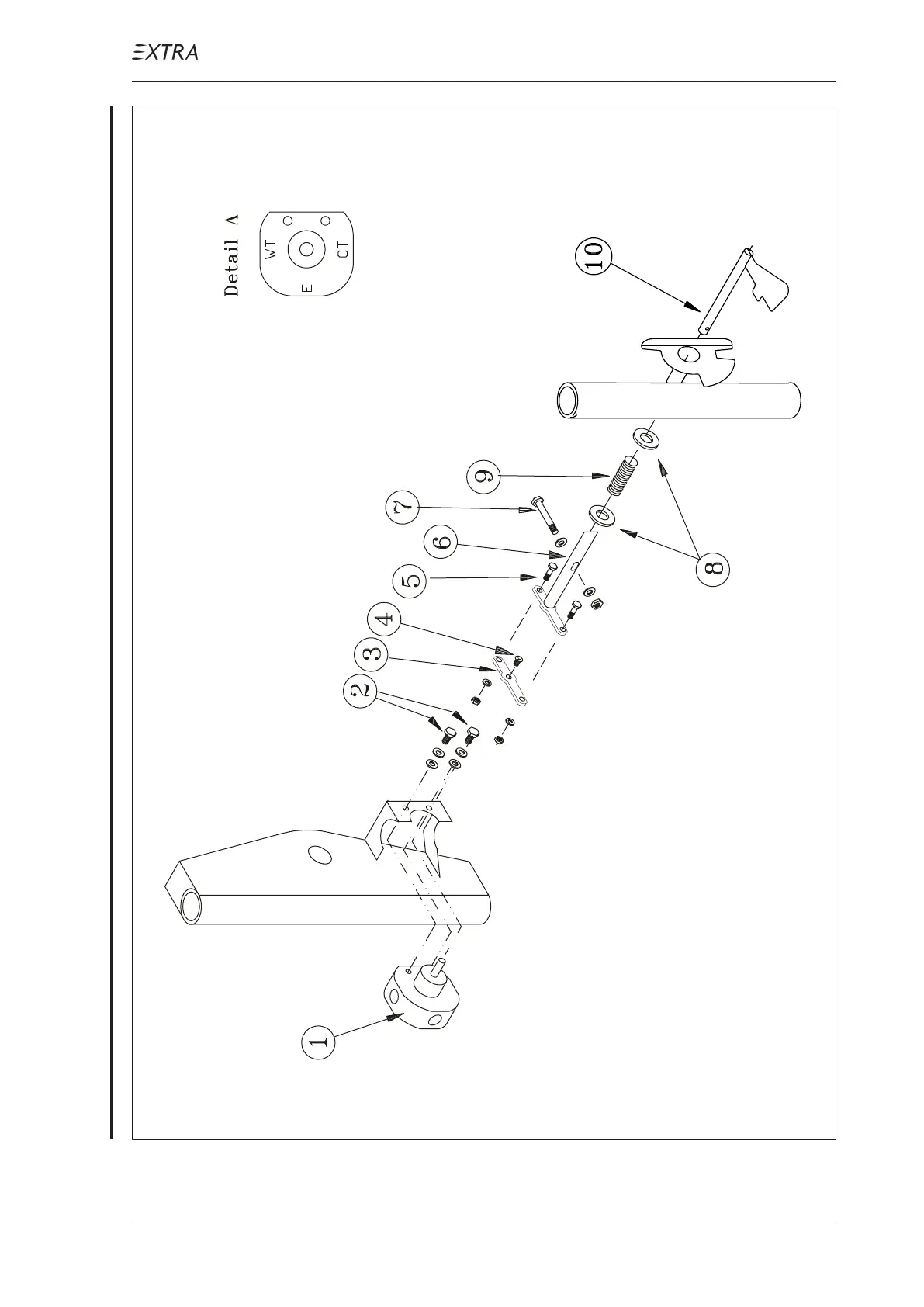

Figure 8 Fuel Selector Valve and Control Rod
MAINTENANCE PRACTICES
Legend:
1 selector valve
2 selector valve attachment bolts
3 control handle
4 control handle attachment screw
5 control rod attachment bolt
6 control rod
7 control rod handle attachment bolts
8washers
9spring
10 control rod handle
