CHAPTER 73
PAGE 3
MAINTENANCE MANUAL EXTRA 300SC
PAGE DATE: 1. August 2014
73-20-00 CONTROLLING
73-20-10 Throttle
Refer to Figure 1. The throttle is controlled by means of the
throttle control lever located on the left side of the cockpit.
The throttle control lever transfers its movements to the
throttle by means of the throttle control cable. This cable is
routed on the left side of the fuselage, penetrates the firewall
and is then routed centrally below the exhaust muffler to the
throttle. In the engine compartment this cable is covered
with a fire sleeve. The cable is attached to the fuselage using
clamp blocks at its ends, self-clinching plastic tiedown
straps in the cockpit area, and a cushioned clamp at the
exhaust muffler. Rod ends at both terminals of the control
cable serve as a means for rigging. The fire wall penetration
is sealed with PRC-812 (Products Research & Chemical
Corp., USA) firewall sealant and covered with clamp sheets.

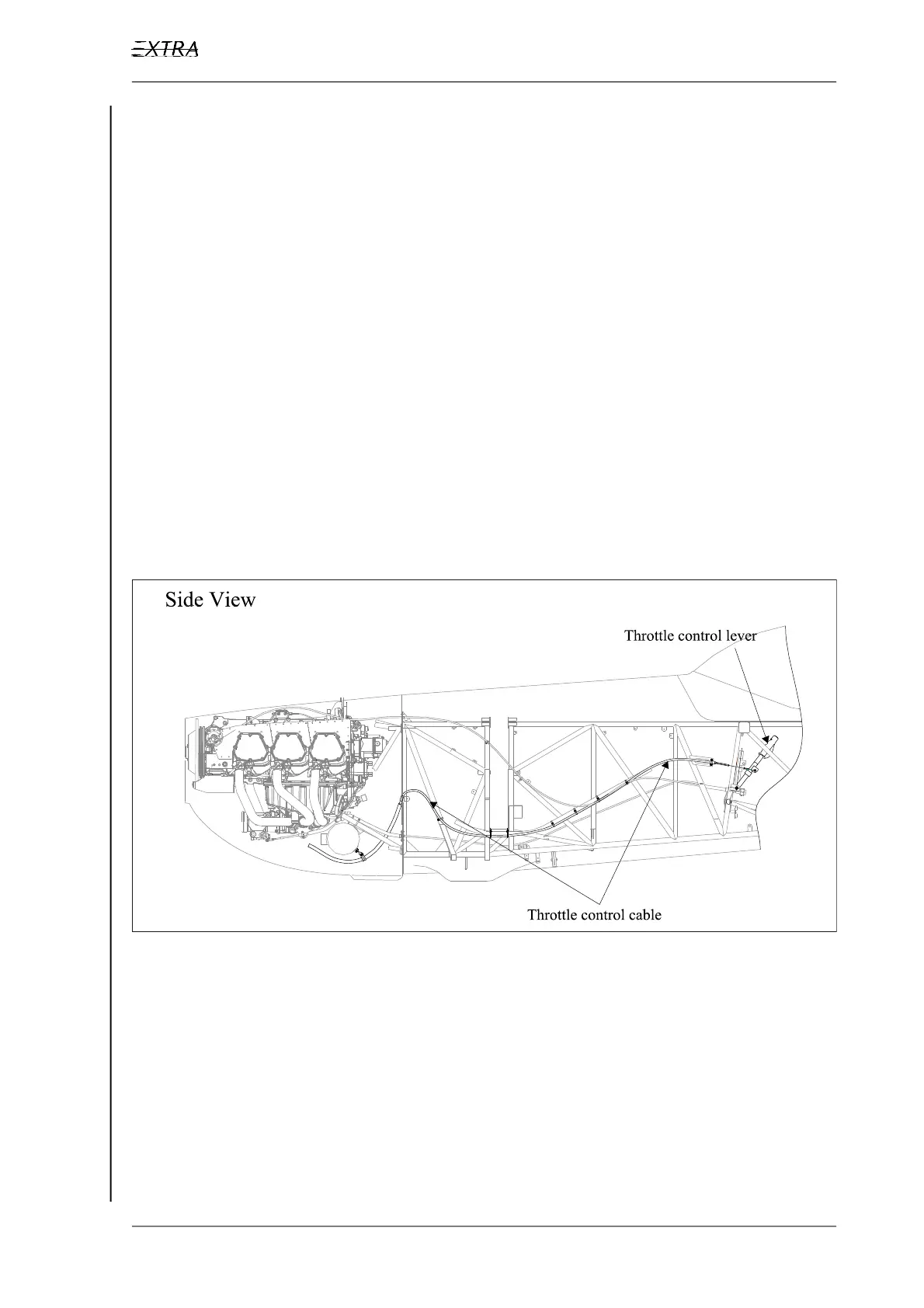

Figure 1 Throttle Control
