CHAPTER 73
PAGE 5
MAINTENANCE MANUAL EXTRA 300SC
PAGE DATE: 1. August 2014
15 Remove rod end counter nut and throttle control cable pro-
tective swivel and wiper seal.
16 Remove clamp block (1, Figure 3) attachment bolt(s).
17 Remove clamp block from the throttle control cable.
18 Pull complete throttle control cable aft to remove from air-
craft. Secure clamp sheets.
Installation
Refer to Figure 4, Sheet 1 or 2 depending on exhaust system
installed and Figure 3.
1 Install throttle control cable according to the prior marked
routing. Ensure distance between clamp sheet at the firewall
and clamp block is 705 mm (refer to figure 2) for standard
Gomolzig exhaust systems or 620 mm for optional Sky Dy-
namics or Chabord exhaust systems.

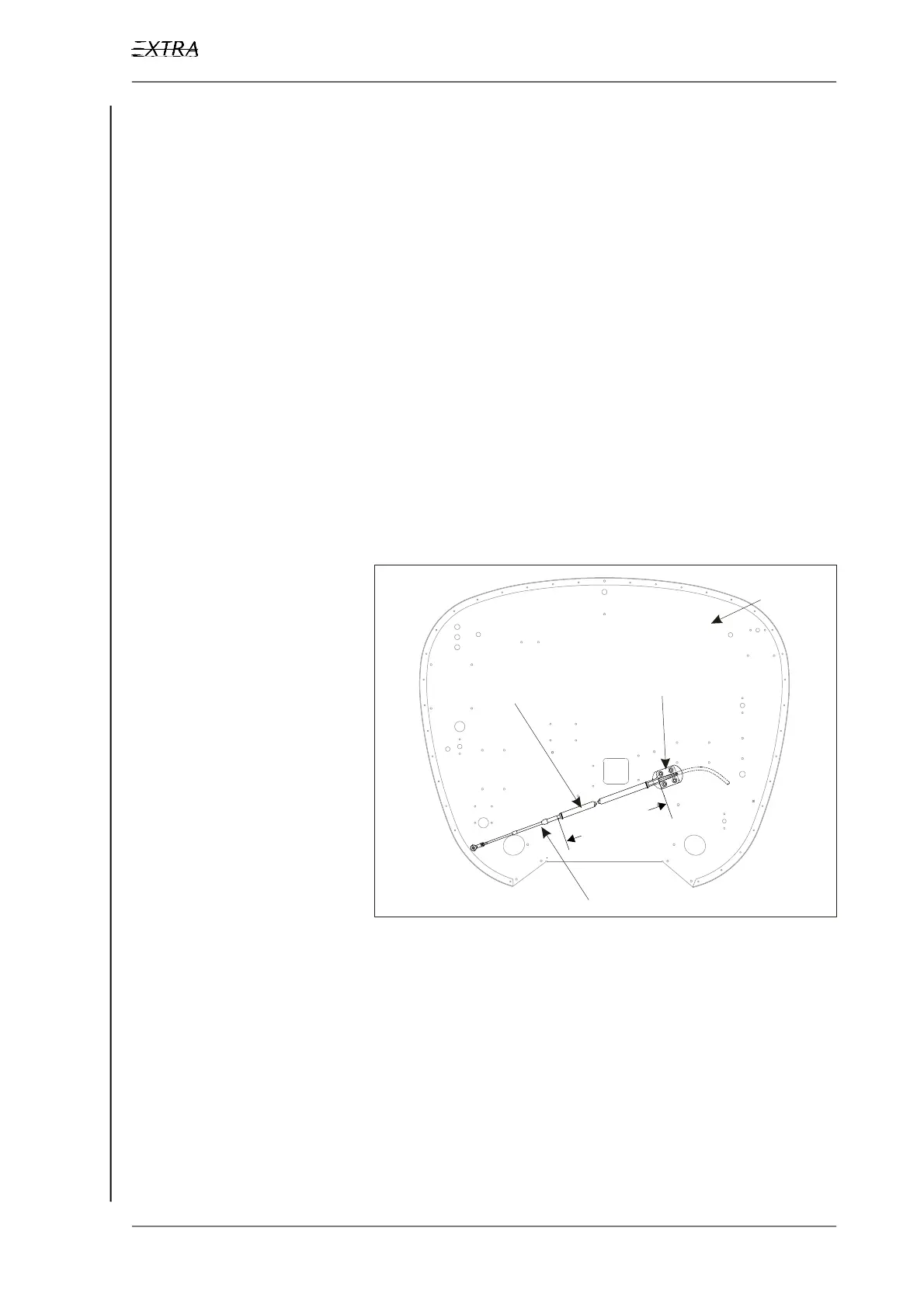

Front View
Firesleeve
7
0
5
m
m
(
6
2
0
m
m
Figure 2 Firesleeve Length
2 Renew the sealing of the firewall breakthrough at the en-
gine side of the firewall. Use PR-812 (Products Research
& Chemical Corp., USA) firewall sealant as outlined in
Chapter 20-10-10.
3 Let the sealant slightly cure before thightening the clamp
sheet attachment bolts. This will strengthen the clamping.
4 Install clamp sheets.
