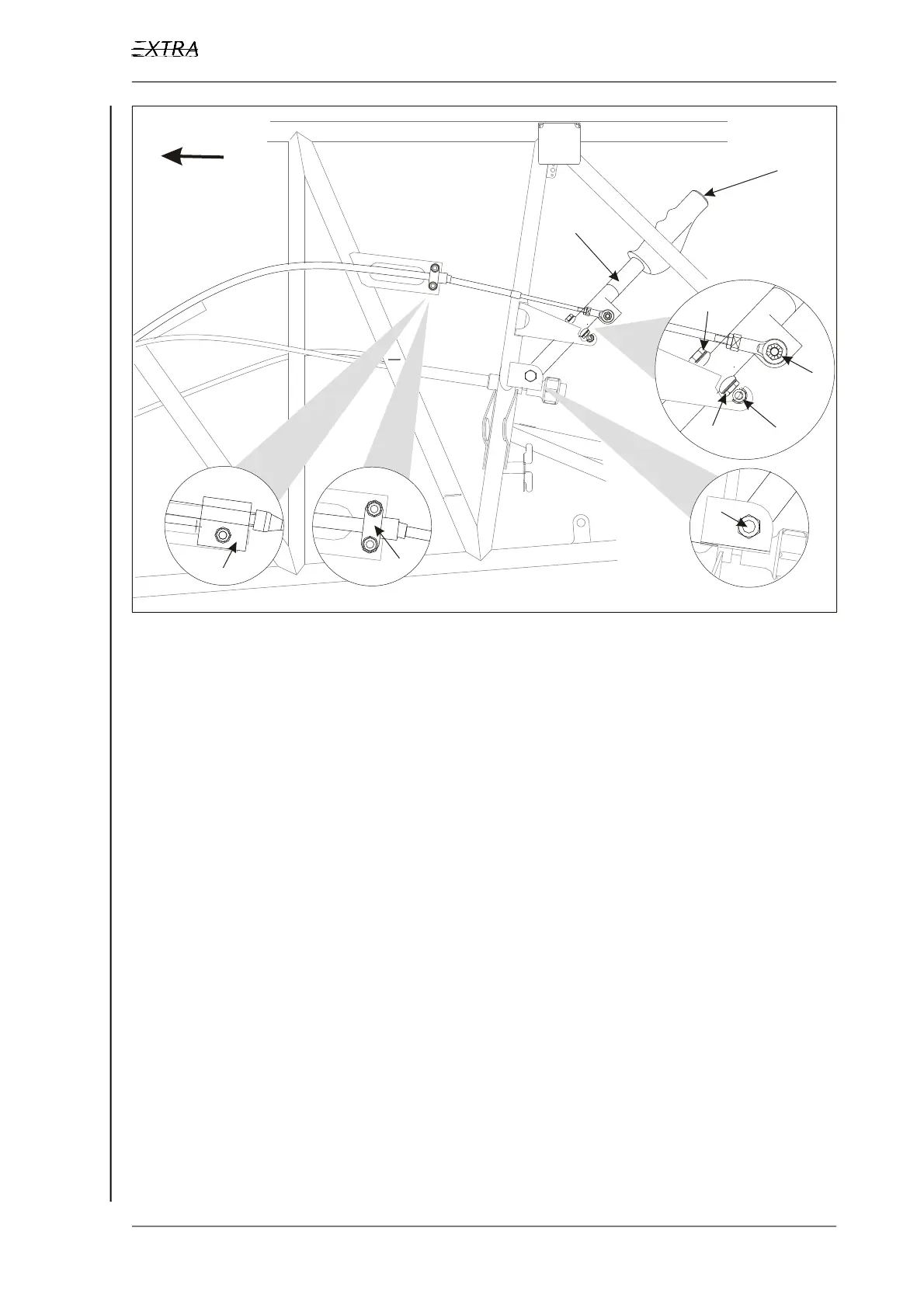

Figure 3, Sheet 2 Throttle Control Lever with Travel Stops
Removal
1 Ensure master switch is off.
2 Remove engine cowling per chapter 71.
3 Remove main fuselage cover per chapter 53.
4 Remove cotter pin, castle nut, washers and bolt (3, Figure
3) from the throttle control lever (4).
5 Pull the smoke switch (5) out of the throttle lever handle
and disconnect switch wiring.
6 Pull smoke switch wiring down from the throttle control
lever.
7 Disconnect throttle control lever attachment by removing
cotter pin, castle nut, washers and bolt (2). Remove throttle
control lever.
