CHAPTER 73
PAGE 10
MAINTENANCE MANUAL EXTRA 300SC
PAGE DATE: 1. August 2014
Installation
Install in reverse sequence of removal observing the follow-
ing items:
1 Thread the smoke switch (5, Figure 3) wiring through the
throttle control lever (4) before before positioning it.
2 Tighten the throttle control lever castle nut (2) slightly. En-
sure movability of control lever (4).
Rigging
Procedure with throttle control lever travel stops installed:
With the throttle control cable properly rigged, the throttle
actuator should hit its travel stops at both extremes prior to
the throttle control lever.
The spring-back is the small extra push that is needed for the
throttle control lever to hit its mechanical stops.
Refer to Figure 4, Sheet 1 or 2 depending on the exhaust
system installed and Figure 3, Sheet 2.
or
3
4
3

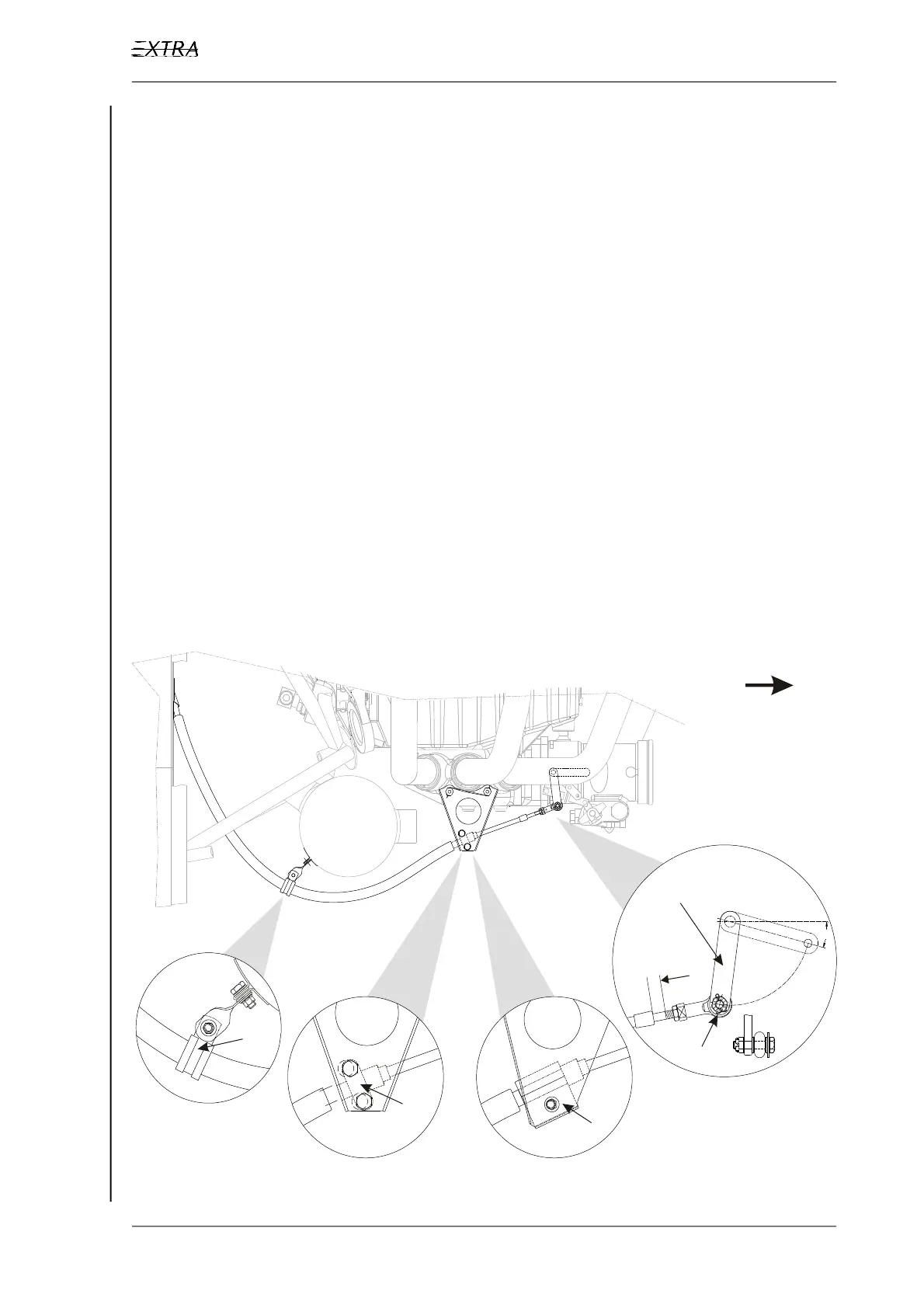

Figure 4, Sheet 1 Throttle Control Cable Rigging Standard Exhaust
