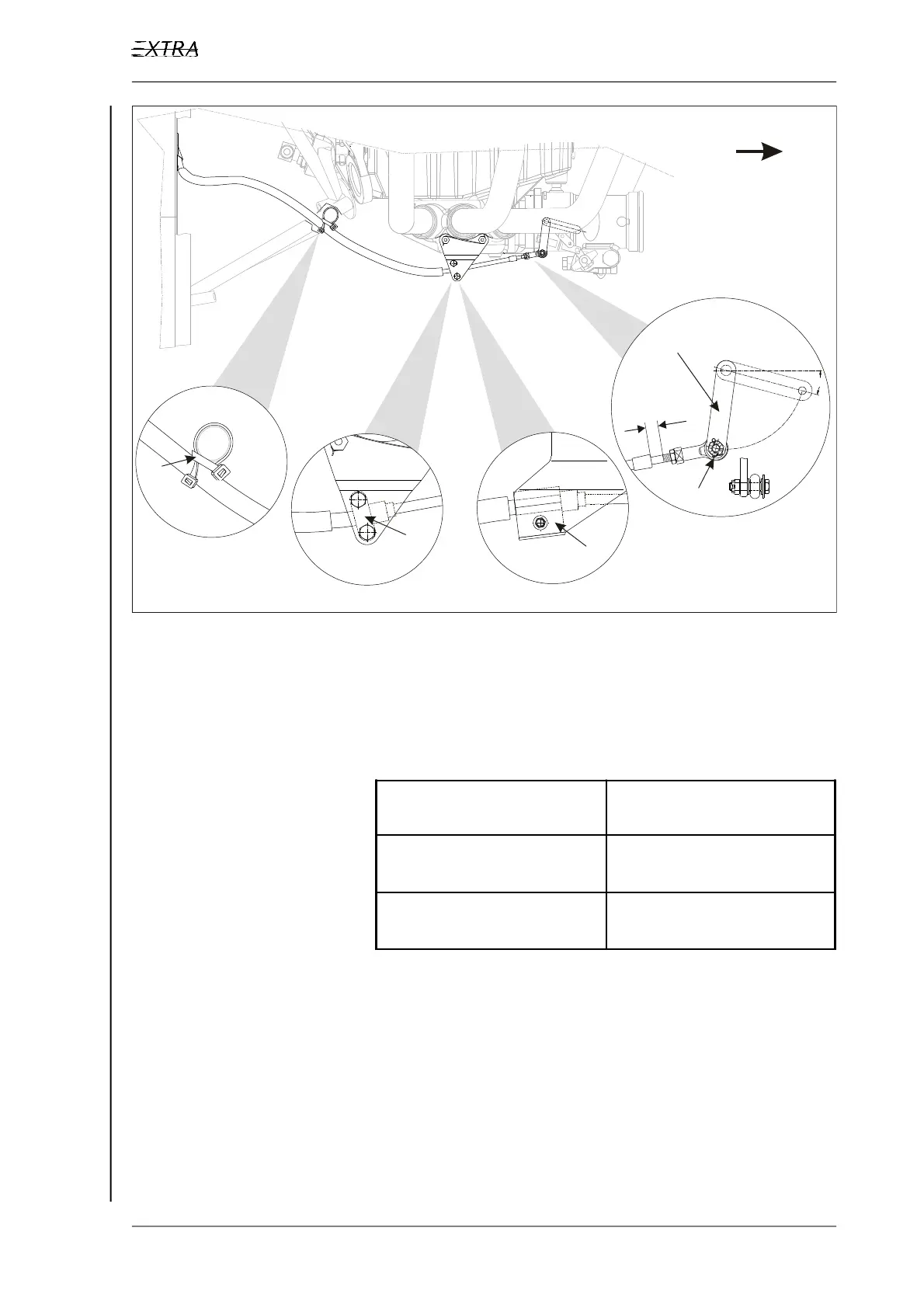

Figure 4, Sheet 2 Throttle Control Cable Rigging Option Exhaust
1 Place throttle actuator to full idle travel stop position.
2 Check distance "d" (refer to Figure 4) between protektive
wipper seal end and the beginning of the terminal thread
depending on the configuration as outlined in the following
table. Adjust rod end if value is out of limit.
Configuration Distance "d"
square clamp block
and any exhaust type
12 mm (± 1mm)
slim clamp block
and any exhaust type
8 mm (± 1mm)
3 Check throttle control lever is 1.5 mm from rear travel stop.
4 If it is not, adjust rear travel stop bolt by removing or adding
washer(s) and retightening.
5 Place throttle actuator to full WOT position.
6 Check throttle control lever is 1.5 mm from travel stop.
7 If it is not, adjust front travel stop bolt by removing or add-
ing washer(s)and retightening.
