Pilot’s Operating Handbook Section 901
EXTRA 500 Avidyne IFDs and CDU
Perspective Compass Rose

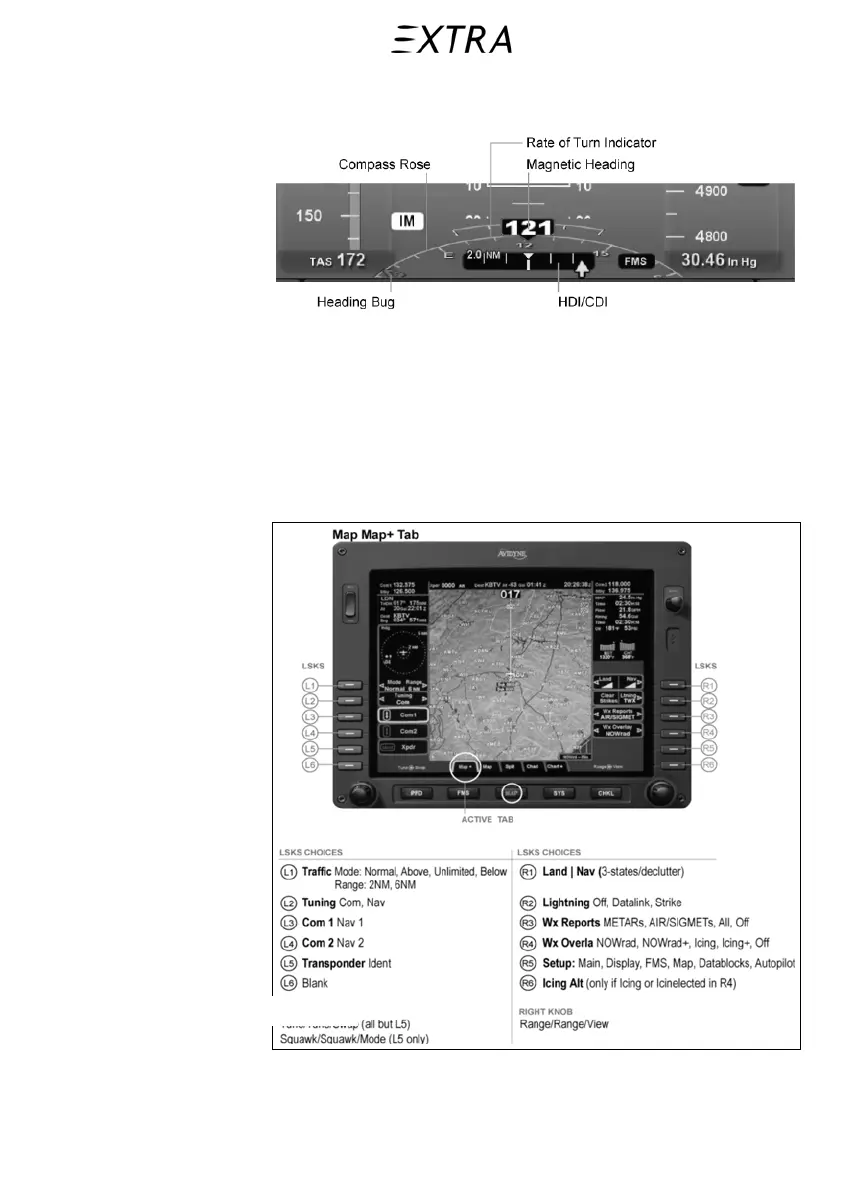

Figure 901-6
Perspective Compass Rose
Full format – the function selected (eg Map, Chart) takes up
the entire screen real estate. Associated line select keys can be
pilot selected to time out at preset times or never.
Datablock format – the left and right edges of the IFD are
populated with various pilot-selectable datablocks.
Figure 901-7
Datablock Format
26. January 2011
901-13
