P1P2
P3
P6 P4
P5
14

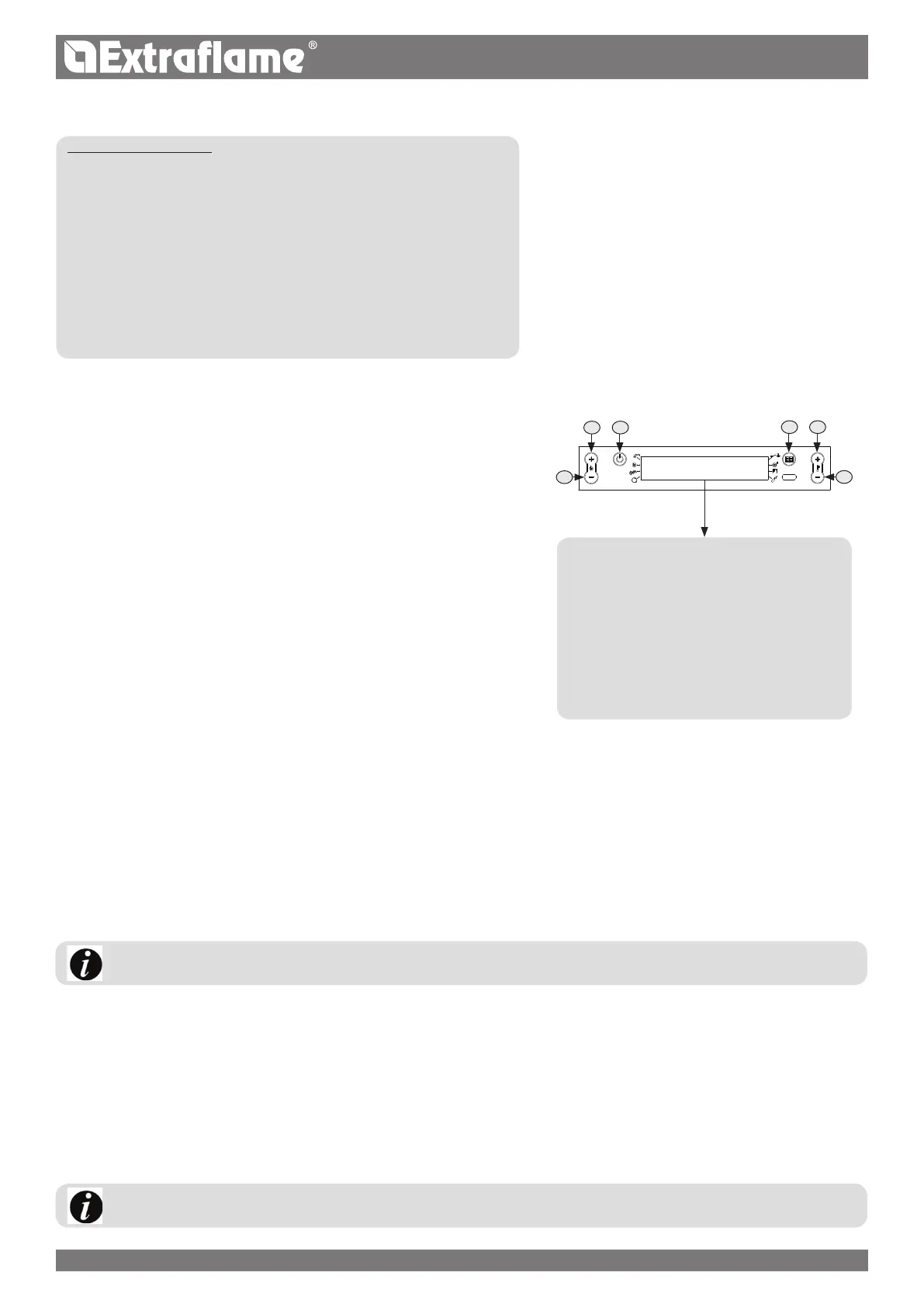

STOVE STATUS
It is possible to know the status of the stove at any time.
Press key 3 along with key 5.
The values will appear in order that concern the following variables:
MEANINGS:
Status 0 = Temperature of the fumes measured by the probe.
Status 1 = Auger time with reference to the programming
Status 2 = Fumes motor speed measured by the encoder
Status 3 = Status change timer
Status 4 = Temperature measured by the tank probe (where present)
Status 5 = Flow with reference to the debimeter mounted in the primary air inlet
Status 6 = Actual power of the stove (1-16)
Status 7 = Inlet air temperature measured by the debimeter
Status 8 = Mechanical Pressostat - normal working indicates "ON" - Problem occuring
Indicates "OFF"
Status 9 = Auger's errors number (where present)
Status A= Type of Modulation:
"0" No modulation, "1" room temperature,
"2" additional thermostat, "3" ue gas temperature,
"4" tank temperature, "5" motherboard temperature
STATUS
Status 0 = Flue gas temperature
Status 1 = Auger time
Status 2 = Fumes motor speed
Status 3 = Status change timer
Status 4 = Tank temperature
Status 5 = Flow
Status 6 = Actual power
Status 7 = Inlet air temperature
Status 8 = Mechanical Pressostat
Status 9 = Auger's errors number (where present)
Status A= Type of Modulation
VARIOUS CONTROLS
LOAD
This function allows to activate the pellet feeding motor reducer for continuous functioning: this allows
lling the pellet feeding spiral when it is empty to prevent ignition failures.
Controls procedure:
From the “o” status, press buttons 2 and 5 simultaneously until “LOAD” appears on display D1.
To interrupt the following procedure remove and re-apply current
FLOW RATE CONTROL
This procedure allows verifying the actual stove consumption at the various speeds. Through this function pellets are automatically fed for
60 minutes at the selected speed.
To activate this function, place yourself at one of the pellet feeding speeds while the stove is cold (o)
( General parameter programming PG03=power 1 - PG04=power 5)
Once selected, the stove will automatically activate the test after approximately 1 minute.
Once the time has elapsed, the stove will return to OFF status.
To nish the test earlier, exit by pressing P1.
ATTENTION:
TO VERIFY THE FLOW RATE, THE MACHINE MUST BE COLD AND OFF!
ATTENTION:
TO FUN THE "LOAD" FUNCTION, THE MACHINE MUST BE OFF!
ATTIVAZIONE
CONTROLS PROCEDURE
Press P6 and SET CLOCK will appear.
Press P2 several times until TECHNIC SET is displayed.
Press P6.
Hold key P4 down to reach the reserved code "A0"
When the code has been reached, conrm by pressing P6
"GENERAL DATA" will appear
Press P2 until ATTIVAZIONE
is displayed.
Enter pressing P6
Use P2 to browse through the readout and P3 to go back.
Press P1 to return to the previous menus up to the initial status.
