10
WHAT IS THE PELLET?
Chapter 2

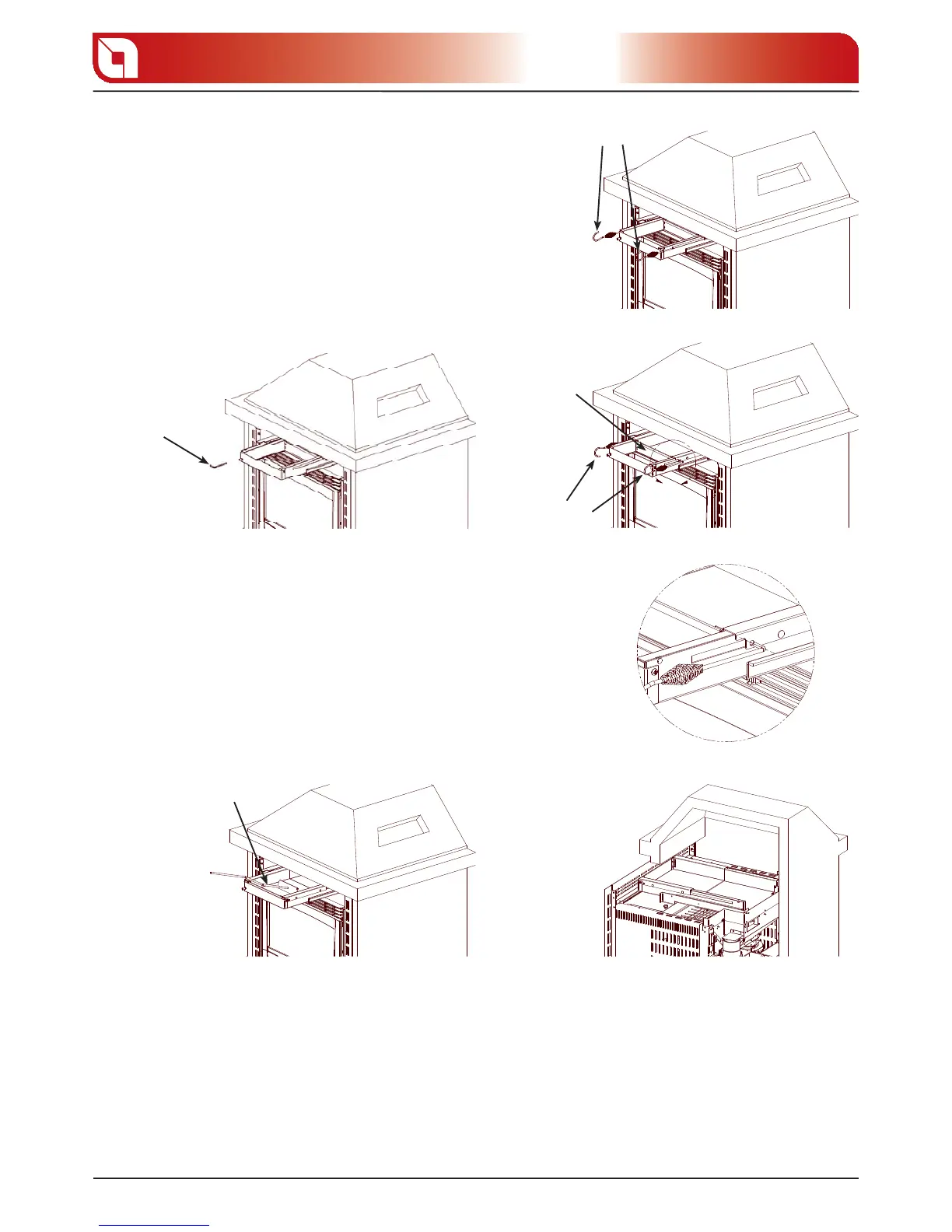

Take the supplied Allen wrench, insert it into the relevant seat
and turn in an anti-clockwise direction until fully home.
If this operation has been carried out correctly the drawer will
be blocked and cannot be moved forwards or backwards.
At this point, take the internal drawer and pull it towards yourself
to maximum opening: carry out this operation by attaching the
two re irons to the lateral holes in the drawer.
This allows to extract the internal drawer partially: in order to
extract it to maximum, protect the hands using a common oven
FIRE IRONS
ALLEN WRENCH
glove or similar, as the walls could over-heat during normal
functioning.
Pour the pellet into the drawer and use the scraper to push it
into the ue tank, making sure that it does not remain in the
drawer.
After having lled the feed-box, repeat the operations in the
reverse order to make the product go back to its original state.
During normal functioning the ue must always be as illustrated
in the gure i.e. with the drawer completely closed. the front
INTERNAL
DRAWER
pellet loading drawer must only be open for the loading time in order to prevent product over-heating.
STANDARD SUPPLY
Installation of the insert with the standard supply envisions switch-o and extraction of the ue for every
pellet feed.
FIRE IRONS
SCRAPER
gure 2.5
gure 2.6 gure 2.7
gure 2.8
gure 2.9 gure 2.10
