COMFORT PLUS INSTALLATION
Chapter 4
DUCTING
The insert has a pipe in the rear part that allows ducting of the heat developed by the machine. It is
recommended to perform ducting using the piping that re ects the following speci cations:
internal diameter 80 mm
insulated piping,
The tract of pipe connected must not exceed 2m.
The insert is supplied with a ducting pipe, closed by a metal clamp: before connecting the piping, remove
the plate and re-mount the screws to close the holes.

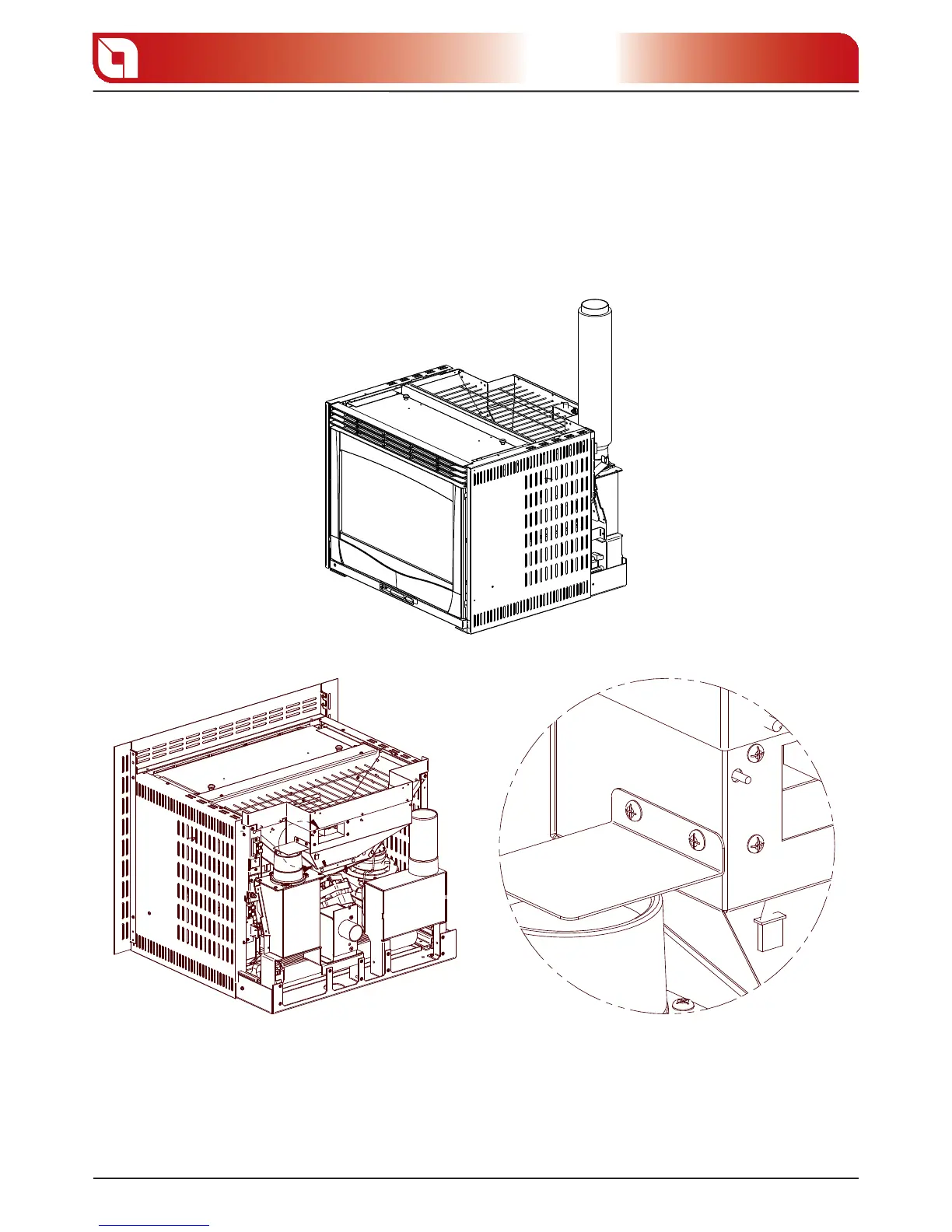

gure 4.12
gure 4.13 gure 4.14
