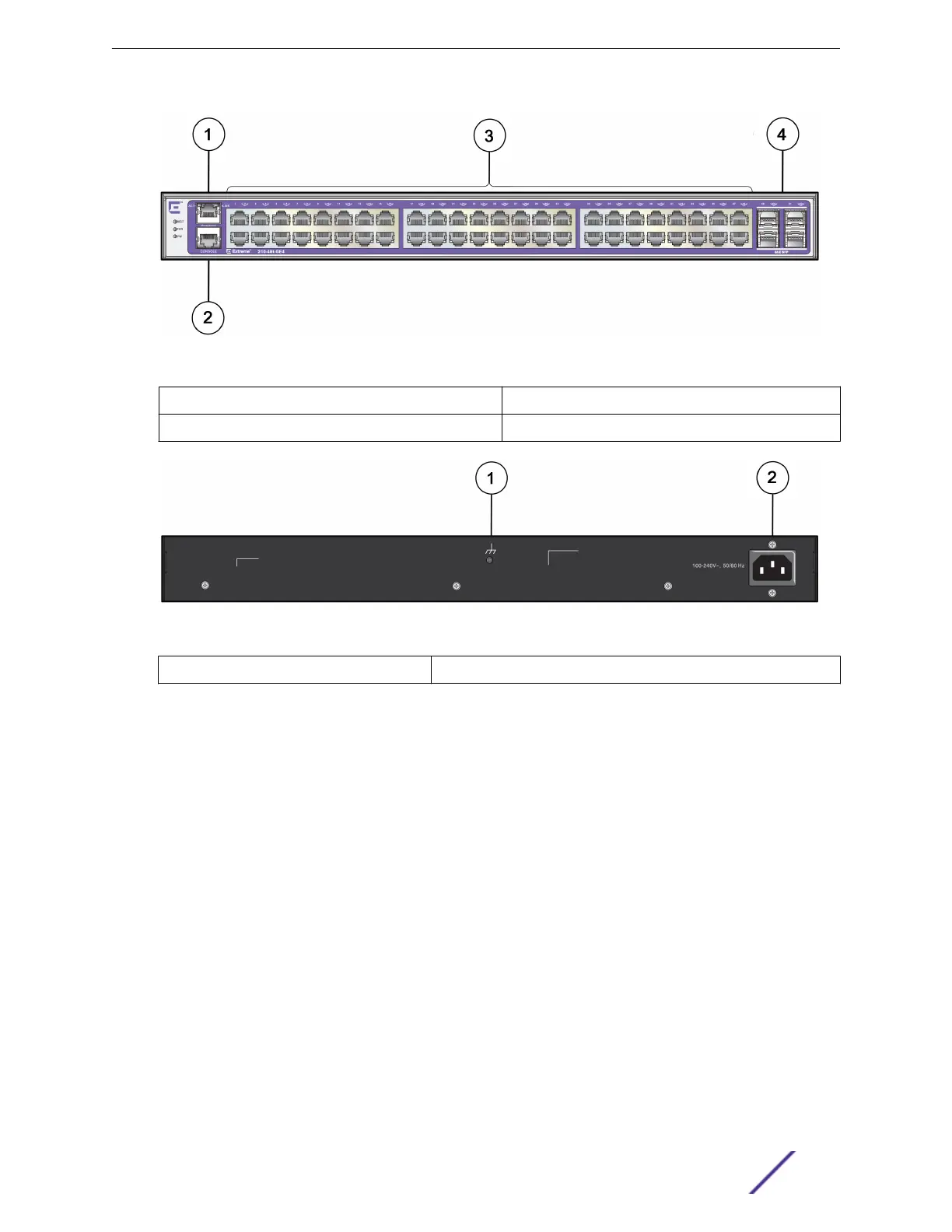

Figure 9: ExtremeSwitching 210-48t-GE4 Switch Front Panel
1 = Ethernet management port 3 = 10/100/1000BASE-T ports
2 = Console port 4 = SFP ports
Figure 10: ExtremeSwitching 210-48t-GE4 Switch Rear Panel
1 = Grounding point
2 = AC power input connector
ExtremeSwitching 210-48p-GE4 Switch Ports and Slots
The ExtremeSwitching 210-48p-GE4 switch ports and slots include:
•
48 10/100/1000BASE-T PoE+ ports (ports 1–48) that provide 1 GbE connectivity
•
Four dedicated 1 GbE SFP ports (ports 49–52)
•
Ethernet management port (10/100BASE-T)
•
Serial console port used to connect a terminal and perform local management
•
LEDs to indicate switch operating conditions
For a description of the LEDs and their operation, see ExtremeSwitching 210 and 220 Series Switch
LEDs on page 23.
ExtremeSwitching 210 and 220 Series Switches
ExtremeSwitching 210 and 220 Series Switches: Hardware Installation Guide 15
