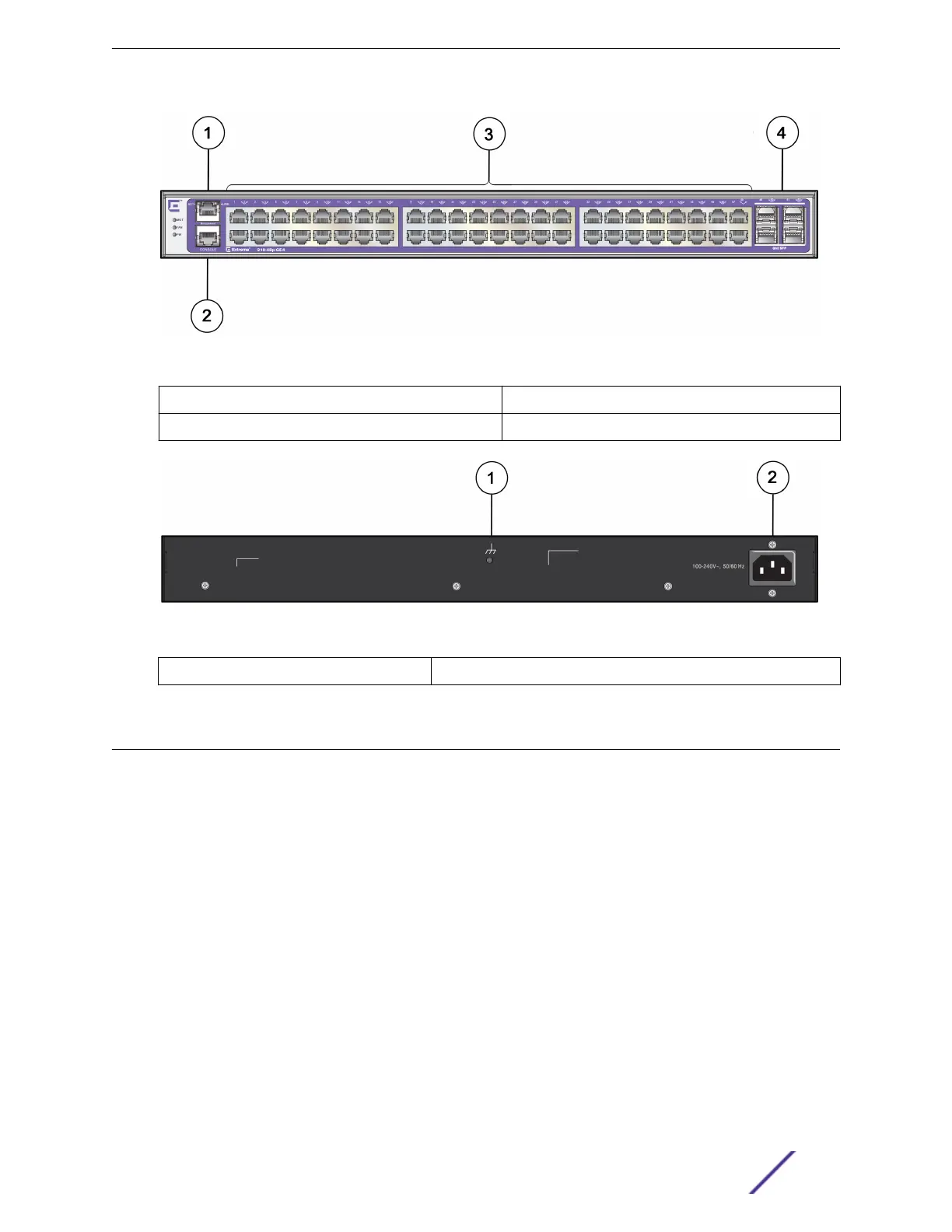

Figure 11: ExtremeSwitching 210-48p-GE4 Switch Front Panel
1 = Ethernet management port 3 = 10/100/1000BASE-T ports
2 = Console port 4 = SFP ports
Figure 12: ExtremeSwitching 210-48p-GE4 Switch Rear Panel
1 = Grounding point
2 = AC power input connector
Overview of the ExtremeSwitching 220 Series Switches
The ExtremeSwitching 220 series switches are 12-, 24, or 48-port switches that provide 10-gigabit
Ethernet connectivity using fixed 10/100/1000BASE-T RJ45 ports and installable SFP+ optical modules.
The ExtremeSwitching 220 series base models are described in the following sections:
•
ExtremeSwitching 220-12t-10GE2 Switch Ports and Slots on page 17
•
ExtremeSwitching 220-12p-10GE2 Switch Ports and Slots on page 18
•
ExtremeSwitching 220-24t-10GE2 Switch Ports and Slots on page 19
•
ExtremeSwitching 220-24p-10GE2 Switch Ports and Slots on page 20
•
ExtremeSwitching 220-48t-10GE4 Switch Ports and Slots on page 21
•
ExtremeSwitching 220-48p-10GE4 Switch Ports and Slots on page 22
Using a serial console port on the front panel of the switch, you can connect a terminal and perform
local management. An Ethernet management port can be used to connect the system to a parallel
management network for administration. Alternatively, you can use an Ethernet cable to connect this
port directly to a laptop to view and locally manage the switch configuration. The Ethernet
management port supports 10/100/1000 Mbps speeds.
ExtremeSwitching 210 and 220 Series Switches
ExtremeSwitching 210 and 220 Series Switches: Hardware Installation Guide 16
