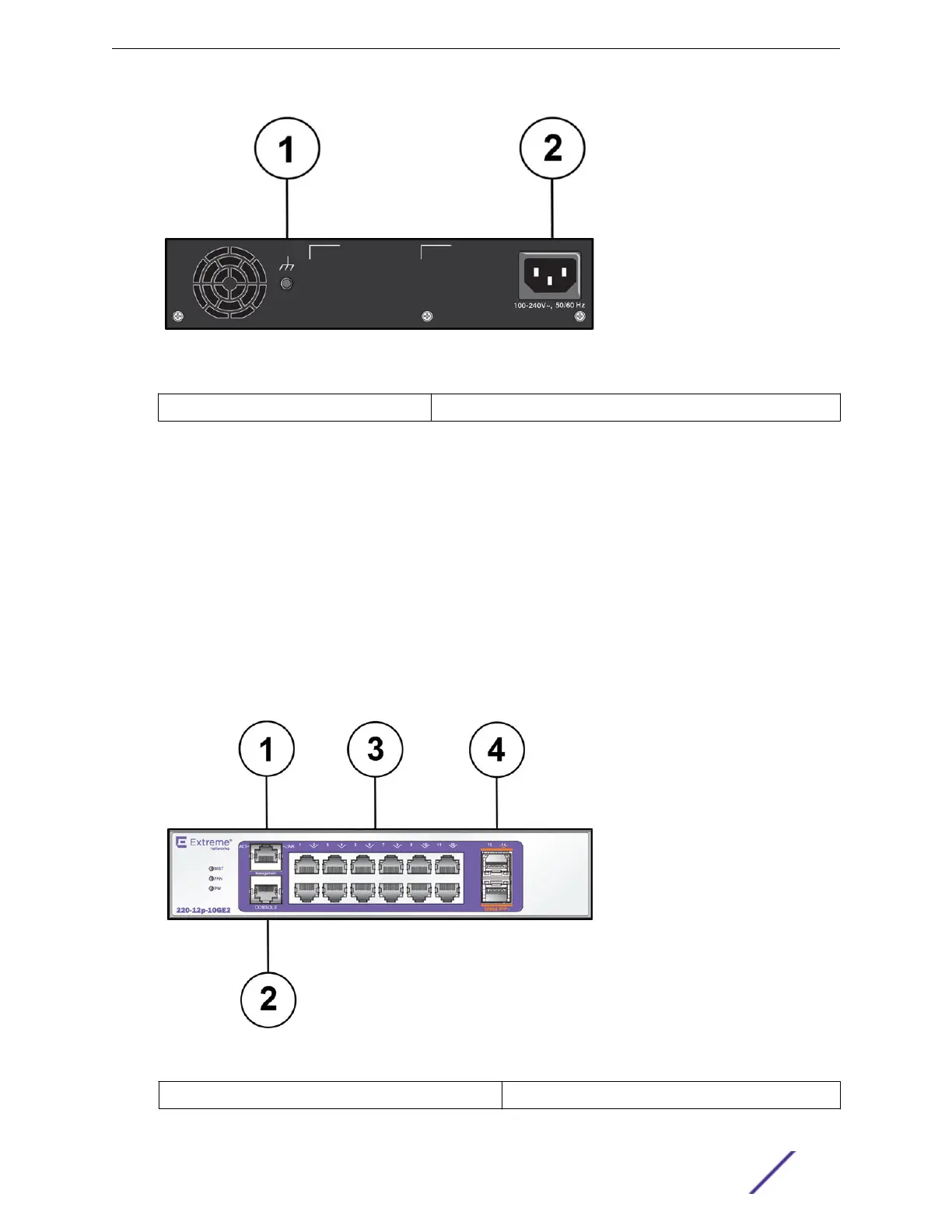

Figure 14: ExtremeSwitching 220-12t-10GE2 Switch Rear Panel
1 = Grounding point 2 = AC power input connector
ExtremeSwitching 220-12p-10GE2 Switch Ports and Slots
The ExtremeSwitching 220-12p-10GE4 switch ports and slots include:
12 10/100/1000BASE-T PoE+ ports (ports 1–12) that provide 1 GbE connectivity
Two dedicated 10 GbE SFP+ ports (ports 13–14)
Ethernet management port (10/100BASE-T)
Serial console port used to connect a terminal and perform local management
LEDs to indicate switch operating conditions
For a description of the LEDs and their operation, see ExtremeSwitching 210 and 220 Series Switch
LEDs on page 23.
Figure 15: ExtremeSwitching 220-12p-10GE2 Switch Front Panel
1 = Ethernet management port
3 = 10/100/1000BASE-T ports
ExtremeSwitching 210 and 220 Series Switches
ExtremeSwitching 210 and 220 Series Switches: Hardware Installation Guide 18
