3 Push the latching tab toward the power supply handle and pull outward on the handle to disengage
the power supply internal connectors.
See Figure 23.

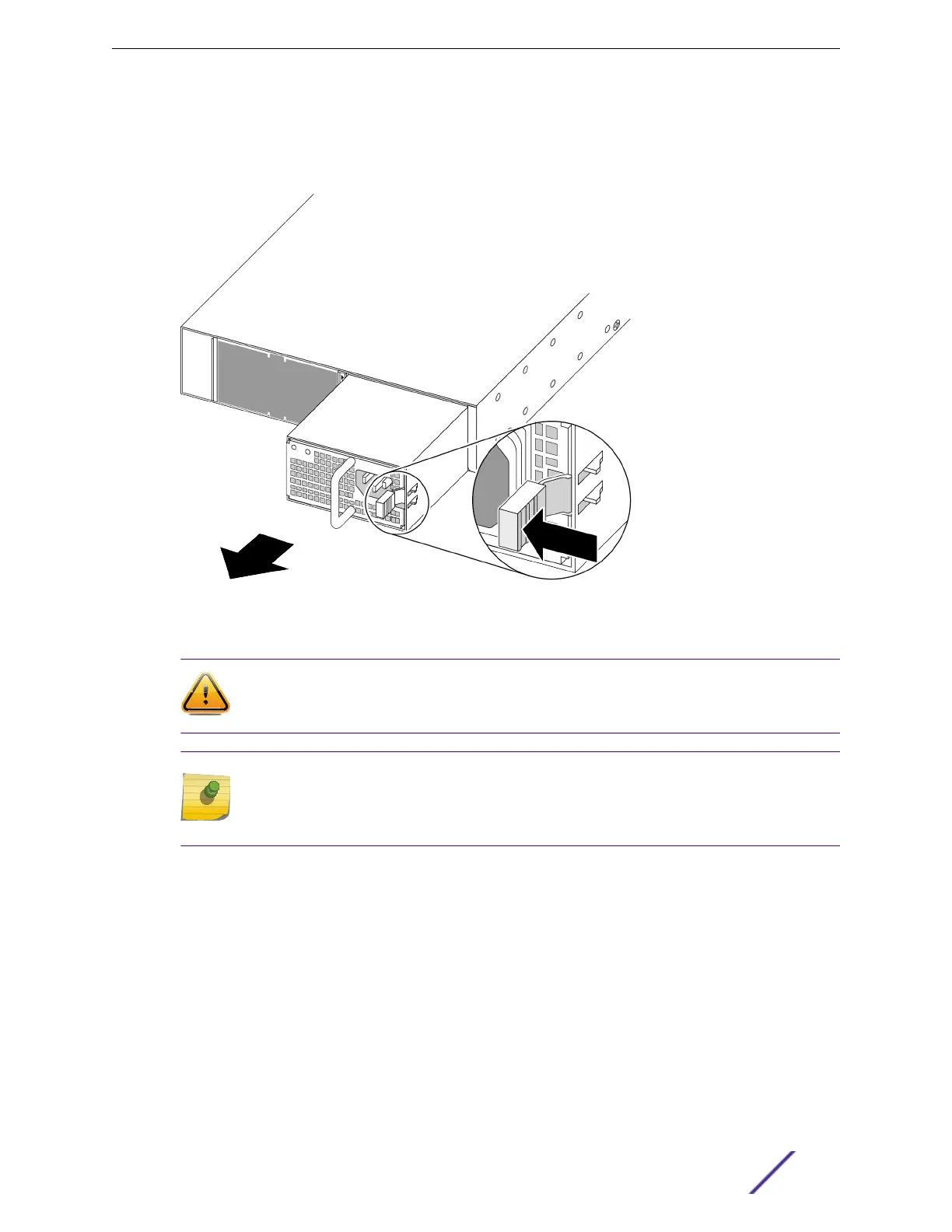

Figure 23: Removing an 1100 W AC Power Supply
4 Carefully slide the power supply the rest of the way out of the switch.
Caution
Power supplies can become very hot during operation. Wear thermal protective gloves
when you remove a power supply from an operating switch.
Note
If you are not installing a replacement power supply, install a cover over the unoccupied
power supply bay. Unoccupied bays must always be covered to maintain proper system
ventilation and EMI levels.
5 Verify that the replacement power supply is oriented the same way as the unit you removed, and has
the same airflow direction.
Removing and Replacing Components
VSP 4900 Series Switches: Hardware Installation Guide 53
