Cabling and Setup
Figure 8 shows connections for the USB Extenders Plus, rack-mountable models. The
connectors are the same for the AAP and decorator-style models except that the USB Hub
connectors are on the receiver front panels and are accessible after wall mounting.
USB
1
2
3
4
POWER
12V
1.0A MAX
INPUT
OUTPUTS
HOST
POWER
12V
1.0A MAX
INPUT
OUTPUT
Ground
+12 VDC
External
Power Supply
(12 VDC, 1 A )
G
–
External
Power Supply
(12 VDC, 1 A )
G
Ground
+12 VDC
–
Keyboard
Four USB 3.0 compatible type A f
emale
connectors provide +5 VDC at up to
500 mA to connected USB peripherals.
Transmitter Receiver
UTP or STP CAT5 or higher cable:
Te rminate both ends identically, in accordance with
either the TIA/EIA T568A or the TIA/EIA T568B
wiring standard.
USB
Laptop
1A MAX
100-240V 50-60Hz
1A MAX
100-240V 50-60Hz
11
2
2
3
3
1
1
4
4
5
5

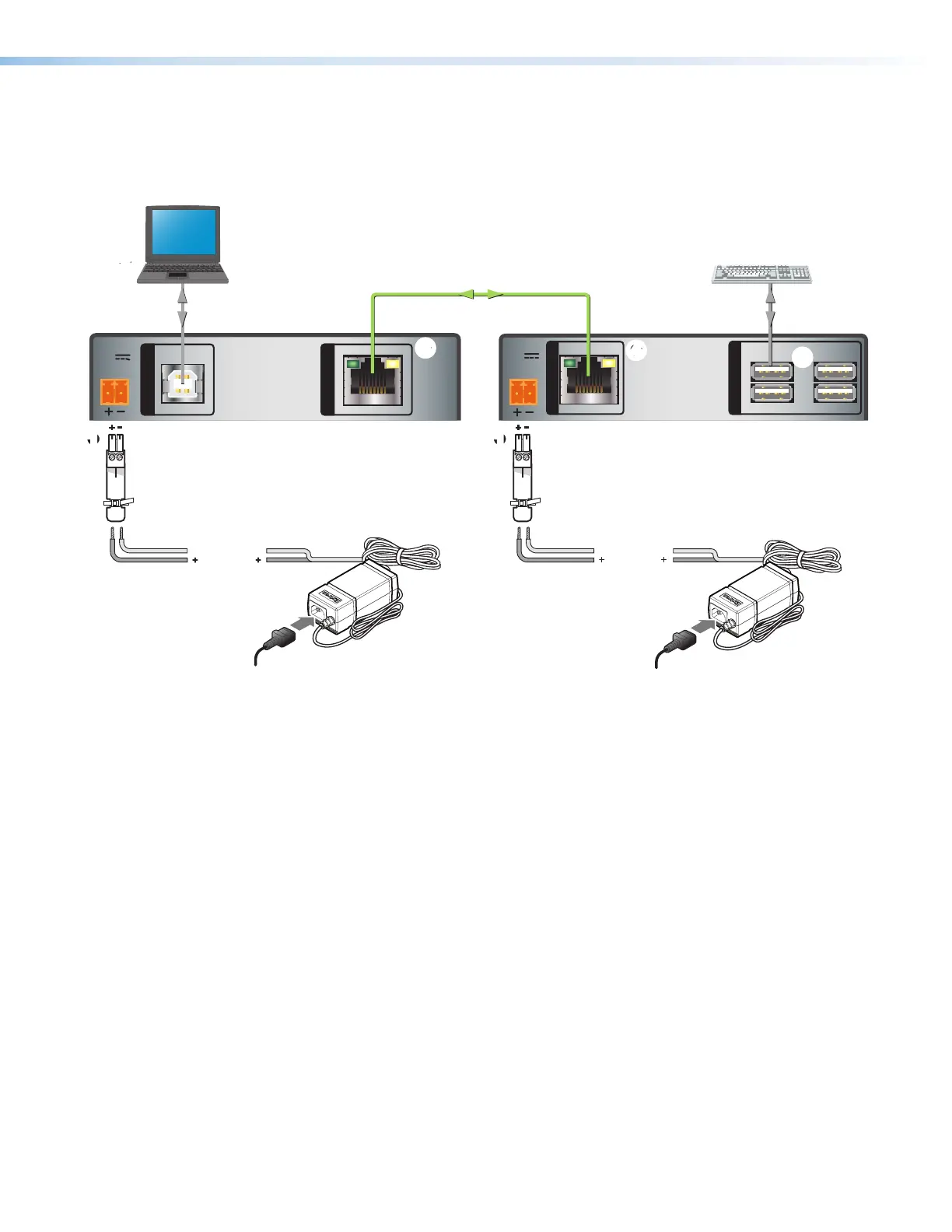

Figure 8. USB Extender Plus T-R Connection with Two External Power Supplies
