Transmitter and Receiver Rear Panels — USB Extender Plus AAP and
Decorator-Style
DD
POWER
12V
1.0A MAX
PAIR
HOST LINK
CONFIG
AA BB
CC
A
Config port
C
Power connector
B
Pair button
D
Twisted pair output connector

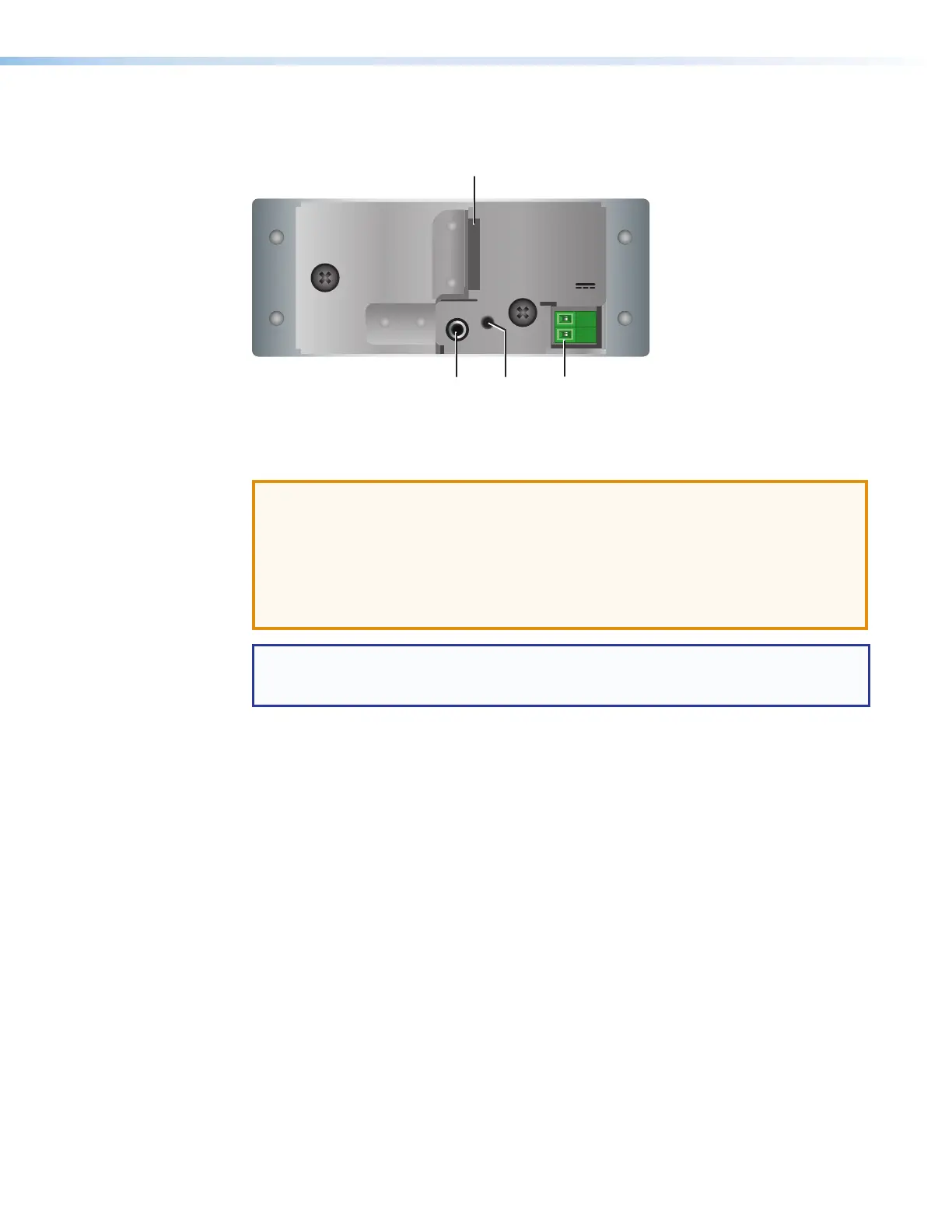

Figure 6. Rear Panel — USB Extender Plus AAP Transmitter and Receiver
ATTENTION:
• The USB Extender Plus AAP transmitter and USB Extender Plus AAP receiver are
to be used with UL Listed Extron products that accept Architectural Adapter Plates
(AAP).
• L’émetteur USB Extender Plus AAP et le récepteur USB Extender Plus AAP doivent
être utilisés avec des produits Extron conformes à la norme UL, qui prennent en
charge des plaques d’adaptation architecturale (AAP).
NOTE: The rear panel of the USB Extender Plus AAP receiver is identical to that of the
transmitter except for the function of the RJ-45 connector. On the transmitter, this
connector is used for output, while on the receiver it is used for input.
USB Extender Plus Series • Installation and Operation 7
