Extron electronics USB Extender Plus Series - Reference Information; Twisted Pair Cable Termination

Reference
Information
This section provides information on the following subjects:
• Twisted Pair Cable Termination
• Mounting the USB Extender Plus Series
Twisted Pair Cable Termination
NOTES:
• RJ-45 termination with CAT 5, CAT 5e, CAT 6, CAT 6e, and CAT 7 cable
must comply with the TIA/EIA T568A or TIA/EIA T568B wiring standard for all
connections.
• The transmitter and receiver pair work with unshielded twisted pair (UTP) or
shielded twisted pair (STP) cables; but to ensure FCC Class A and CE compliance,
STP cables are required.
• Terminate both ends of the cable identically, in accordance with either the
TIA/EIA T 568A or the TIA/EIA T 568B wiring standard.

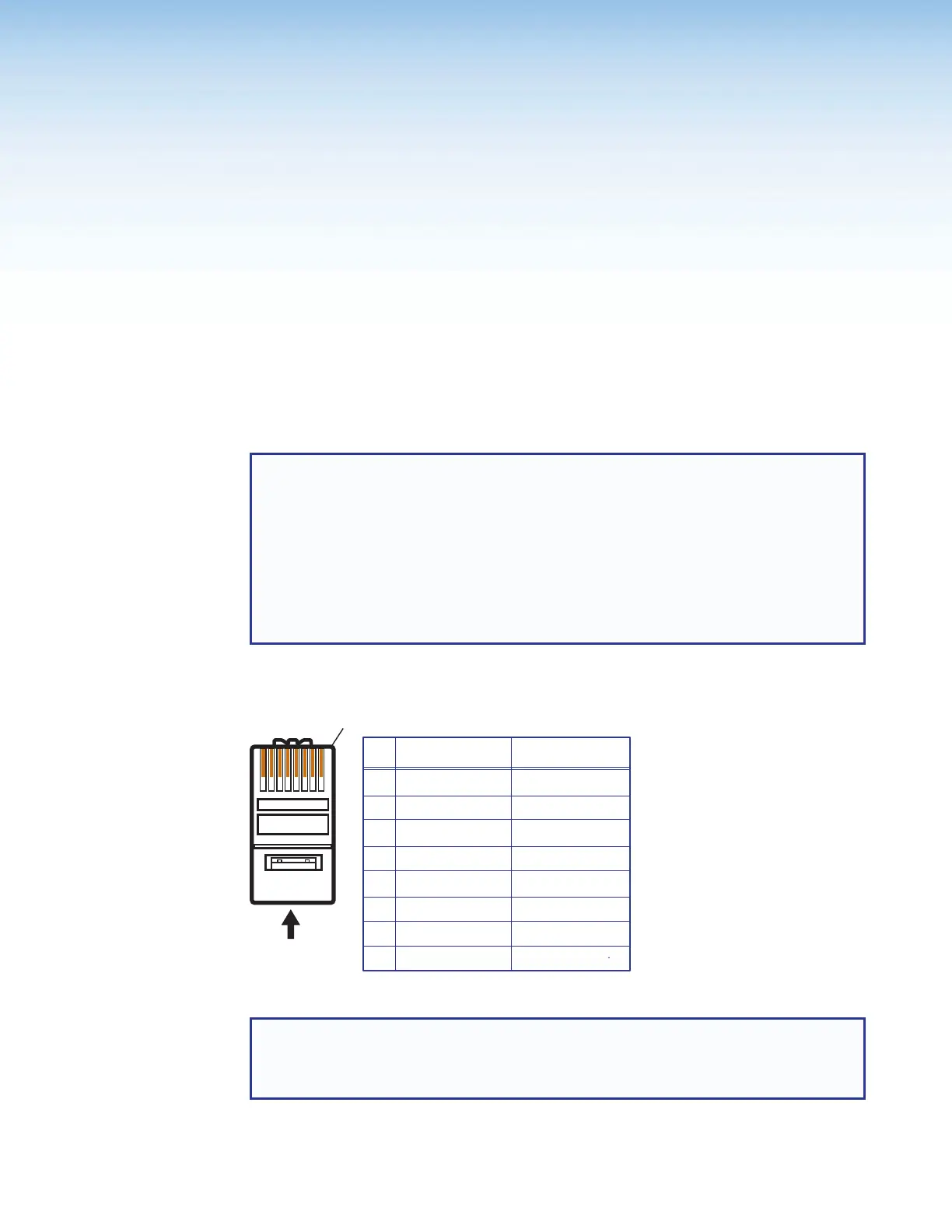

Figure 34 shows the recommended termination of TP cables with RJ-45 connectors.
RJ-45
Connector
Insert Twisted
Pair Wires
12345678
Pins:
Pin
1
2
3
4
5
6
7
8
TIA/EIA-T568A
White-green
Green
White-orange
Blue
White-blue
Orange
White-brown
Brown
TIA/EIA-T568B
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
Figure 34. TP Cable Termination
NOTE: Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable to link the
transmitter and receiver. Skew-free AV cable is designed for Extron TP transmitter and
receiver AV applications. The USBExtender Series does not work properly with this
cable.
