XTP II CrossPoint Series • Front Panel Operations 19
Front Panel Operations
The section describes simple XTP II CrossPoint matrix switcher
operation from the front panel. Topics that are covered include:
• Creating a Tie
• Saving or Recalling a Preset
• Setting the Front Panel Locks (executive Modes)
• Viewing and Adjusting the Audio Level
• Viewing Ties (and Muting Outputs)
Creating a Tie
A "tie" is an input-to-output connection.
A "set of ties" is an input tied to two or more outputs. (An output
can never be tied to more than one input.)
A "conguration" is one or more ties, one or more sets of ties, or is
a combination.

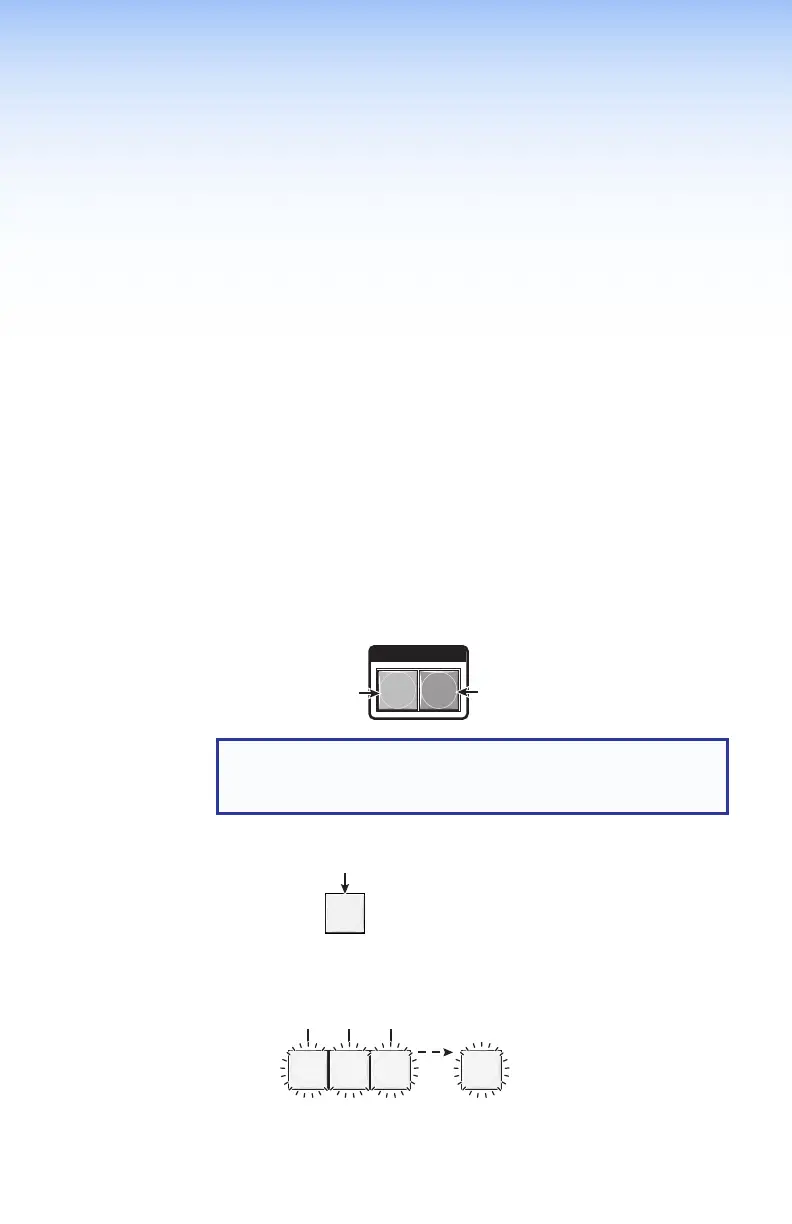

1. Press and release the Esc button to clear any input button,
output button, or control button indicators that may be lit.
2. Press and release the Video and Audio I/O buttons to select or
deselect video, audio, or both as desired.
Green
when selected
Off when deselected
Red when selected
Off
when deselected
I / O
VIDEO AUDIO
NOTE: Audio or video can be broken away (tied by itself)
by selecting only the Video button or only the Audio
button.
3. Press and release the desired input button.
5
The button lights to indicate the selection.
4. Press and release the desired output buttons.
3 4
ENTER
8
Amber indicates video and audio tie.
Green
indicates video only tie.
Red
indicates audio only tie.
Green
indicates the need
to confirm the change.
5. Press and release the Enter button. All button indicators turn
off.
