Extron electronics XTP II CrossPoint Series Setup Guide

13XTP II CrossPoint Series • Installation
ATTENTION:
• Extron recommends that this procedure be performed
by a licensed electrician only. See the XTP II CrossPoint
Series User Guide, available at www.extron.com, for
installation instructions, warnings, and other important
information.
• Extron recommande que cette tâche soit exécutée
par un électricien agréé uniquement. Voir le
XTP II CrossPoint Series User Guide, disponible sur
www.extron.com pour obtenir des informations
relatives aux instructions de montage, Aux
avertissements, et à d’autres éléments importants.
Additional Connector Information
TP connectors
All LAN ports, whether on XTP boards or the matrix switcher
Ethernet port use Category (CAT) 5e, CAT 6a, or CAT 7 (CATx)
unshielded twisted pair (UTP) or shielded twisted pair (STP) cables.
The XTP ports are compatible with Extron XTP DTP 24 SF/UTP
cables as well as CATx shielded twisted pair (F/UTP, SF/UTP, and
S/FTP) and unshielded twisted pair (U/UTP) cable.
The TP cables are terminated with RJ-45 connections and
are limited to a length of 330 feet (100 m). The cables can be
terminated as straight-through cable or a crossover cable and
must be properly terminated for your application (see gure 5).
A cable that is wired as T568A at one end
and T568B at the other (Tx and Rx pairs
reversed) is a "crossover" cable.
A cable that is wired the same at both ends is
called a "straight-through" cable, because
no pin/pair assignments are swapped.
12345678
RJ-45
Connector
Inser
t Twisted
Pair Wires
Pins:
Crossover Cable Straight-through Cable
Pin
1
2
3
4
5
6
7
8
Wire color
White-green
Green
White-orange
Blue
White-blue
Orange
White-brown
Brown
Wire color
T568A T568B
End 1 End 2 End 1 End 2
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
Pin
1
2
3
4
5
6
7
8
Wire color
White-orange
White-green
Blue
White-blue
White-brown
Brown
Wire color
T568BT568B
White-orange
OrangeOrange
White-green
Blue
White-blue
GreenGreen
White-brown
Brown

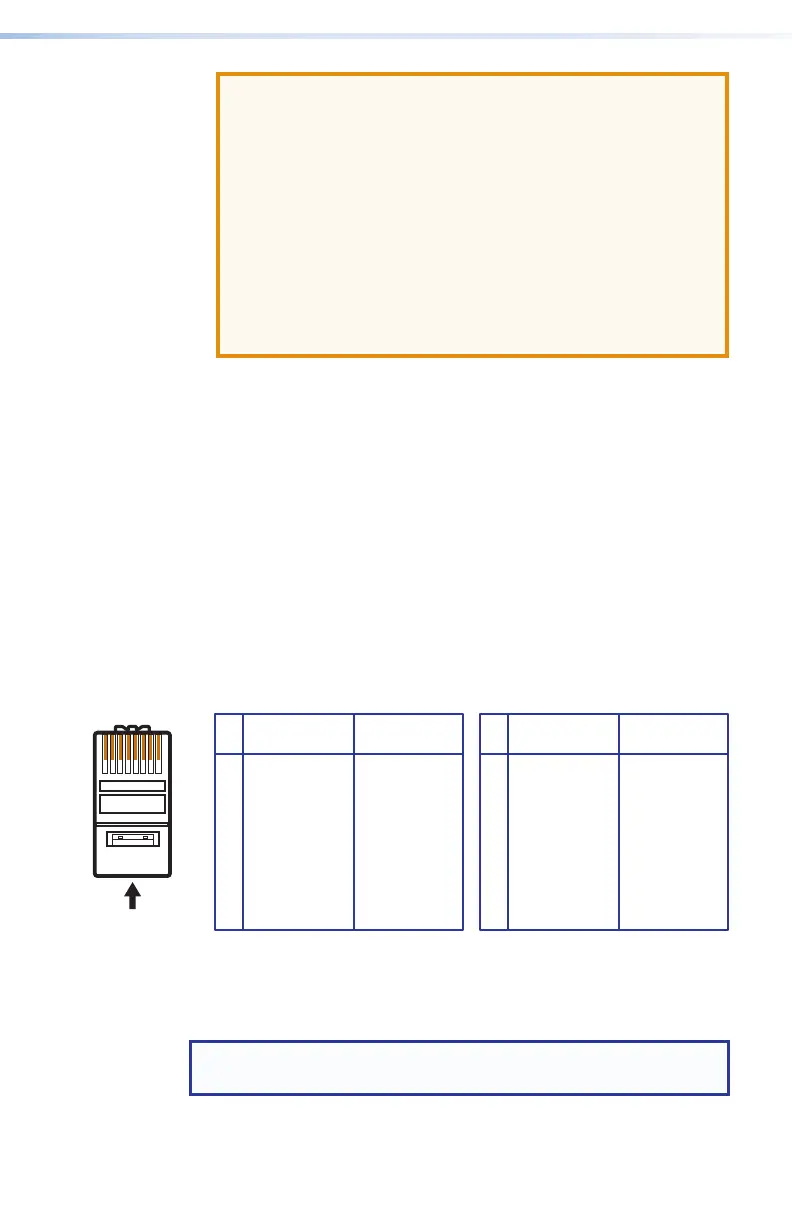

Figure 5. RJ-45 Connector and Pinout Tables
NOTE: Do not stretch or bend cables. Transmission errors can
occur.
