Page |
5

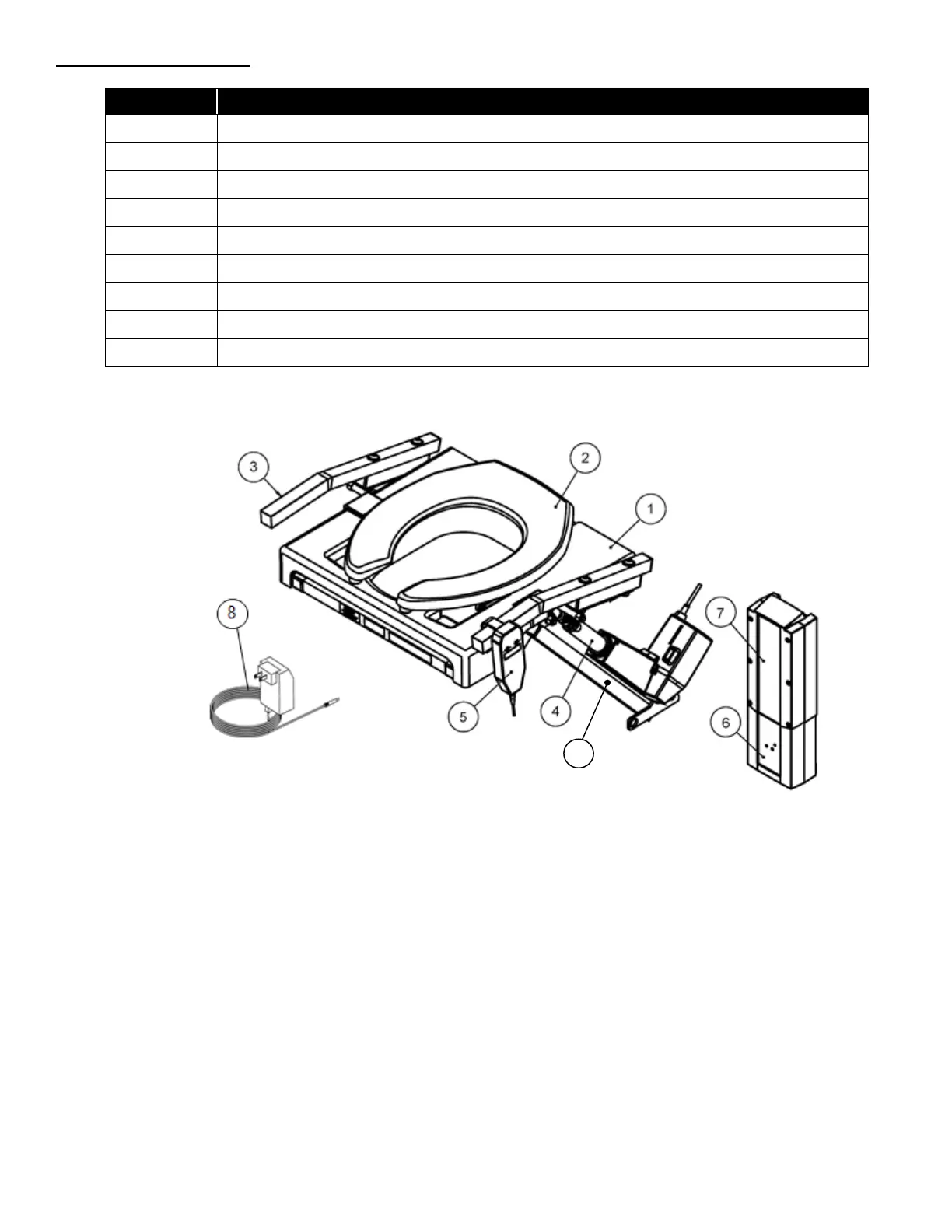

PRODUCT OVER
VIEW
REFERENCE
DESCRIPTION
1
PLASTIC SHIELD
–
REMOVA
BLE
2
TOILET SEAT
–
STANDARD
SEAT SHOWN
3
HAN
DLE
S
WIT
H F
OAM
GR
IP
4
ACTUATOR
(MOTOR)
–
M
OUNTED TO TILT FRAM
E
5
HANDHELD
CONTROL
–
PUSH BUTTON
DEVICE
6
DC
CONT
ROL
BOX
–
ATTACHES
TO
MOUNTING
BRACKET
7
BATTERY
–
A
TTACHES
TO
MOUNTING
BR
ACK
ET
8
AC INPUT, DC BATTERY
CHARGER
9
ACTUATOR
MOUNT
9
4
6
Table of Contents
Table of Contents
2
Introduction
2
Symbols and Warnings
3
Notes, Box Contents, Tools/Hardware Needed, and Hardware Contents
4
Product Overview
5
Section 1: Pre-Installation
6
Section 2: Frame Installation
6
Section 3: Actuator Mount
7
Section 4: Actuator Detail and Assembly
10
Section 5: Installing Mounting Bracket and Control Box
11
Section 6: Battery
12
Section 7: Battery Charging
12
Section 8: Connect Actuator to Control Box
13
Section 9: Handheld Control
13
Section 10: Post-Installation and before Use Inspection
14
Section 11: Cleaning / Sanitation / Maintenance
14
Section 12: Troubleshooting
15
