TITAN
™
Code Compliant Modular Access System Installation Manual

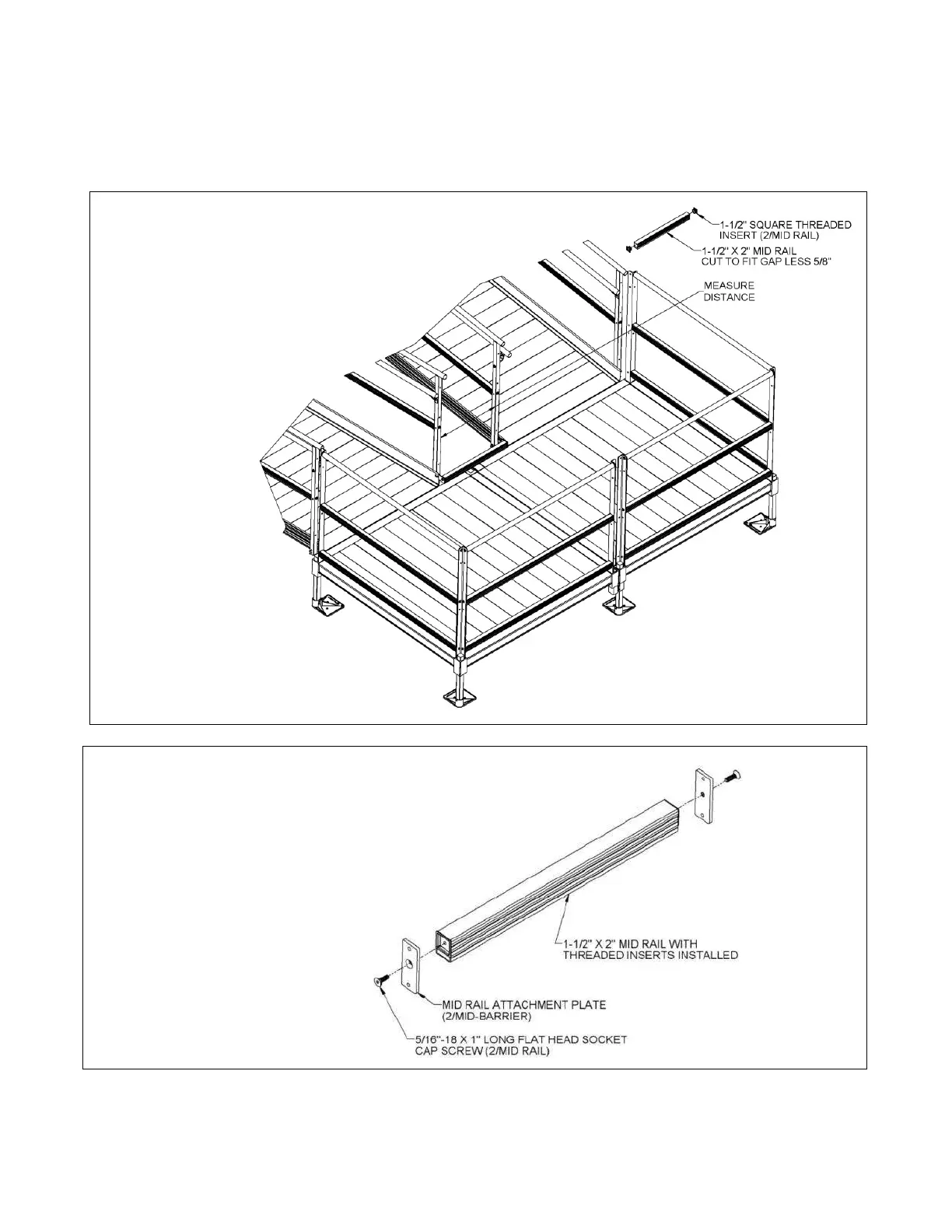

5.6.12. Insert 1-1/2” square threaded inserts into both ends of the 1-1/2” x 2” mid rail
(FIG. 5.23). Use a rubber mallet or similar tool to fully seat as needed.
5.6.13. Attach the mid rail attachment plates to mid rail with 5/16”-18 x 1” long flat head
socket cap screws (the hole in the mid rail attachment plate is offset to account
for the offset of the threaded insert in the mid rail). Orient the plate such that the
mid rail is centered on both sides, and then tighten screws securely (FIG. 5.24).
FIG. 5.23
FIG. 5.24
