EZ-ACCESS TITAN User Manual

TITAN
™
Code Compliant Modular Access System Installation Manual
Page 52 of 92

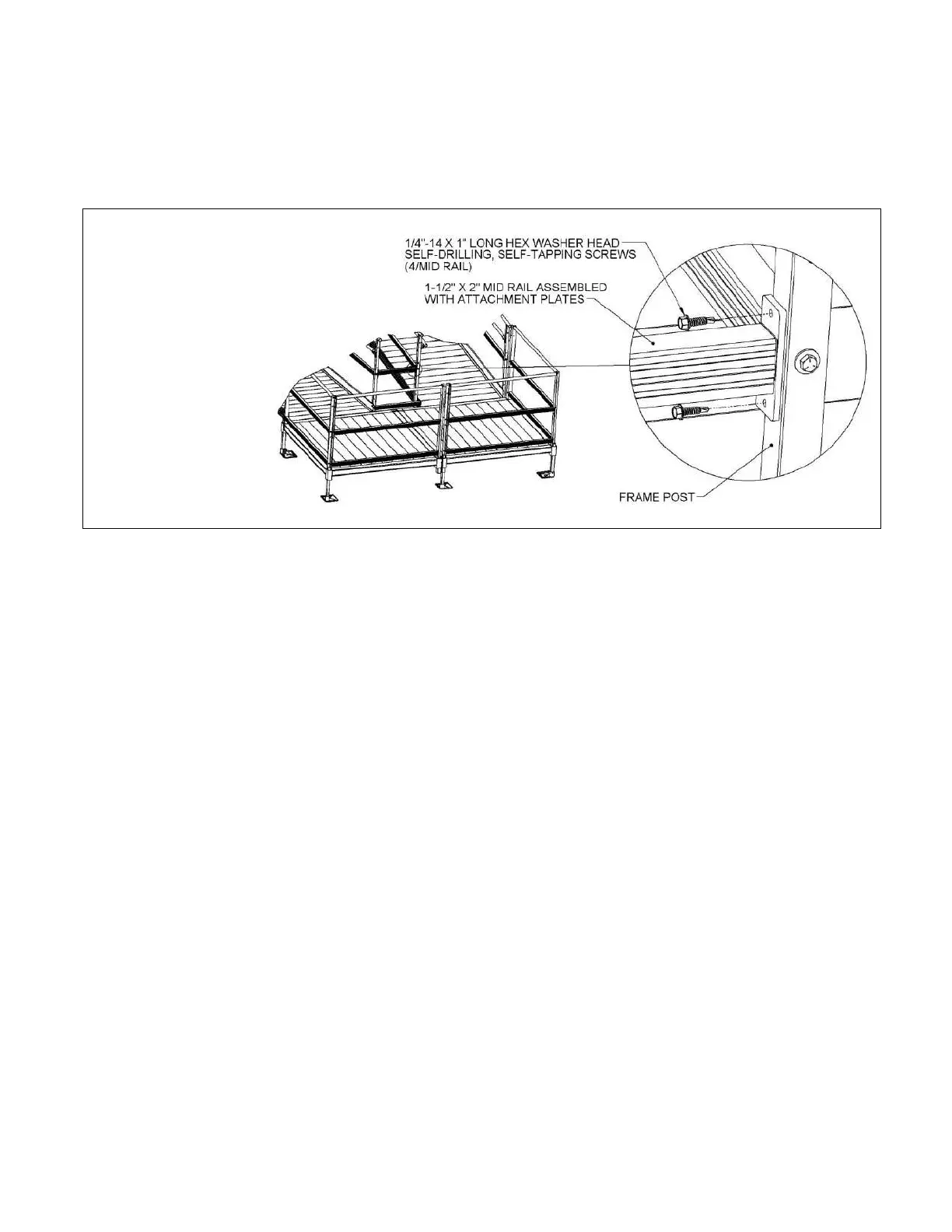

5.6.14. Attach the mid rail assembly between the frame posts using two each 1/4”-14 x 1”
long hex washer head self-drilling, self-tapping screws per attachment plate. Center
the mid rail assembly (approximately) between frame mid rails, about 18” to 18-1/2”
above the lower barrier (FIG. 5.25).
5.6.15. Connect the ramp handrails at the turn back by first inserting 2-15/16” ring joiners
in the open ends of the ramp handrails and adjustable elbows on the opposite end
of the ring joiner.
FIG. 5.25
