EZ-ACCESS TITAN User Manual

TITAN
™
Code Compliant Modular Access System Installation Manual
Page 53 of 92
5.6.16. Install another 2-15/16” ring joiner into the other ends of the elbows. Orient joiner
set screw toward the underside of ramp handrail (FIG. 5.26).
5.6.17. Loosen the elbow assembly screws and align the opposing faces of the elbows
shown, and then tighten elbow assembly screws and joiner set screws enough to
hold the components in position (FIG. 5.26 and FIG. 5.27).
5.6.18. Measure gap between faces of opposing rings of the 2-15/16” ring joiners (FIG. 5.27).
5.6.18.1. Make sure the faces of the opposing rings of the 2-15/16” ring joiners are
parallel before measuring or cutting the 1-1/2″ diameter tube.
5.6.19. Cut the 1-1/2″ diameter tube to the length measured. Using a metal file, remove any
sharp edges from cutting.
5.6.20. Install the cut 1-1/2″ diameter round tube between the 2-15/16” ring joiners.
Remove and reinstall the adjustable elbows, if needed (FIG. 5.27).
5.6.21. Securely tighten adjustable elbow assembly screws and all ring joiner set screws.

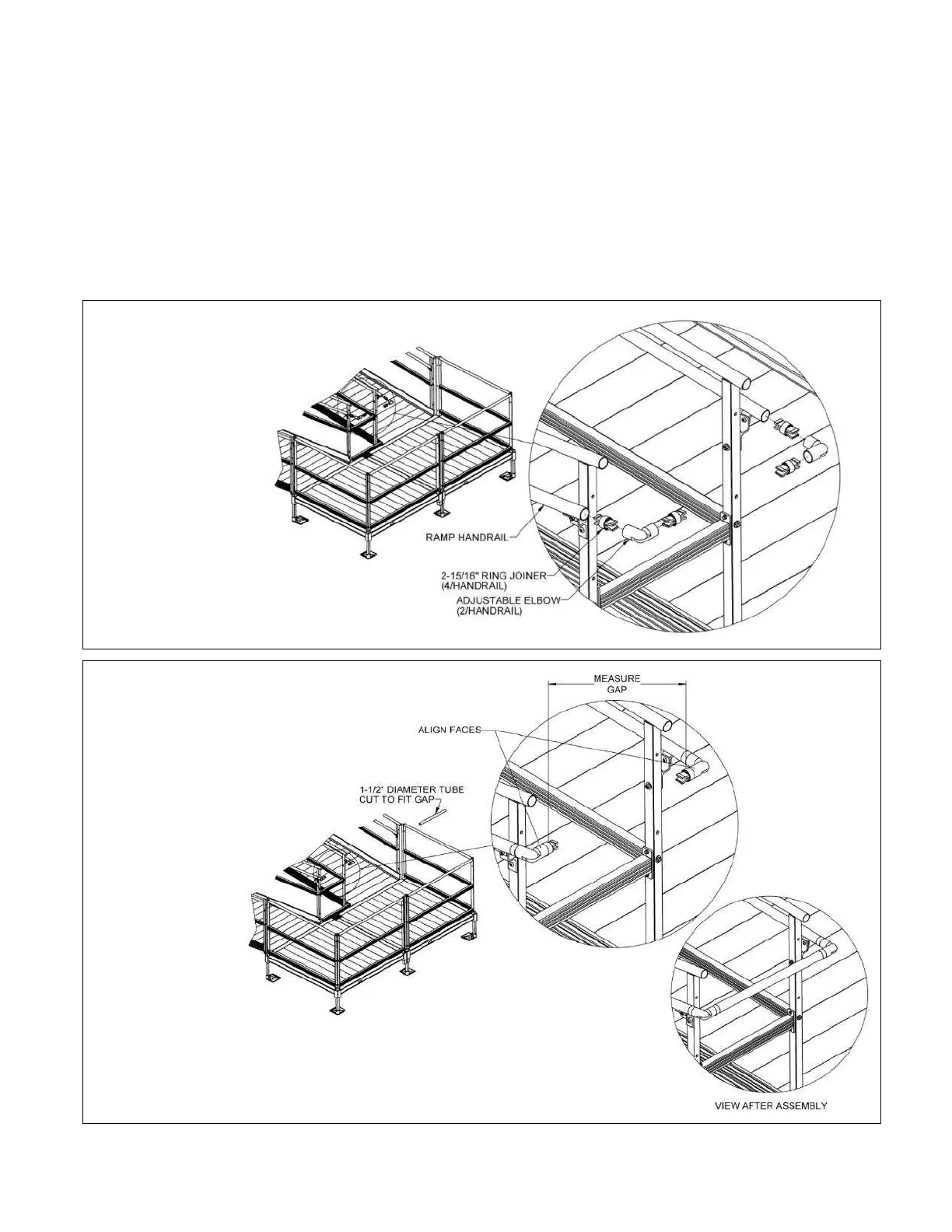

FIG. 5.26
FIG. 5.27
