TITAN
™
Code Compliant Modular Access System Installation Manual

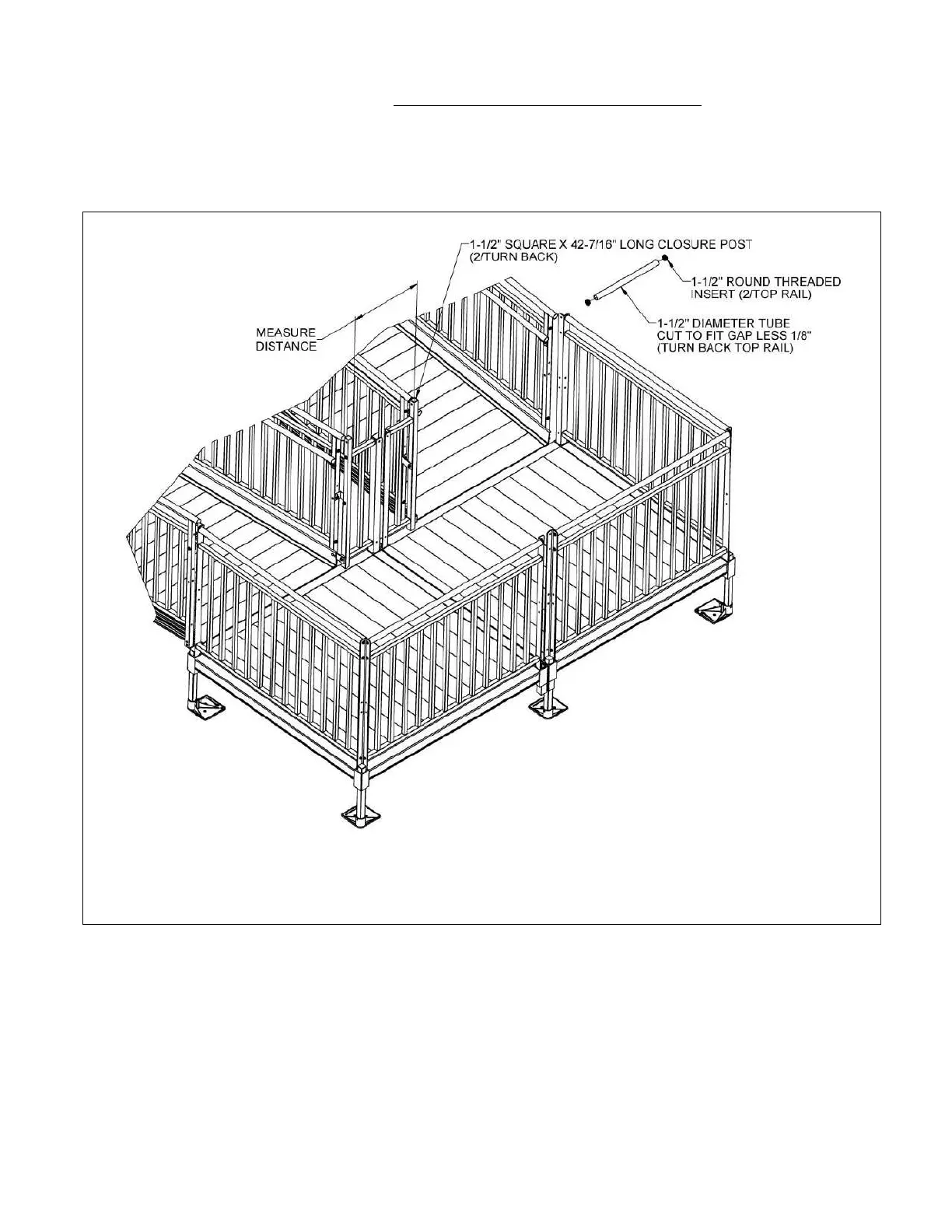

5.7.4. For the turn back top rail, measure the distance between the 1-1/2” square x 42-7/16”
long closure posts at the turn back, and then cut the 1-1/2” diameter tube to the
measured length less 1/8” to account for the threaded inserts which will be installed in
the following steps (FIG. 5.31).
5.7.5. Using a metal file, remove all sharp edges from cutting.
5.7.6. Insert 1-1/2” round threaded inserts into both ends of the 1-1/2” diameter tube. Use
a rubber mallet or similar tool to fully seat as needed. (FIG. 5.31).
FIG. 5.31
