5.7.7. Attach the top rail between the 1-1/2” square x 42-7/16” long closure posts using a
5/16″-18 x 2-1/4″ long hex bolt through a 5/16” flat washer, the uppermost hole in
the closure post, and into the 5/16”-18 round threaded insert (FIG. 5.32).
5.7.8. Repeat this process for the opposite side.
5.7.9. Insert a square tube plug into the top of both closure posts (FIG. 5.32). Use a
rubber mallet or similar tool to fully seat as needed. If necessary, use construction
adhesive to bond the plug in place.
5.7.10. Connect ramp handrails at the turn back by first inserting 2-15/16” ring joiners in
the open ends of the ramp handrails. Install a 1-1/2” diameter tube bend on the
opposite end of the joiner. Orient the joiner set screws toward the underside of the
ramp handrails (FIG. 5.33).

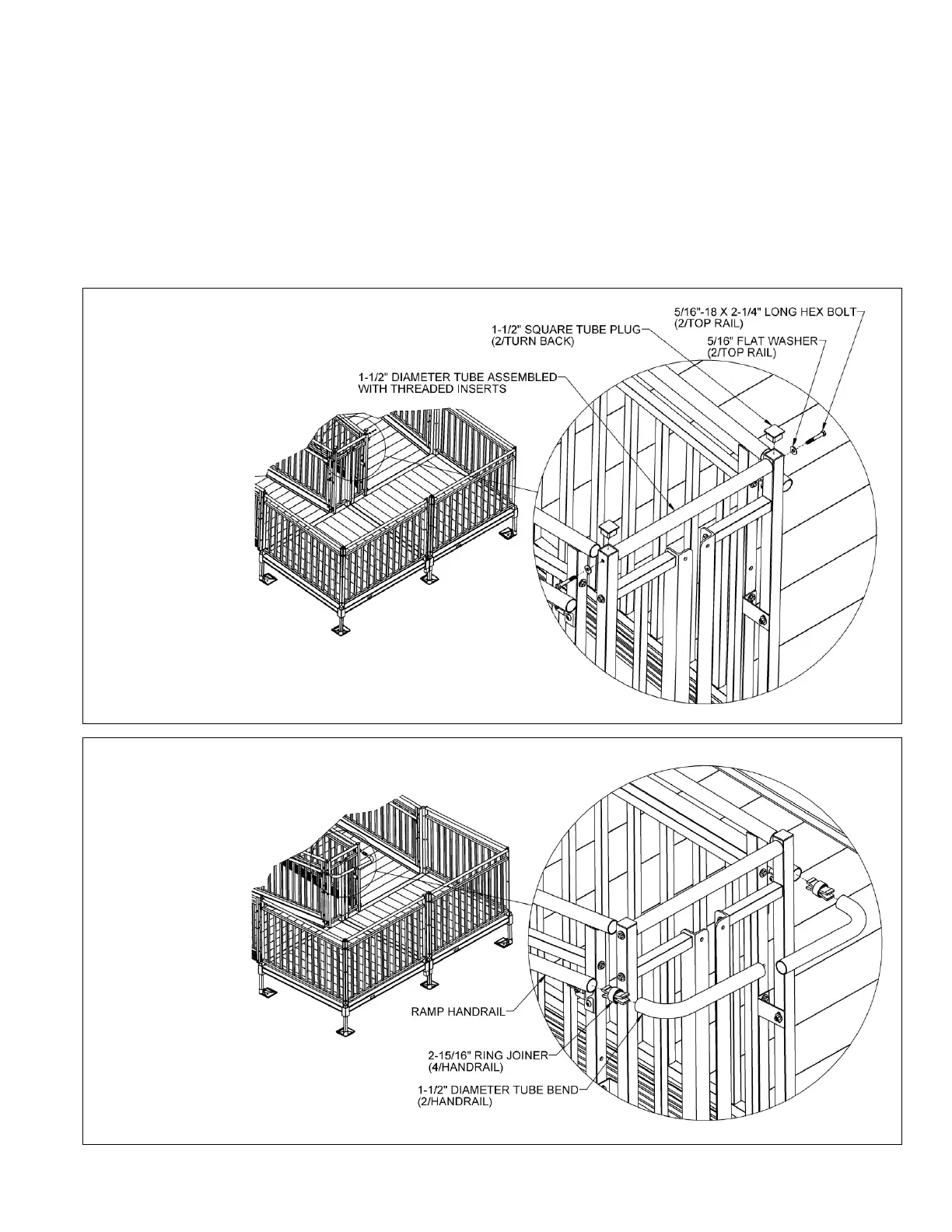

FIG. 5.32
FIG. 5.33
