Code Compliant Modular Access System Installation Manual
5.12.2. Using the second hole from the top of the post and the lower of the two middle holes,
connect the platform angle post (installed in previous step) to the adjacent platform
angle posts of the guards or two-line rails using 1/4”-20 x 1” hex bolts, 1/4”-20
locknuts, and 1/4” flat washers thru the platform angle posts and 2” x 4-1/8” tie
straps. Place the tie straps on the outside and the hex bolts on the inside of the guards
or two-line rails as shown (FIG 5.53).
5.12.3. FIG. 5.54 shows the completed corner closure installation.
5.12.4. Tighten all fasteners securely, including the platform leg and post setscrews, if not
tightened in previous steps.
5.12.5. Complete the installation of all handrail components (if required for your installation)
and ‘FINAL PLATFORM/RAMP STEPS AND CHECKS’ section.

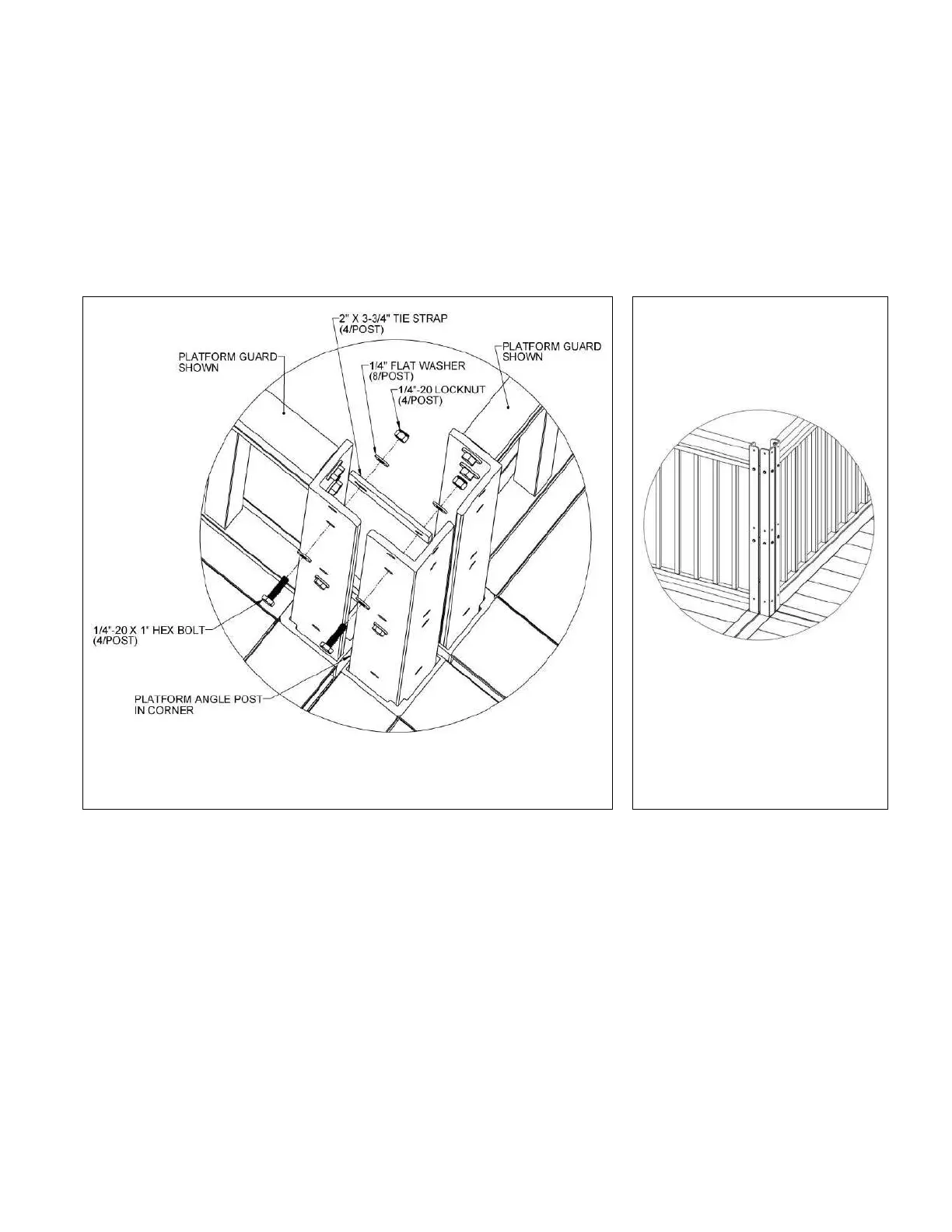

FIG. 5.53
