EZ-ACCESS TITAN User Manual

TITAN
™
Code Compliant Modular Access System Installation Manual
Page 87 of 92
7.3.4.6. Attach the platform extender to the main platform using platform tie
straps, platform connectors, or a combination of one of each.
Regardless of the combination used, the platform extender must
be connected to the main platform in two locations.
7.3.4.7. If using platform tie straps, hold platform extender as close as possible
to the main platform, and then center platform tie strap between the
platform side rails approximately 1” to 2” from platform corner pocket.
7.3.4.8. Attach using the four 1/4” x 1” long self-drilling, self-tapping pan head
Phillips screws provided (FIG. 7.13).

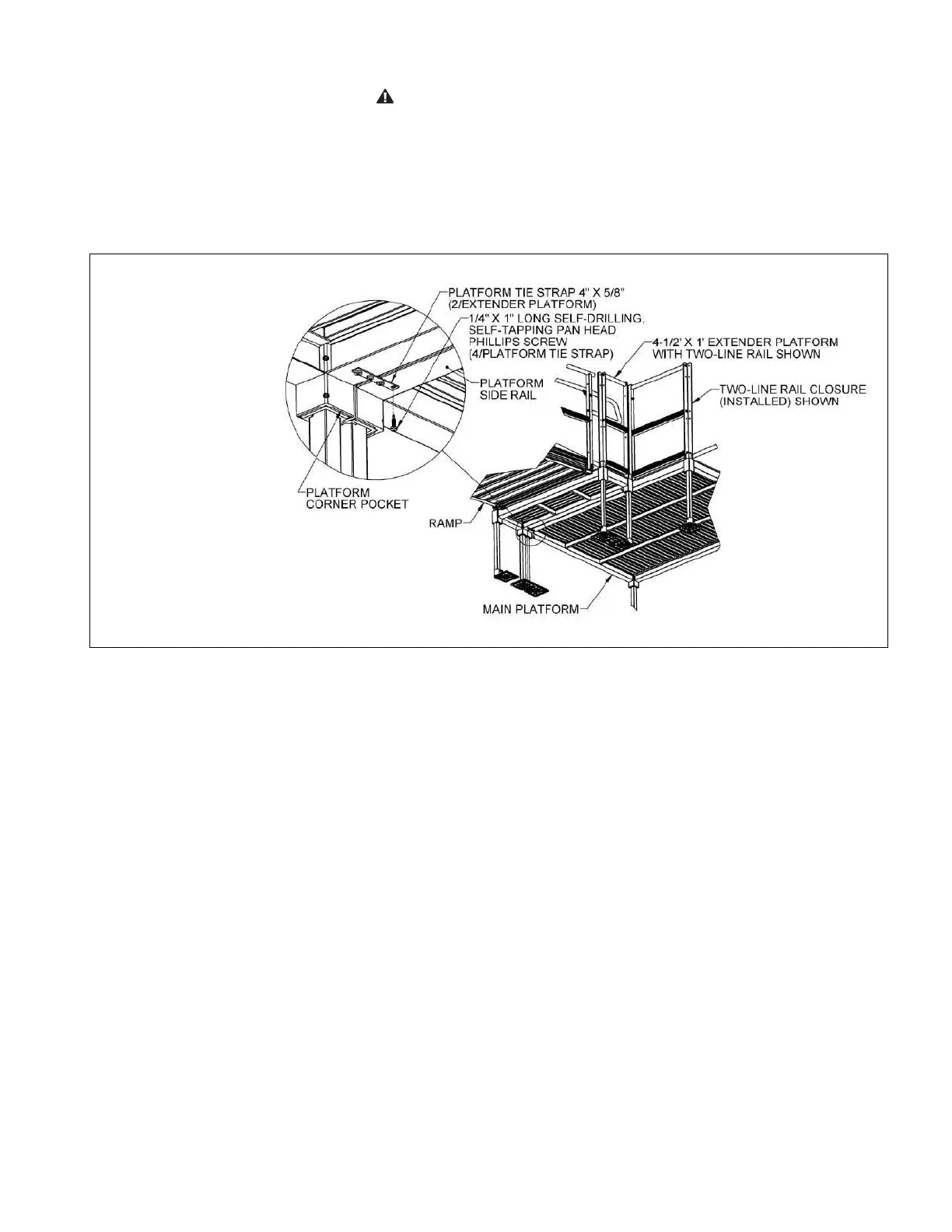

FIG. 7.13
