B
MAINTENANCE
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
47
Owner’s Manual
Starter Generator Belt Tension
Tool List Qty. Tool List Qty.
Belt Tension Gauge ..................................................... 1 Wrench, 3/4”................................................................ 1
Wrench, 9/16”.............................................................. 2 Ratchet........................................................................ 1
Socket, 3/4” ................................................................. 1
The starter/generator belt tension should be checked after the first 15 - 20 hours and set to 75 - 80 lbs. (34 - 36 kg).
At no time during installation of belt, should the belt tension exceed 160 lbs (73 kg).
During installation, the belt must not be rolled over the edges of the starter/generator or drive clutch pulleys.
Excessive stretch in belt may cause cord failure.
A loose belt can cause audible vibration and squeal.

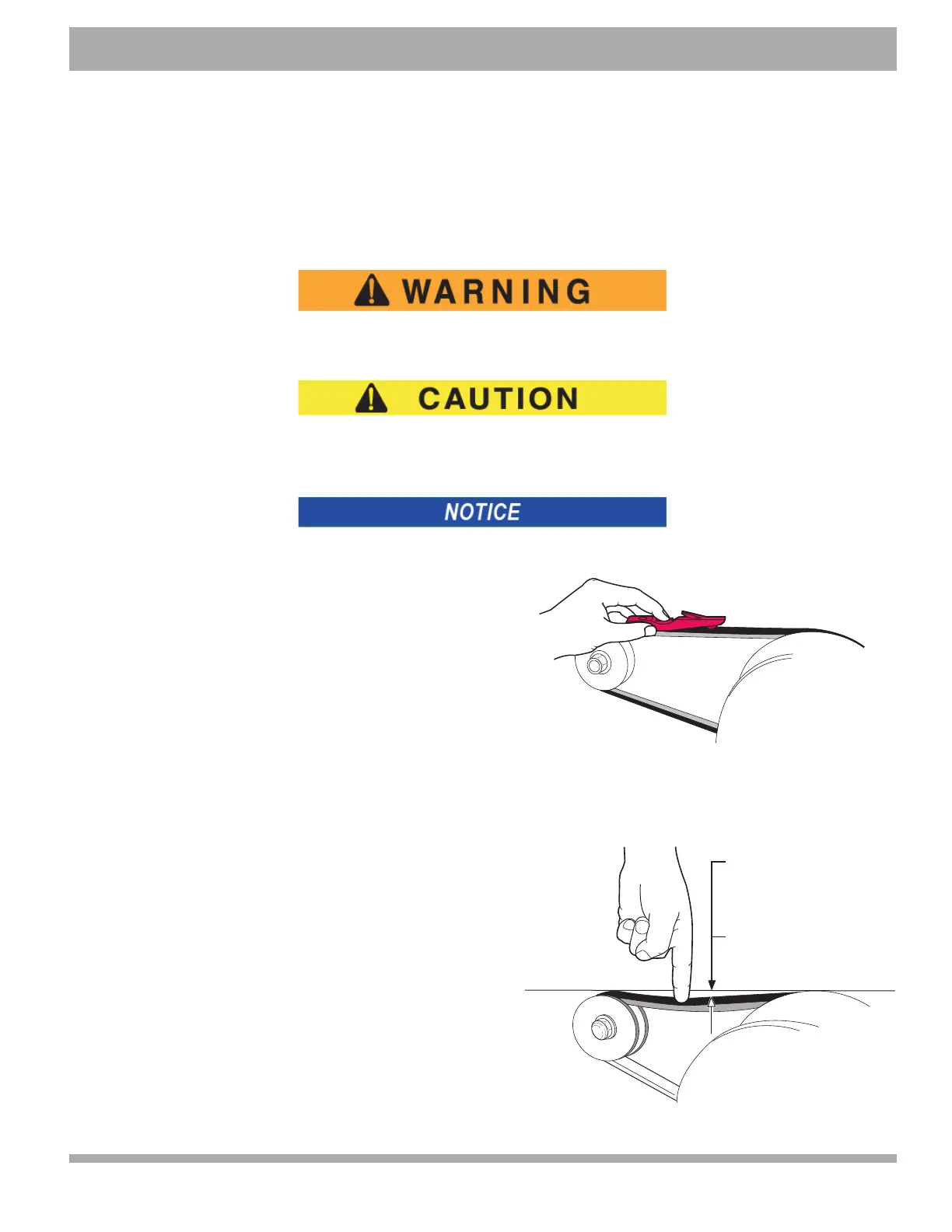

Tighten a new starter/generator belt to 110 - 130 lbs. (50 - 59
kg) tension when a gauge is applied half way between the two
pulleys. A new belt may be checked manually. A maximum
deflection of 3/8" (10 mm) is acceptable.
Tighten an existing belt to 75 - 80 lbs. (34 - 36 kg) tension using
the same technique and inspect for cracking or wear. A maxi-
mum deflection of 1/2" (13 mm) is acceptable.
3/8" (1 cm) Maximum
Deflection (New Belt)
1/2" (1.3 cm) Maximum
Deflection (Existing Belt)
To Next Page
