Mt740/745, 741/746/En/Rev. 002/12/97 * 901.742 002
BEISSBARTH MT 740/ 745, 741/ 746
1-1
TECHNICAL DATA
Wheel weight: up to 65 kg
Rim diameter: cars from 10" to 20"
Light trucks up to 17.5" Motorcycles up to 22"
Rim width: up to 13" (330 mm) Motorcycles from 2"
Max. outside diameter of wheel: 900 mm
Motor: 0.37 kW 3X220-240V/ 380-420V
Balancing speed: 285 rpm at 50 Hz
Balancing speed: 342 rpm at 60 Hz
Measuring duration: 3 sec
Noise emission value: LpA=70 dB (A)

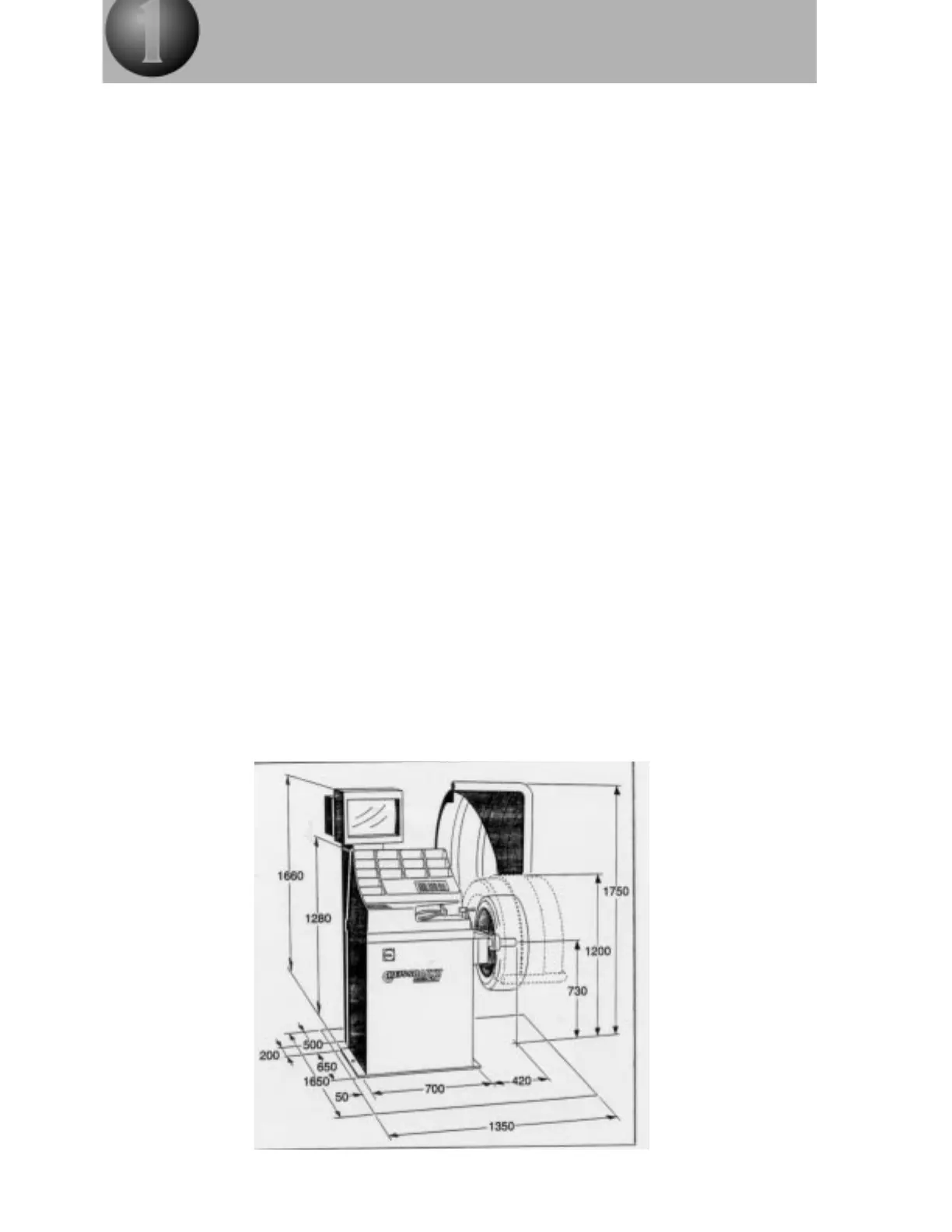

Machine dimensions: (width x height x depth) 110x1285x700mm (without safety
hood)
Required work space with safety hood: (width x depth) 1350x1650 mm Weight 110 kg
Paint: blue RAL 5015, black-grey RAL 7021
The manufacturer reserves the right to modify designs as necessary
