6. Description of the control panel - Keyboard
USE
29
26 28
3232
27 34
30
OK
31
BKSM
24
5
12/
13*
39

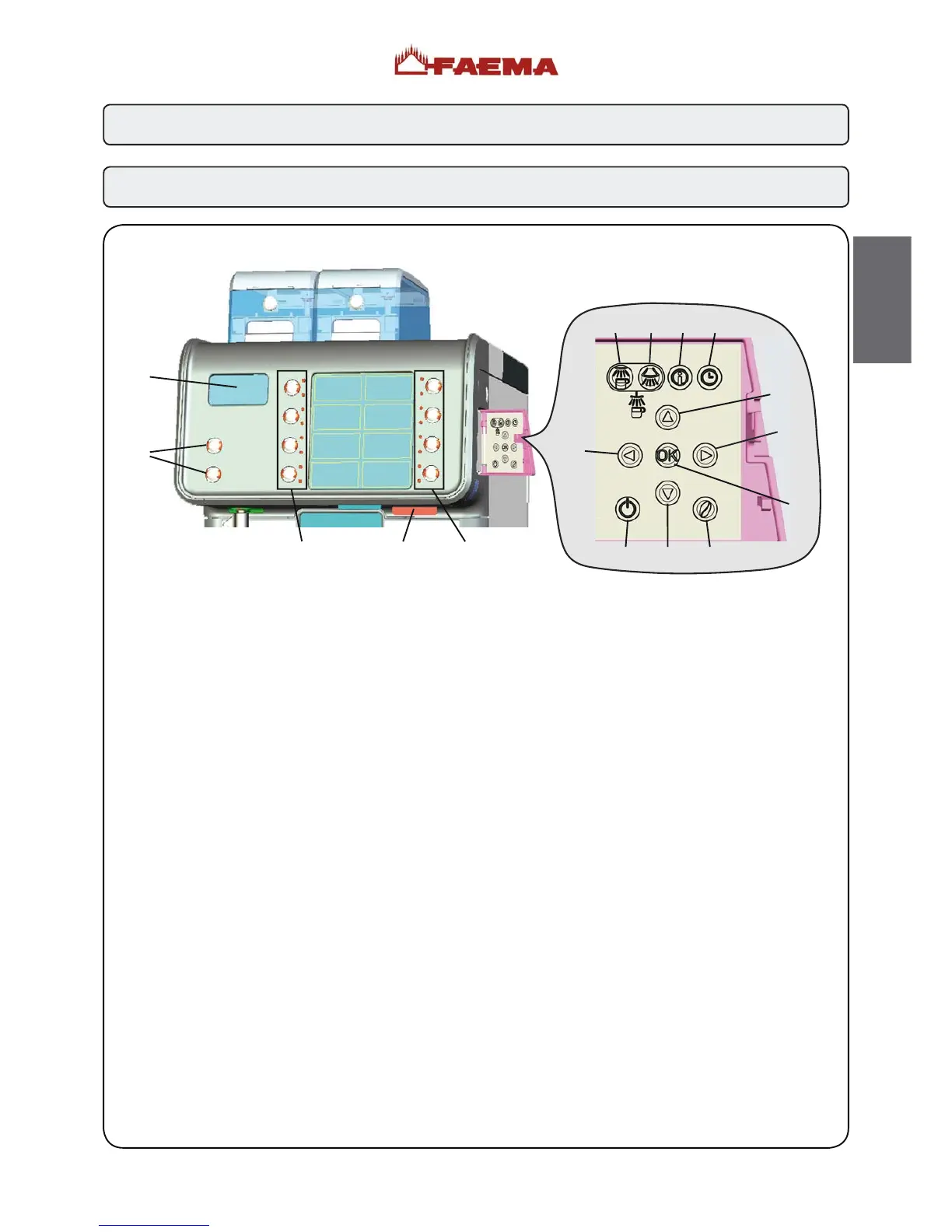

DESCRIPTION OF THE COMPONENTS
5 Graphical display
12 Hot water button
13 Steam dispensing button *
24 “RES” key (to quit programming mode)
26 Coffee circuit flushing key
27 "i" key (displays the number of cycles)
28 Milk circuit wash key - automatic wash
29 "PRG" key (to access programming mode/menu)
30 "+" key (to modify parameters/clock)
31 "-" key (to modify parameters/clock)
32 Beverage selector key
34 "CUSTOMER PARAMETERS" key
39 Card services slit (technical programming *)
BK “bean” key (coffee dose variation)
OK "OK" key (stops products from being dispensed) / Input data confirmation key
SM “Sleep mode” button
The components - * - are applied only in some produit configurations
