Connecting the Machine – Modulo BARCODE Milk + Cup

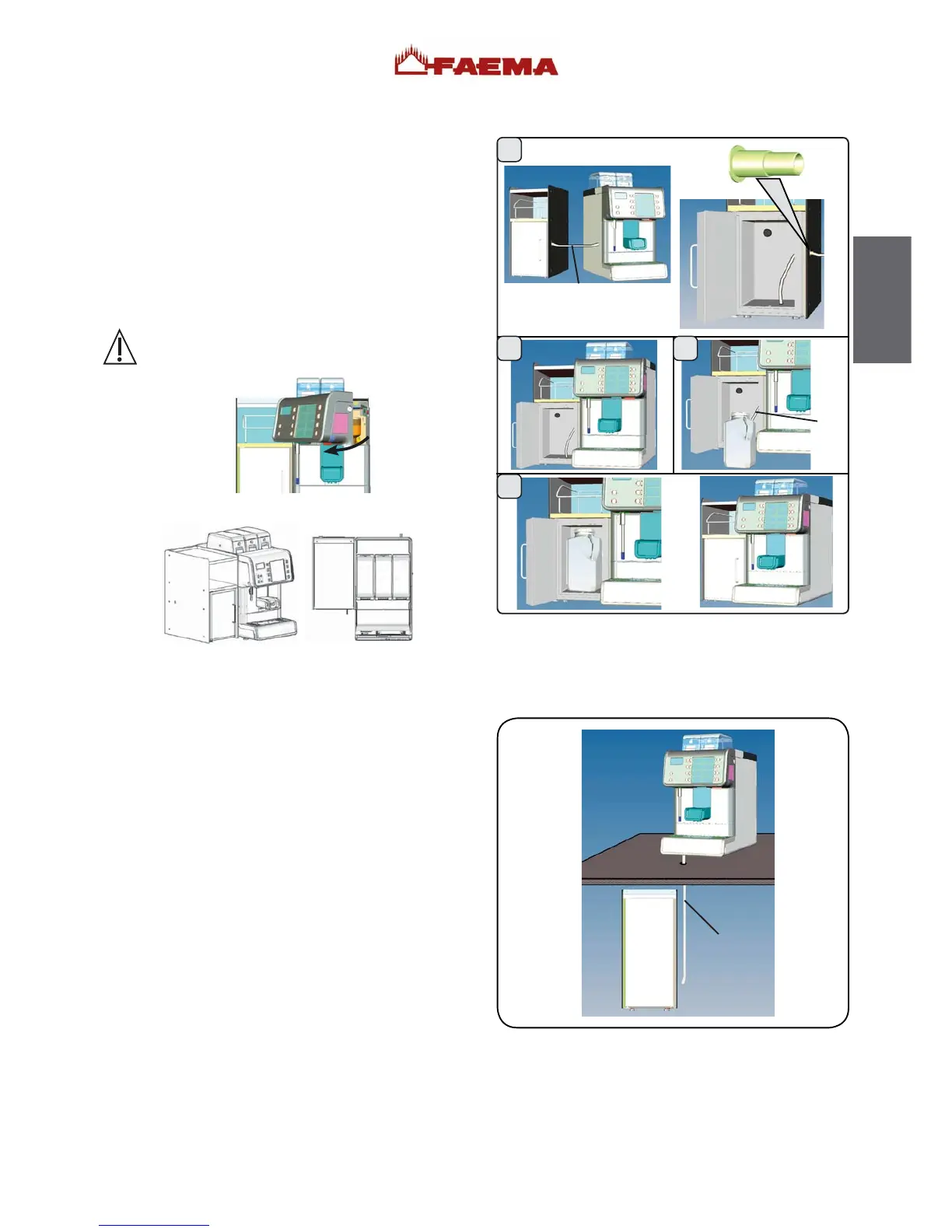

Please follow these steps to connect the MODULO BARCODE
MILK + CUP to the machine:
1) insert the milk intake tube (40), from the machine, in
the manifold (C) positioned in the specific hole of the
MODULO BARCODE MILK + CUP;
2) Place the module next to the machine as shown in the
figure. Make sure the manifold (C) is inserted in the side
hole of the machine;
3) Insert the intake tube (40) into the milk container;
4) Insert the milk container in the MODULO BARCODE MILK
+ CUP and close the door.
When placing the MODULO BARCODE MILK + CUP
next to the machine, make sure the control panel can
be opened.
The correct position is show below:
1
2 3
4
40
40
C
Connecting the machine to a generic fridge module
Besides being able to connect the machine to the MODULO
BARCODE MILK + CUP, it can also be used with a generic
milk cooler.
The position of the generic milk cooler is different from the
position of the MODULO BARCODE MILK + CUP. For
example, the illustration here shows how to connect the
machine to the milk cooler positioned underneath the machine
counter.
Note: In this case, the milk intake tube (40) comes from the
machine base and not from the side as with the MODULO
BARCODE MILK + CUP.
The installer connects the milk tube.
40
57
