Fagor 101 - Page 25

AUX MODE4
Section:Chapter: 2
Page

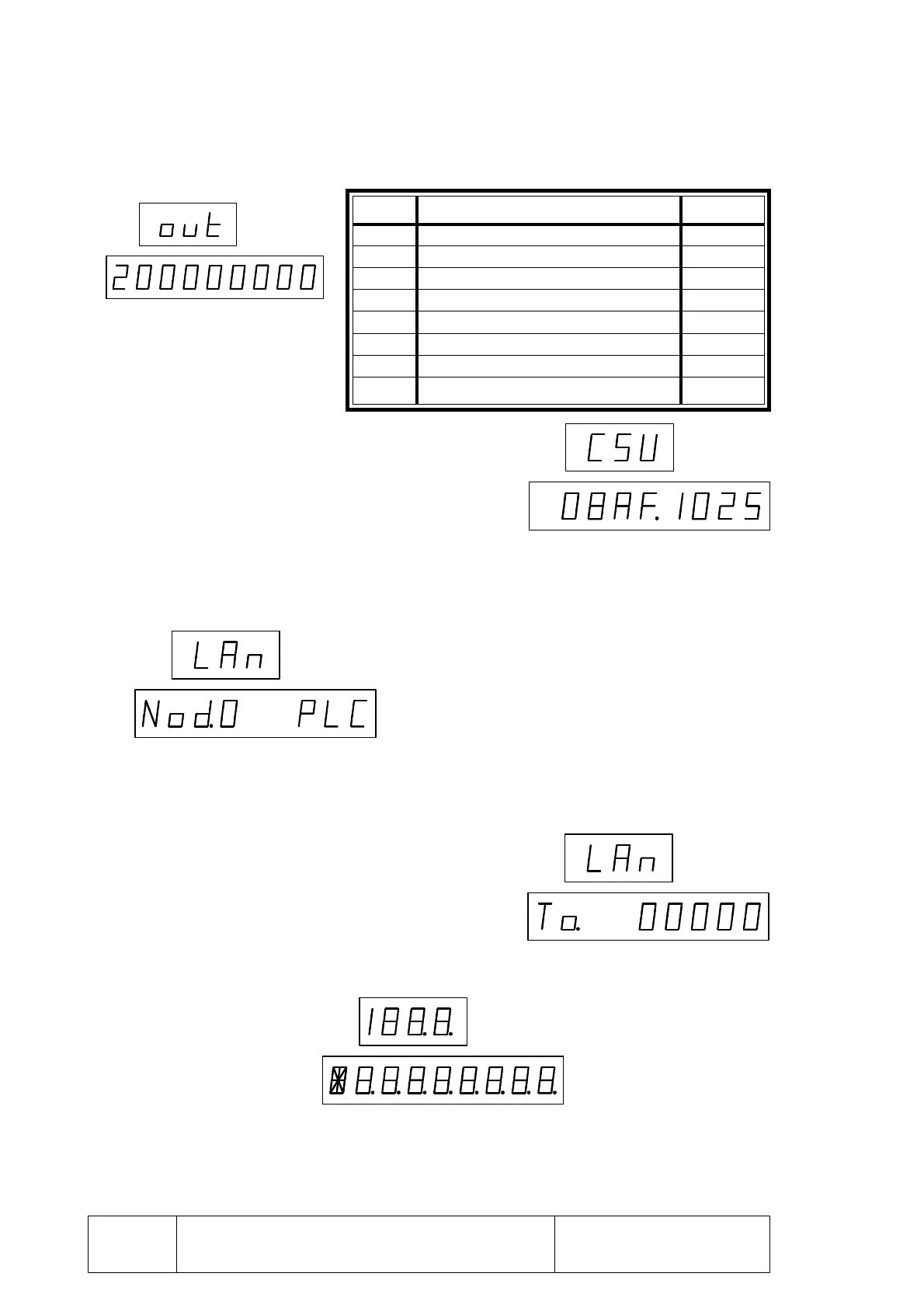

Press [A+] to show the next set outputs.
By pressing [A+] again, the CNC shows the checksum
corresponding to the software version installed on
this unit (in this example: 08AF) and the CNC model
(in this example: 102S).
If [A+] is pressed again and the CNC belongs to the Fagor LAN, the display will show the
element connected to each node. Use [A+] to scroll them.
The appearing information looks like this:
The top window displays the message "Lan" referring
to the Local Area Network.
The bottom window shows the node number (in
this case "Nod.0" and the element occupying it
(in this case: "PLC").
The CNC models: 82, 101S, 102 and 102S are considered as a single family by the
LAN. That is why they appear as "Nod.? CN82".
By pressing [A+] again and if the CNC belongs
to the Fagor LAN, the display will show the
number of lost tokens. The appearing information
looks like this:
By pressing [A+] again, the CNC lights all the LEDs indicating the end of the system
I/O test.
By pressing [A+] again, the CNC will start the system I/O test all over.
SYSTEM I/O TEST
Digit Corresponding Output Pin
8 Y axis In Position 9 (I/O 2)
7 Y axis direction (Open Loop) 8 (I/O 2)
6 Y axis Slow (Open Loop) 5 (I/O 2)
5 Y axis Fast (Open loop) 3 (I/O 2)
4 T Strobe 4 (I/O 2)
3 S Strobe 6 (I/O 2)
2 Y axis Brake 7 (I/O 2)
1 Automatic 10 (I/O 2)
