5.1.5. Operation in Parameter Setting Mode
The servodrive offers a large number of functions, which can be selected or adjusted by the parameter
settings. Refer to A.1 Parameter List for details.
• Parameter Setting Procedures.
The parameter settings can be used for changing parameter data. Before changing the data, check
the permitted range of the parameter.

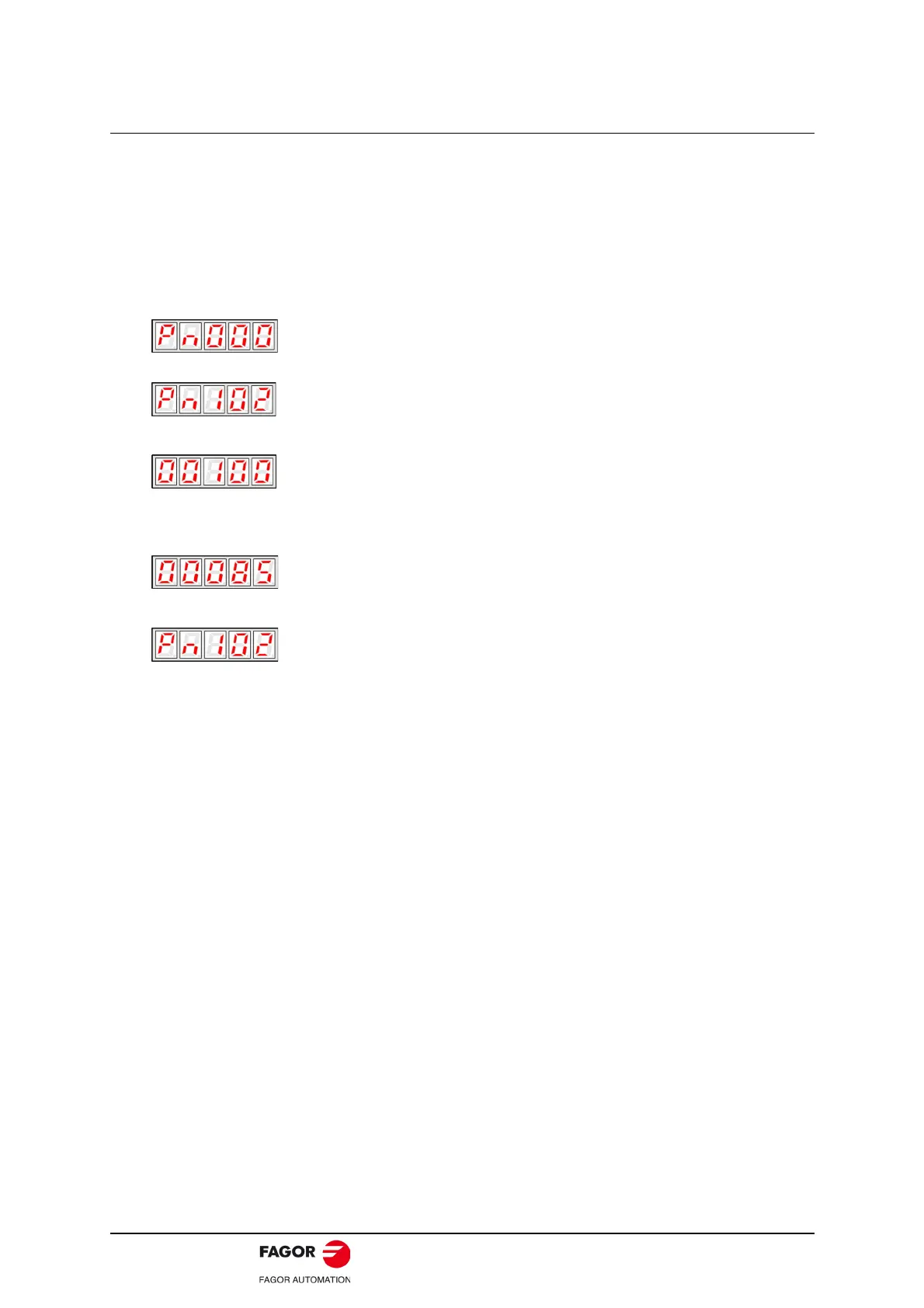

The example below shows how to change parameter Pn102 from “100” to “85”.
1. Press MODE key to select the parameter setting mode.
2. Press INC key or DEC key to select parameter number.
3. Press ENTER key to display the current data of Pn102.
4. Press the INC or DEC key to change the data to the desired number 00085. Hold the key to accelerate
the changing of value. When the maximum value or minimum value is reached, pressing INC or
DEC key will have no effect.
5. Press the ENTER or MODE key once to return to the display of Pn102.
In addition, press MODE and ENTER keys at the same time to enter into parameter number shifting
status to modify parameter number, and then execute the same action to exit parameter number
shifting status.
In step 3 and 4, press the ENTER key for longer time to enter into parameter shifting status to modify
parameter, and then press the MODE key to save and exit or press the ENTER key to return to
parameter number display.
