BCSD-24/116 Digital Brushless AC Servo Drive system - Ref. 1809

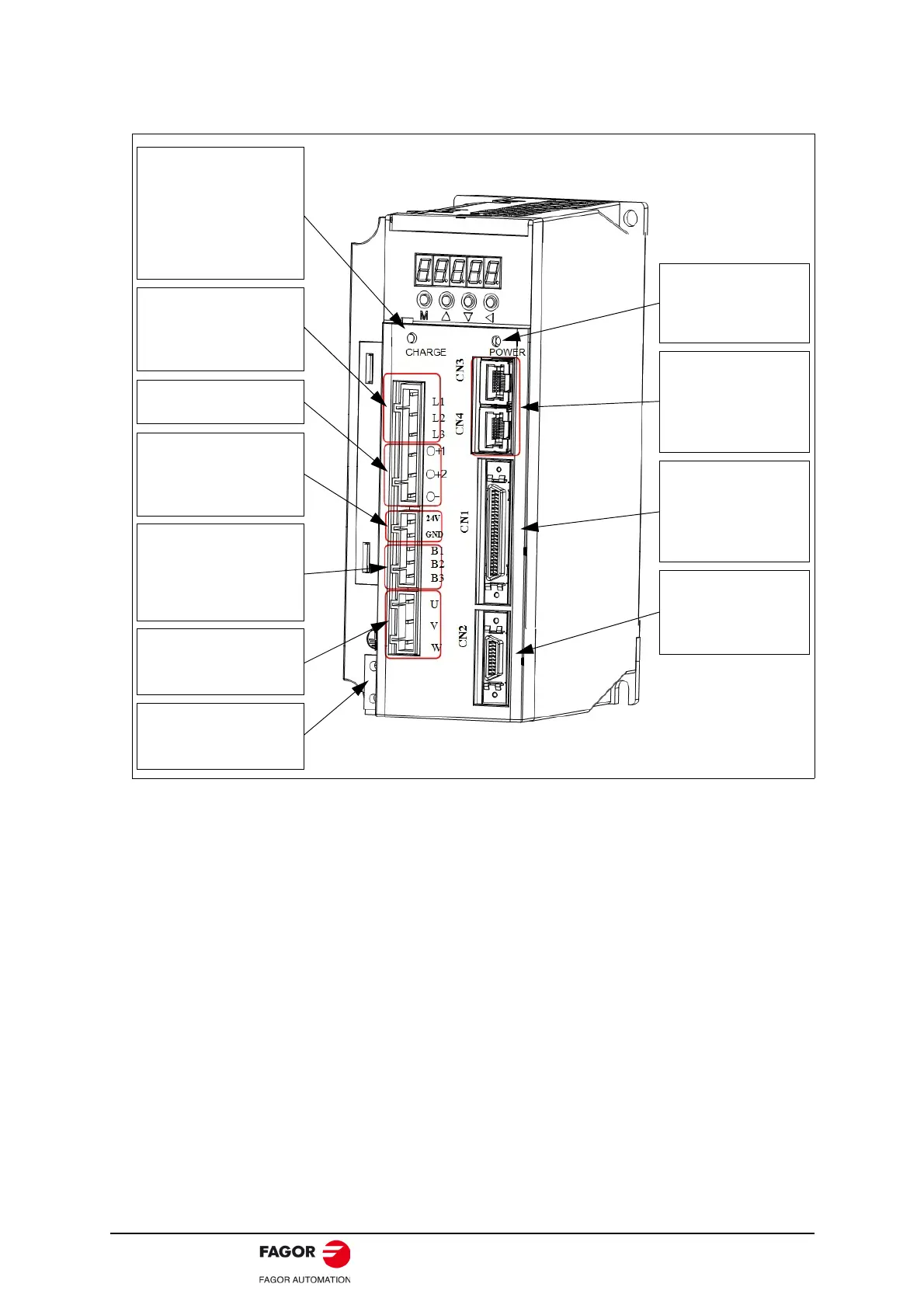

• Part name of BCSD-10D/15D/20D.
Main circuit power
supply terminals.
Used for main circuit
power supply input.
Charge indicator.
Lights when the main
circuit power supply is
ON and stays lit as long
as the main circuit power
supply capacitor
remains charged.
Connecting terminal of
DC reactor.
Control power supply
terminals.
Used for control power
supply input.
Regenerative resistor
connecting terminals.
Used to connect
external regenerative
resistors.
Servomotor terminals.
Connects to the
servomotor power line.
Ground terminal.
Be sure to connect to
protect electric shock.
Power on indicator.
Lights when the
control power supply
is on.
Connector for
communication.
Used to
communicate with
other devices.
I/O signal
connector.
Used for reference
input signals and
sequence signals.
Encoder connector.
Connects to the
encoder in the
servomotor.
