3. Installation instructions
>
14

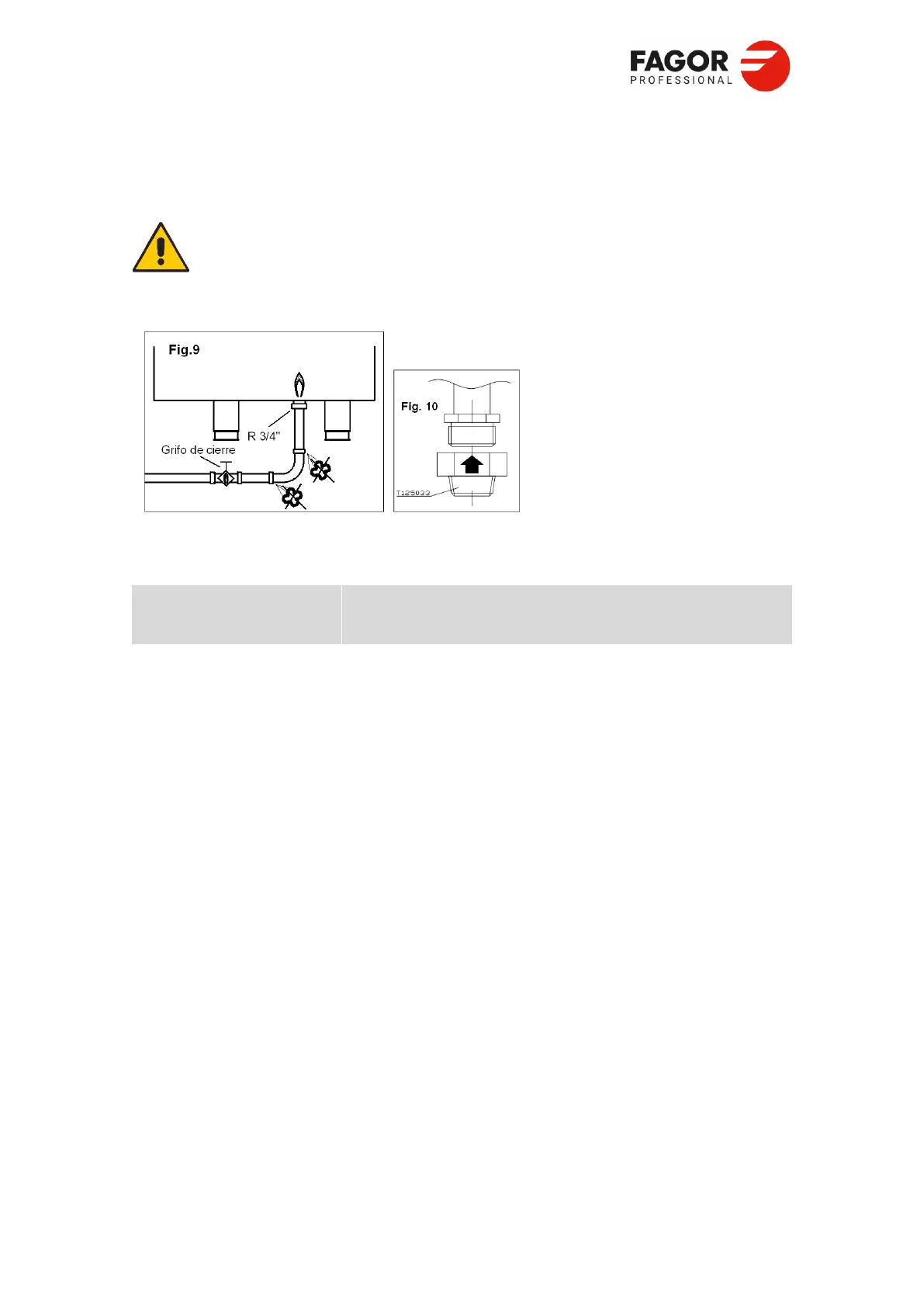

3.7 Gas connection (only gas models)
The gas connection can only be carried out by an approved gas installer.
It is essential that the gas supply
pipes and connections to the
corresponding gas meters have
the indicated ø.
After connecting the equipment,
ensure that there are no leaks
using a gas detector (spray etc.).
NEVER use a flame to check for
leaks.
Maximum consumption at rated thermal load:
Type of gas
Dynamic
pressure
required
(mbar)
Minimum
pressure
(mbar)
Maximum
pressure
(mbar)
Models
061
Models
101
Models
201
Models
102
Models
202
G-20
(m³/h)
Natural
Gas
20
17
25
1.270
1.905
3.809
3.704
6.878
G-30
(kg/h)
Butane
28-30
25
35
0.998
1.498
2.995
2.912
5.408
G-31
(kg/h)
Propane
37
42.5
57.5
0.984
1.476
2.951
2.869
5.329
The air required for combustion is 2 m
3
/h per kW of power.
Observations:
• Observe the regulations of the gas supply company.
• Observe the installation instructions.
• Check that the gas indicated on the appliance is identical to that supplied.
• A pipe with a minimum diameter of Ø12x10mm and a ¾" nut must be used for connecting
the gas to the equipment.
• The gas shut-off tap is located on the front of each appliance.
