CNC 8055 / CNC 8055i
Detected errors
V
ERSION
7.11
1 Detected errors

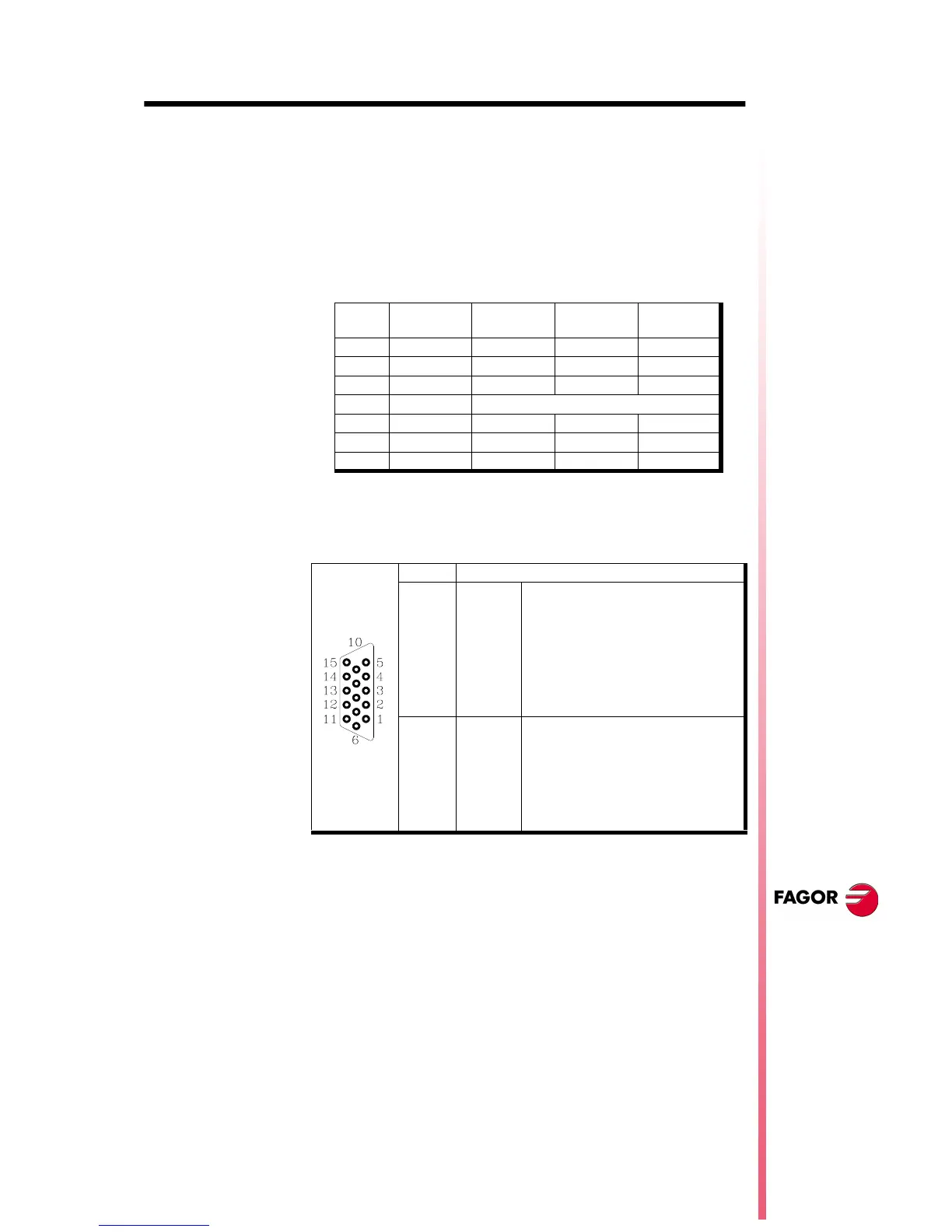

A.m.p. DFORMAT (P1)
The installation manual shows wrong work units. The right work units
are:
Connector X4. To connect the analog spindle (8055i model)
The installation manual shows the wrong function associated with
pins 11 and 12. The right pin values are:
It admits TTL and differential TTL feedback.
Connector X5. To connect electronic handwheels (8055i model)
It admits TTL and differential TTL feedback.
Connector X10, X11, X12 and X13. Feedback inputs for the axes (8055i model)
It admits 1Vpp, TTL and differential TTL feedback.
Value Work units Format in
degrees
Format in
mm
Format in
inches
0 radius 5.3 5.3 4.4
1 radius 4.4 4.4 3.5
2 radius 5.2 5.2 5.3
3 radius It is not displayed
4 diameters 5.3 5.3 4.4
5 diameters 4.4 4.4 3.5
6 diameters 5.2 5.2 5.3
Pin Signal and Function
1
2
3
4
5
6
7
8
Ac
/ Ac
Bc
/ Bc
I0c
/ I0c
ALc
/ ALc
Feedback signals
9
10
11
12
13
14
15
+5 V
ConsCab
GND
GND
----
----
Chassis
+5V output for feedback
Analog voltage output
0V output for feedback
0V output for the analog voltage
Shield
