AC Brushless Servo Drive System Manual Ver: 0002
ACa - 4 / 32
Preliminary

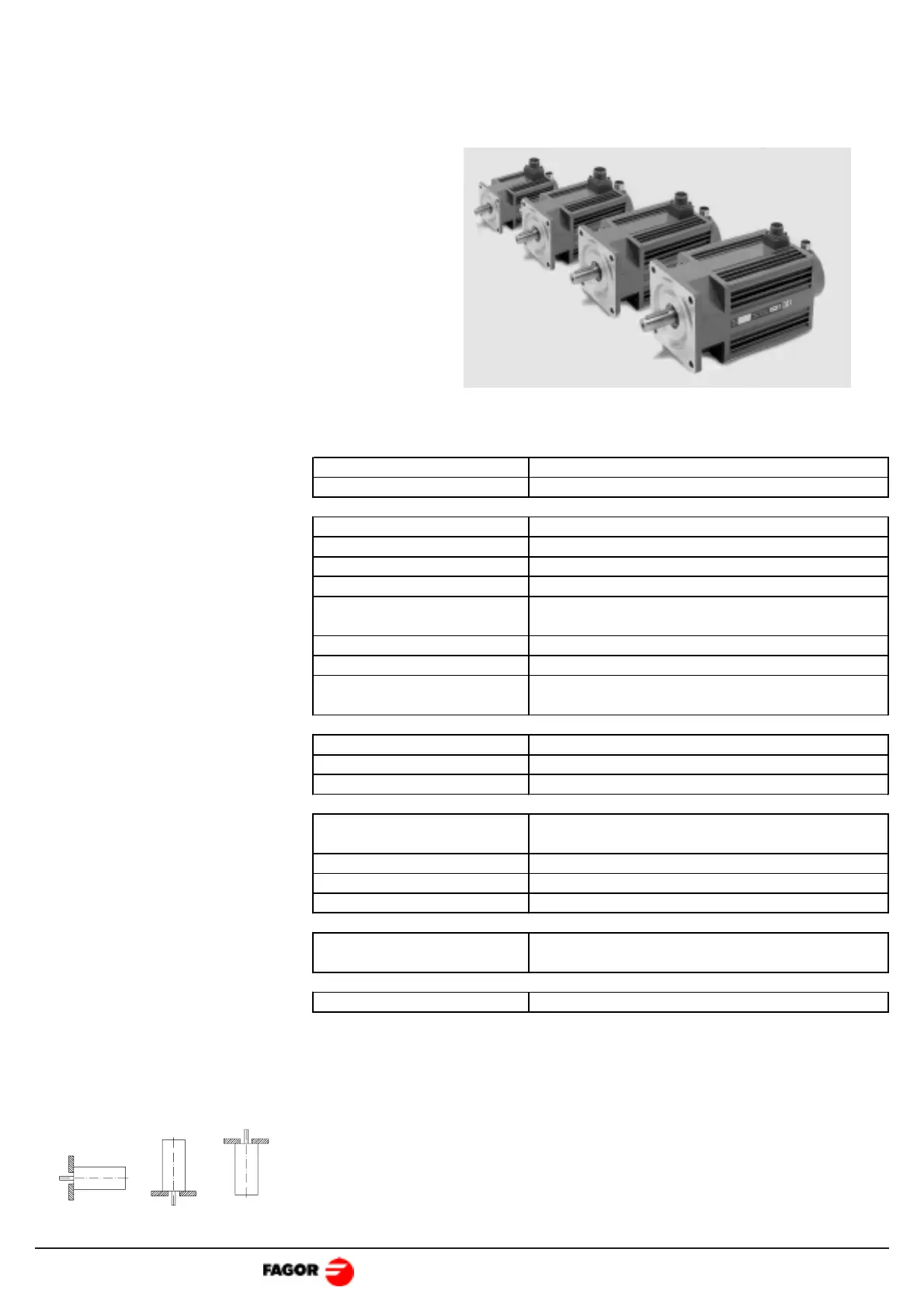

1.1 INTRODUCTION
FXM series synchronous servo motors
are AC Brushless, with permanent
magnets.
They are ideal for any application
requiring great positioning accuracy.
They have a smooth torque output, has
no brushes, high reliability and low
maintenance.
Brushless AC Motors, FXM
- Meaning of the
mounting codes.
- IP64 means that it is protected against dust and against
water jets.
- The F class isolation on the motor maintain the dielectric
properties as long as the work temperature stays below
155°C (311°F).
FXM1 FXM3 FXM5 FXM7
Its normal protection level
is IP64, being immune to
liquids and dirt.
The system incorporates a
temperature sensor for
monitoring the internal
temperature. They also
carry an optional
electromechanical brake.
B5 V1 V3
Excitation Permanent rare earth magnets (SmCo)
Temperature sensor Thermistor
Shaft end Cylindrical with keyway. (Option: with no keyway)
Mounting Face flange
Mounting method B5-V1-V3 (as recommended by IEC-34-3-72)
Mechanical tolerances Normal class (IEC-72/1971)
Balancing Class N (Class R optional) (DIN 45665)
(balanced with the whole key)
Roller bearings' life 20,000 hours
Noise DIN 45635
Vibration resistance Withstands 1G along the shaft
and 3G sideways (G = 10 m/s² ).
Electrical Insulation Class F (155°C) (311°F)
Isolating resistance 500 Vdc, 10 MOhms or greater
Dielectric Strength 1500 Vac, one minute
Degree of Protection Overall: IP64 standard, IP54 with fan
Axis: IP64 standard, IP65 with oil seal
Storage temperature From -20°C to +80°C (-4°F / 176°F)
Working ambient temp. From 0°C to +40°C (32°F / 74°F)
Working ambient humidity From 20% to 80% (non condensing)
Brake Optional on all models
See "Brake Characteristics"
Feedback Differential TTL Encoder
