AC Brushless Servo Drive System Manual Ver: 0002
ACa - 8 / 32
Preliminary

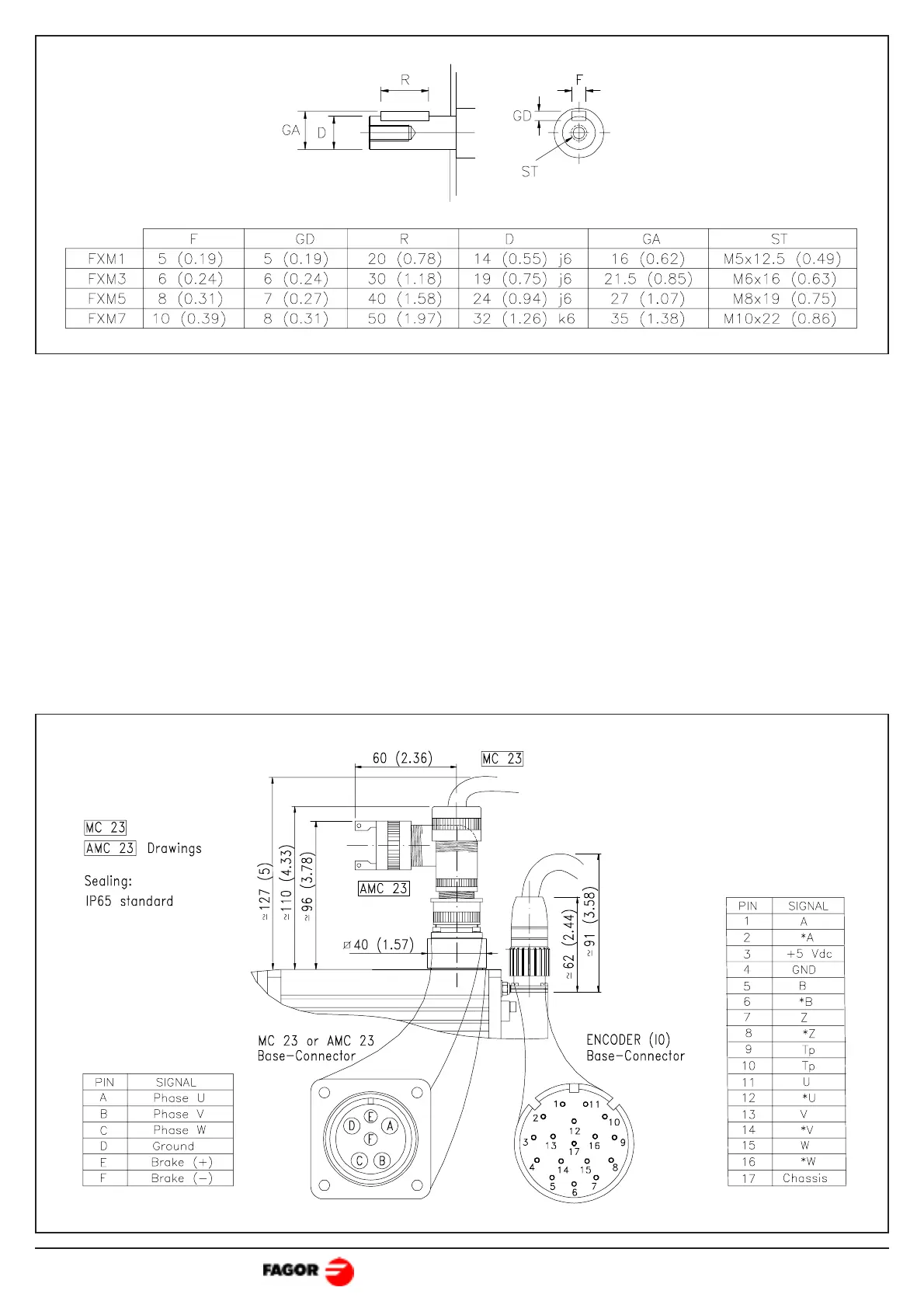

The power connector includes the brake terminals (E, F). Voltages between 22 and 26 volts
release the shaft. When installing the motor, verify that the brake releases the shaft completely
before turning it for the first time.
Connecting the motor windings in the order indicated on the connector (U, V, W), the shaft will
turn clockwise (CWR).
Encoder connector's terminals 9 and 10 correspond to the thermistor. It watches the motor
heating.
1.3 POWER CONNECTORS AND ENCODER OUTPUT
