ANTI TILT BRACKET MUST BE FITTED ON THIS UNIT
6.2 ELECTRIC SUPPLY & CONNECTION
The location of the electrical inlet is as seen in section 5.0. this unit is suitable for AC
supplies only. The standard terminal arrangement is Three phase (400V 3N~) for all
variants.
Install an appropriate three phase mains supply cable rated to at least 80°C with a 32A plug.

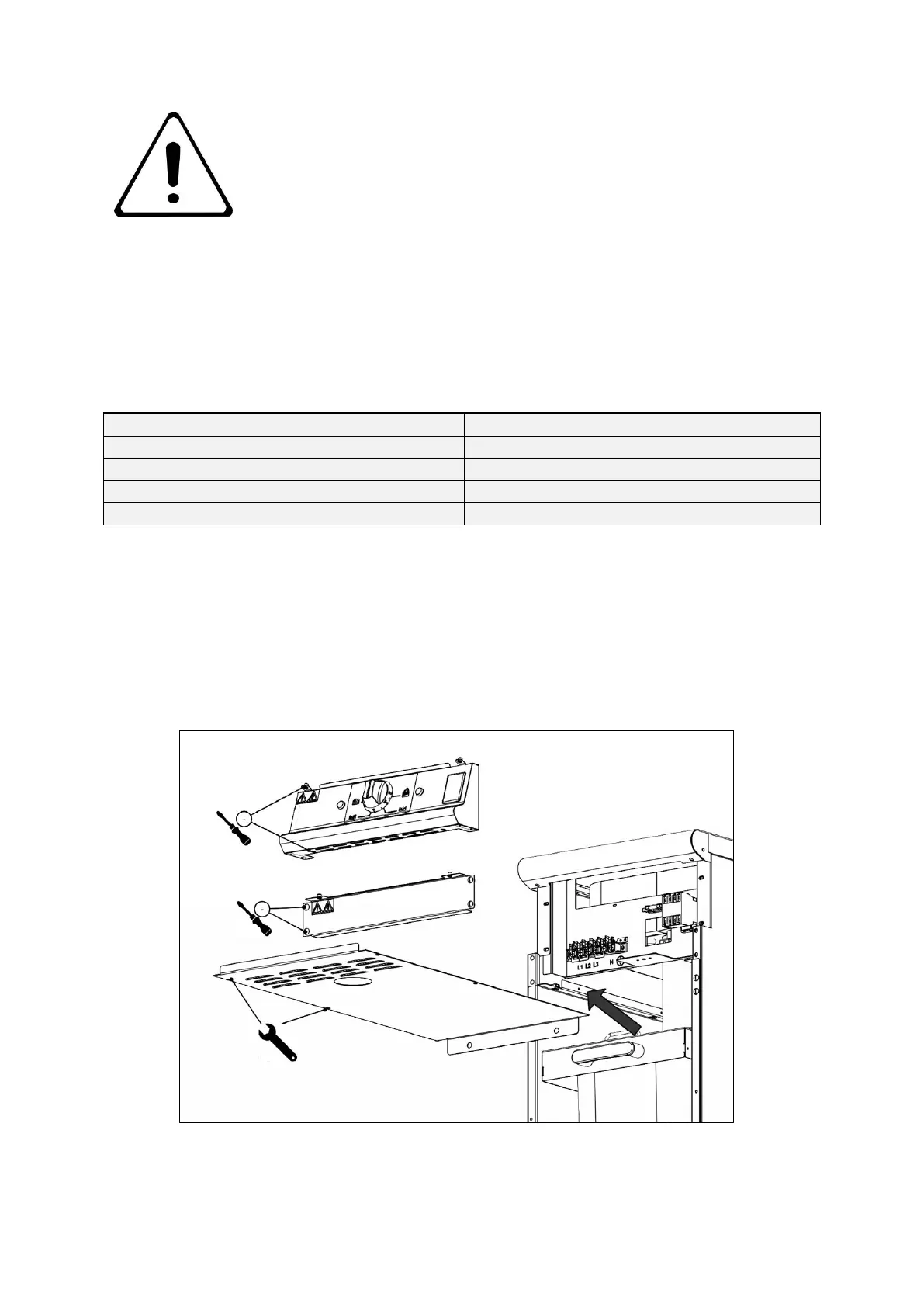

To install the mains cable, remove control panel, infill panel and inner top panel as shown
and feed mains supply through cable gland at the rear. Keep the cable to the outside of the
flange marked and cable tie to the flange. Connect the mains supply to the terminal block.
