WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON
Disconnect from electricity before servicing. Check appliance is safe when you have nished.
38
ArtNo.320-0002a Proplus oven door side screws
ArtNo.320-0006 Oven door hinge adjustment 1
ArtNo.320-0007 Oven door hinge adjustment 2
For either oven, feed the thermostat capillary out of
the oven. Disconnect the wiring from the thermostat.
Remove the 2 screws holding the thermostat to the
mounting panel. Fit the new thermostat and reassemble
in reverse order. Make sure that the phial is clipped
to the oven back with the phial centrally positioned
between the clips.
Remember to ret the earthing plate.
Check the operation of the thermostat.
6 Doors
6.1 To Remove the Grill Door
Remove the left-hand side panel (see 1.2). Remove
the plinth (4 screws) and the central vertical cover
(5screws). Remove the 2 countersunk screws (1 each
side) securing the grill hinge arms to the front of the
grill chamber.
Note: The arms are spring tensioned. Carefully remove
the grill door. Retain the gaskets.
Reassemble in reverse order, making sure that the
gasket is tted between the hinge arm and the front of
the grill chamber.

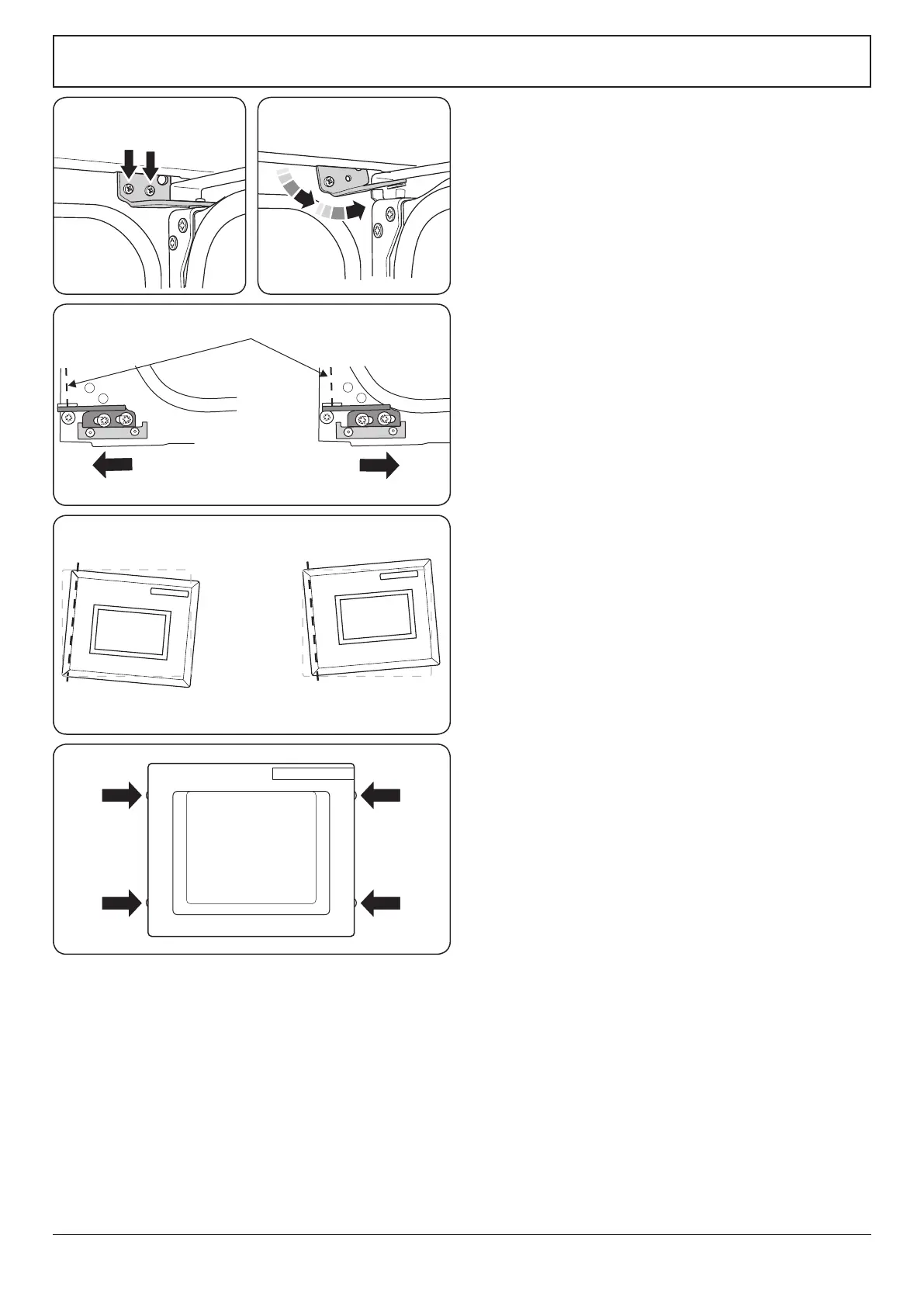

6.2 To Replace the Main Oven Door
Open the oven door. Support the door and loosen the
2 screws securing the upper hinge and gasket to the
cooker front (Fig. 9.6).

The door is heavy, so take care.
Support the door and remove the screw nearest the
hinge pin (Fig. 9.7). Swing the hinge up and away from
the door hinge pin. Lift the door away from the lower
hinge and remove.
Reassemble in reverse order.
6.3 To Adjust the Main Oven Door Angle
The bottom hinge of either oven door can be adjusted
to alter the angle of the door (Fig. 9.8). Loosen the
bottom hinge xing screws and use the notch and a at
bladed screwdriver to move the position of the hinge to
set the hinge position (Fig. 9.9).
Retighten the hinge screws.
6.4 Main Oven Door Glass
The glass on the oven door is not replaceable.
6.5 To Replace an Oven Door Outer Panel
Move the cooker forwards to gain access to the sides.
Open the oven door slightly and remove the 4 front
panel xing screws from the door sides (2 each side),
(Fig. 9.10). Carefully lift o the outer door panel.
Remove the door handle from the panel by unscrewing
the 2 retaining nuts.
Fit the door handle to the new panel.
Fit the panel to the door. Reassemble in reverse order.
Fig. 9.9
Fig. 9.10
ArtNo.320-0001 Door hinges
1
ArtNo.320-0001 Door hinges
2
Fig. 9.8
Eect of hinge adjustment – exagerrated for clarity
Fig. 9.7
Centreline of hinge pin
Oven door omitted for clarity
Fig. 9.6
