Operating Guidelines
Which CABLES Should Be Used?
Expression Pedal Ports 1-4
Your controller comes with four (4) expression pedal ports. Any pedal wired for expressional pedal usage (TRS Stereo
cable). Any standard POT in the range of 5k – 25k should work fine. Proper wiring will have the wiper (center of POT)
connected to TIP of TRS plug. The Sleeve will be on the lower (heel position) and the ring will be in the upper (toe
position).

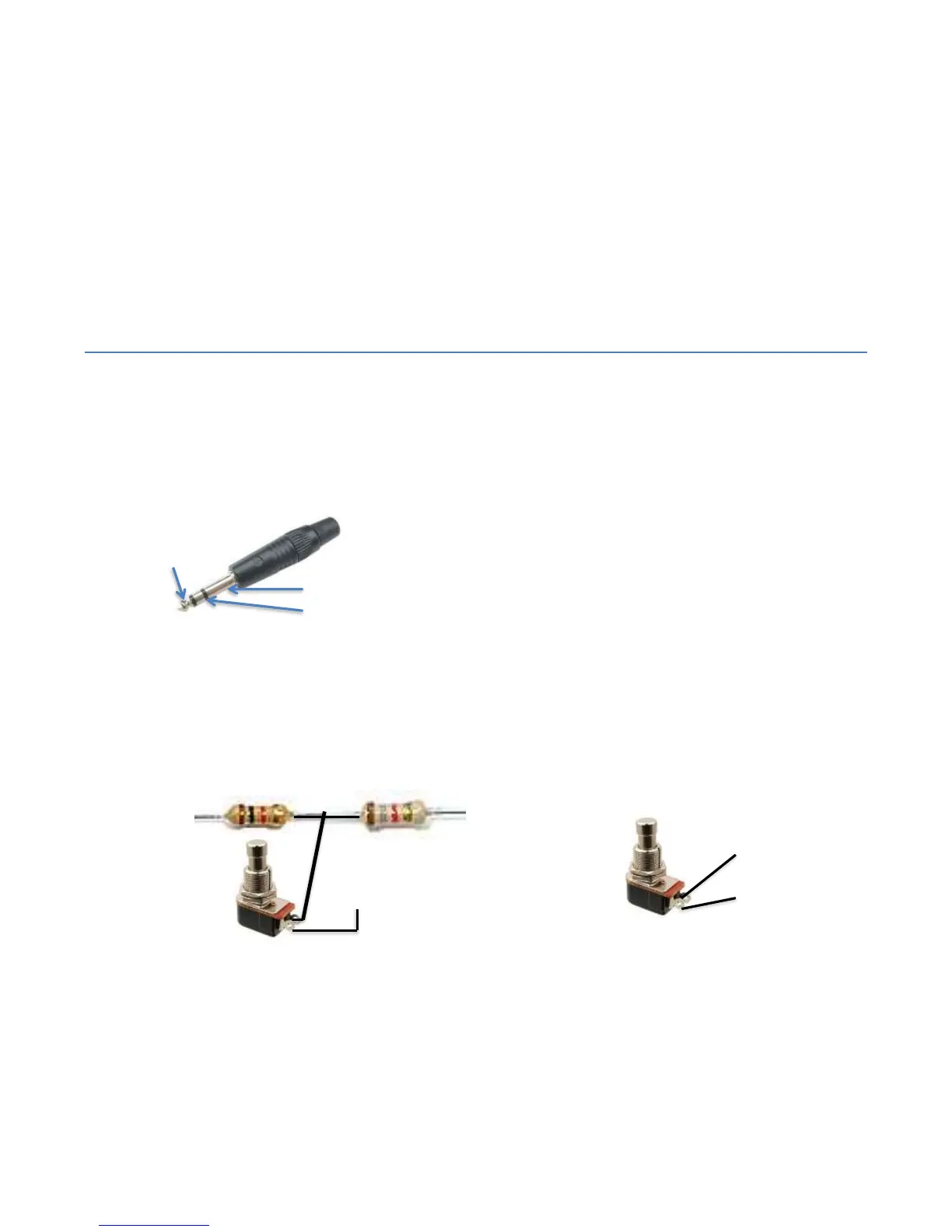

Wiper(T)
Heel position (lower end of POT)(S)
Toe position (upper end of POT)(R)
[Plug to expression pedal]
If you are using the expression pedal as a button, then you can either use a standard a standard button (connecting Tip
to Sleeve momentarily during the button press). There are many buttons on the market that are fully compatible with
the LF+ port.
You may also set an expression pedal port to process two buttons. Both buttons should be connected to the same plug
and wired together as follows:
1K ohm Resistor 1.8K ohms Resistor
RING(R) Sleeve (S)
SLEEVE (S)
TIP(T) TIP (T)
